Gear Case Lubrication (cont.)

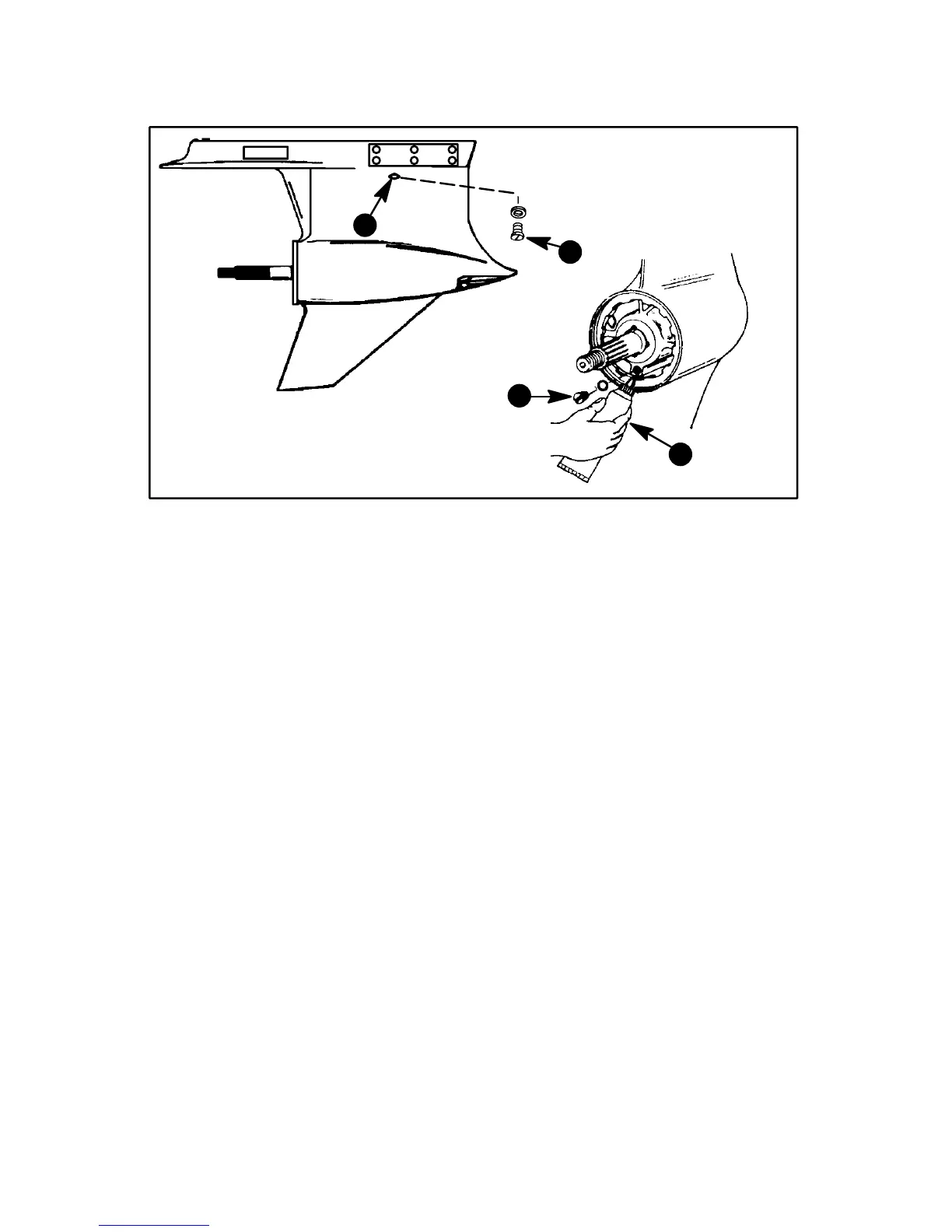

CHECKING GEAR CASE LUBRICANT LEVEL AND REFILLING
GEAR CASE
5 Place outboard in a vertical operating position.
6 Remove fill plug/sealing washer (a) and top vent plug/sealing
washer (c).
7 Place lubricant tube (b) into the fill hole and add lubricant until it
appears at the vent hole (d).
IMPORTANT: Replace sealing washers if damaged.
8 Stop adding lubricant. Install the top vent plug and sealing wash-
er (c) before removing the lubricant tube.
9 Remove lubricant tube and reinstall cleaned fill/drain plug and
sealing washer (a).
ohr1
Submerged Outboard
A submerged outboard will require service within a few hours by an
authorized dealer once the outboard is recovered from the water.
This immediate attention by a servicing dealer is necessary to mini-
mize internal corrosion damage to the engine once the engine is ex-
posed to the atmosphere.

Mercury XR2 Specifications

General

MODEL	XR2
Horsepower	180 (134kw)
Propshaft Kilowatts1	194
Full Throttle RPM Range	6000-7000
Idle RPM in Forward Gear	650-750
Maximum Timing	25° BTDC
Idle Speed Pickup Timing	2° ATDC
Gear Ratio	1.87:1
Piston Displacement	122 cu. in. (2.0L/1998cc)
Bore	3.125 in. (79.5 mm)
Stroke	2.65 in. (67 mm)
Firing Order	1-2-3-4-5-6
Recommended Spark Plug	NGK-BUHW (P/N 33-97180)
Fuel Pressure	5 - 6 psi
Recommended Gasoline	Refer to Fuel Section
Recommended Oil	Refer to Fuel Section
Recommended Gear Case Oil	Quicksilver Hi-Performance Gear Lube (92-816026A4)
Gear Case Lubricant Ca- pacity	22.5 fl. oz. (666 ml)
Charging System Output	16 amps @ 7000 RPM
Battery Rating	Minimum reserve capacity rating of 100 minutes and CCA of 350
Water Pres. @ WOT	15 PSI (103.4 kPa)

Weight and Dimensions

Weight	350 lbs. (159 kg)
Transom Height	Short Shaft = 15” (381mm) Long Shaft = 20” (508mm)
