MAINTENANCE
5
6
4
5a
b
Lubrication Points (Continued)
WARNING
!
The end of the steering cable must be fully retracted into the
outboard tilt tube before adding lubricant. Adding lubricant to
steering cable when fully extended could cause steering cable
to become hydraulically locked. An hydraulically locked
steering cable will cause loss of steering control, possibly re-
sulting in serious injury or death.
LUBRICATE POINTS 4 AND 5 WITH QUICKSILVER 2-4-C MA-
RINE LUBRICANT OR SPECIAL LUBRICANT 101.

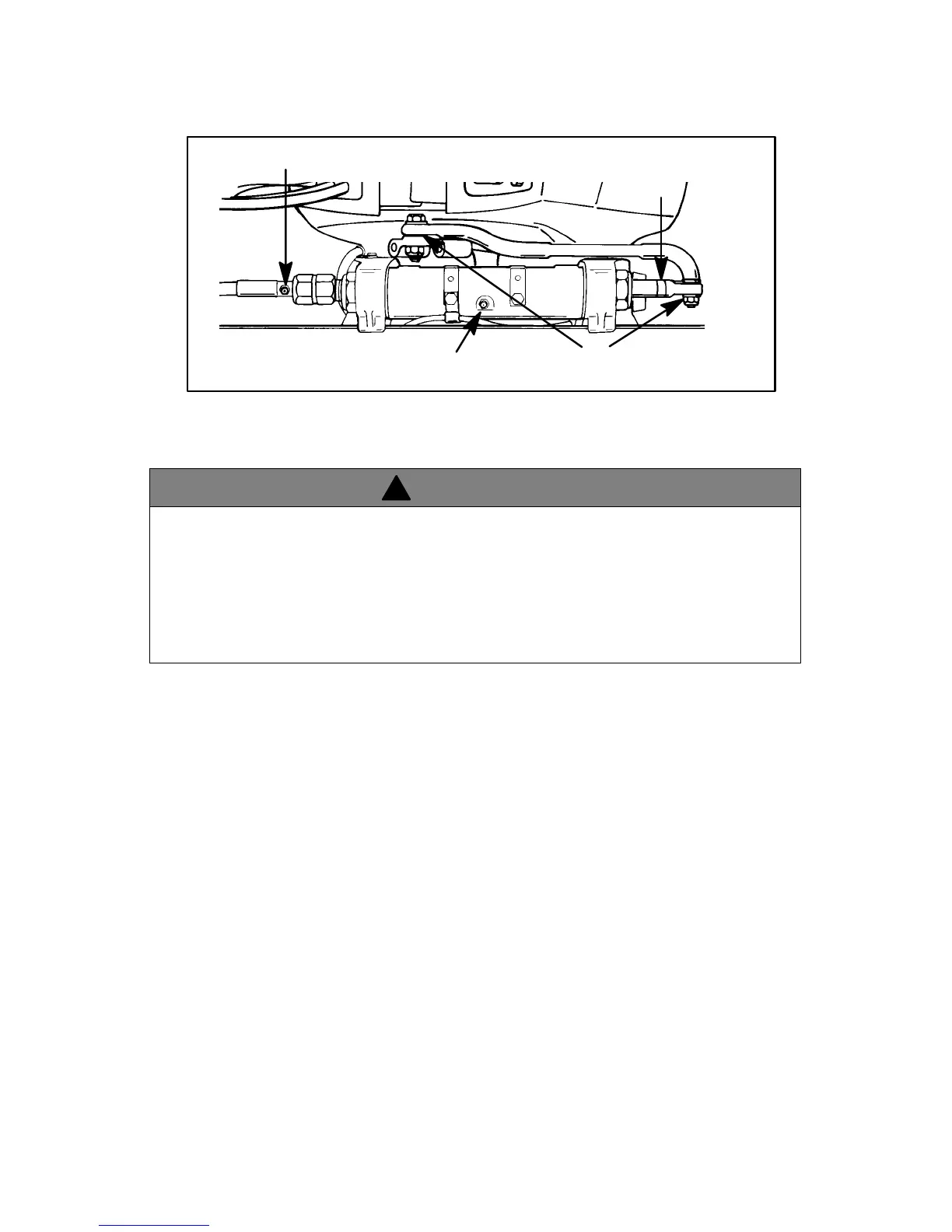

4 Tilt Tube – Lubricate through fitting.
5 Steering Cable – Rotate steering wheel to fully retract the steer-
ing cable end (a) into the outboard tilt tube. Lubricate through fit-
ting (b).
LUBRICATE POINT 6 WITH LIGHT WEIGHT OIL.
6 Steering Link Rod Pivot Points – Lubricate pivot points.

Mercury XR2 Specifications

General

MODEL	XR2
Horsepower	180 (134kw)
Propshaft Kilowatts1	194
Full Throttle RPM Range	6000-7000
Idle RPM in Forward Gear	650-750
Maximum Timing	25° BTDC
Idle Speed Pickup Timing	2° ATDC
Gear Ratio	1.87:1
Piston Displacement	122 cu. in. (2.0L/1998cc)
Bore	3.125 in. (79.5 mm)
Stroke	2.65 in. (67 mm)
Firing Order	1-2-3-4-5-6
Recommended Spark Plug	NGK-BUHW (P/N 33-97180)
Fuel Pressure	5 - 6 psi
Recommended Gasoline	Refer to Fuel Section
Recommended Oil	Refer to Fuel Section
Recommended Gear Case Oil	Quicksilver Hi-Performance Gear Lube (92-816026A4)
Gear Case Lubricant Ca- pacity	22.5 fl. oz. (666 ml)
Charging System Output	16 amps @ 7000 RPM
Battery Rating	Minimum reserve capacity rating of 100 minutes and CCA of 350
Water Pres. @ WOT	15 PSI (103.4 kPa)

Weight and Dimensions

Weight	350 lbs. (159 kg)
Transom Height	Short Shaft = 15” (381mm) Long Shaft = 20” (508mm)
