Mercusys MW300RE User Guide

MW300RE
300Mbps Wi-Fi Range Extender

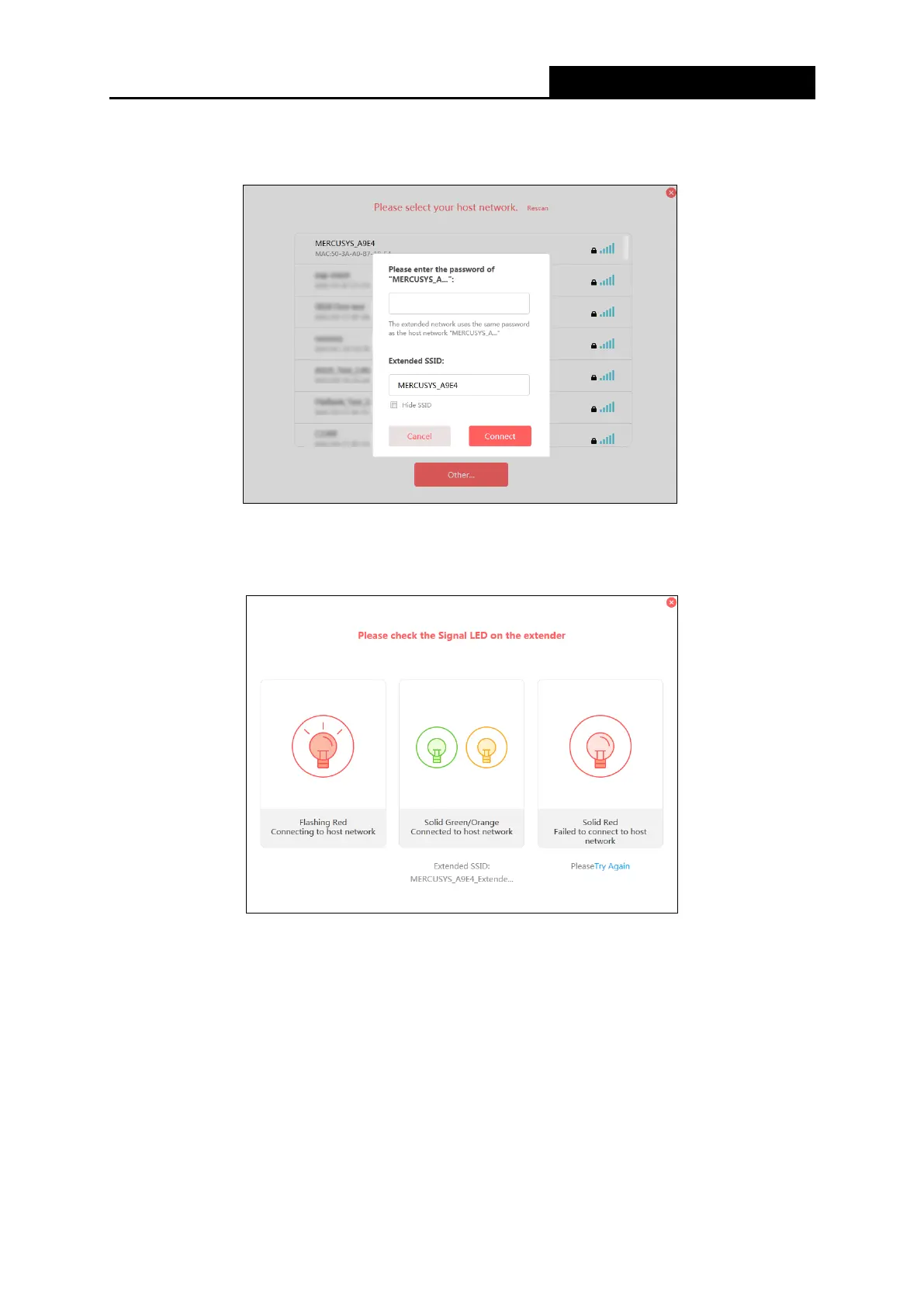

4) Enter the network password when prompted, then click Connect. You can also
customize the extended network name on this page.
5) Check the Signal LED on your extender. Green or orange LED indicates a successful
connection.
3. Relocate the extender.
1) Plug the extender into an electrical outlet between your host router and the Wi-Fi
“dead“ zone. The location you choose must be within the range of your existing host
network.
2) Wait until the Signal LED is lit and solid green. If it’s not, relocate it closer to the host
router to achieve better signal quality.
- 6 -

Mercusys MW300RE Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE
Product color	White
LED indicators	Yes
Sustainability certificates	RoHS
Antenna type	External
Antennas quantity	3
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi data rate (max)	300 Mbit/s
Power consumption (max)	4.3 W
Power consumption (typical)	3 W
Type	Network repeater
Maximum transfer distance	- m
Package depth	121.5 mm
Package width	150.5 mm
Package weight	250 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	74.8 mm
Width	101 mm
Height	75.8 mm
