Page 13
Note: The back panel of the stereo version (ST2) is identical to the MC8 with the exception that it only has 2 sets of
balanced and unbalanced analogue outputs instead of 8.

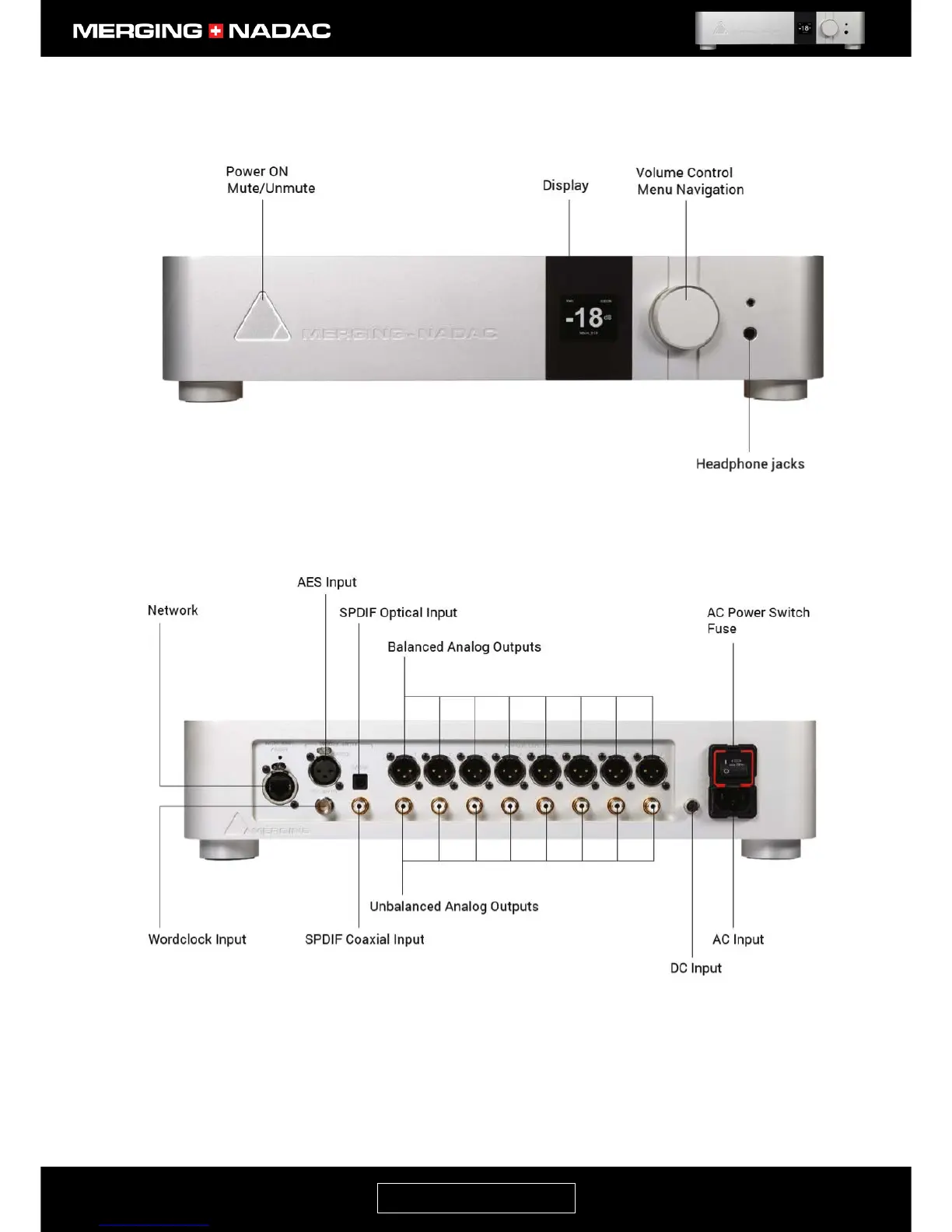

Figure 6. MERGING+NADAC (MC8) back panel detail.
Figure 5. MERGING+NADAC front panel detail.
