Revised 06.2021 4-9
Owner’s Manual: Smoothwall Bin
41108 18ftbin wAirmax
PROJECT/CUSTOMER NAME:
24" AIRMAX 360 18' BIN
DESCRIPTION:
COMMON BIN COMPONENTS
A
PART/DRAWING NUMBER:
REV:
2021-03-01
SHEET No:
BP DS
DRAWN BY DATE:DRAWN BY:
1 OF 1
WWW.MERIDIANMFG.COM
CHECKED BY:
XXX
MATERIAL
:
THIS DRAWING IS THE EXCLUSIVE PROPERTY OF MERIDIAN
MFG INC. DUPLICATION BY ANY MEANS IS PROHIBITED
WITHOUT PERMISSION FROM MERIDIAN MFG INC.
WEIGHT:
N/A
PROCESS:
A TS
REVISION HISTORY
REV DESCRIPTION DATE DESIGNER
QTY REQUIRED:

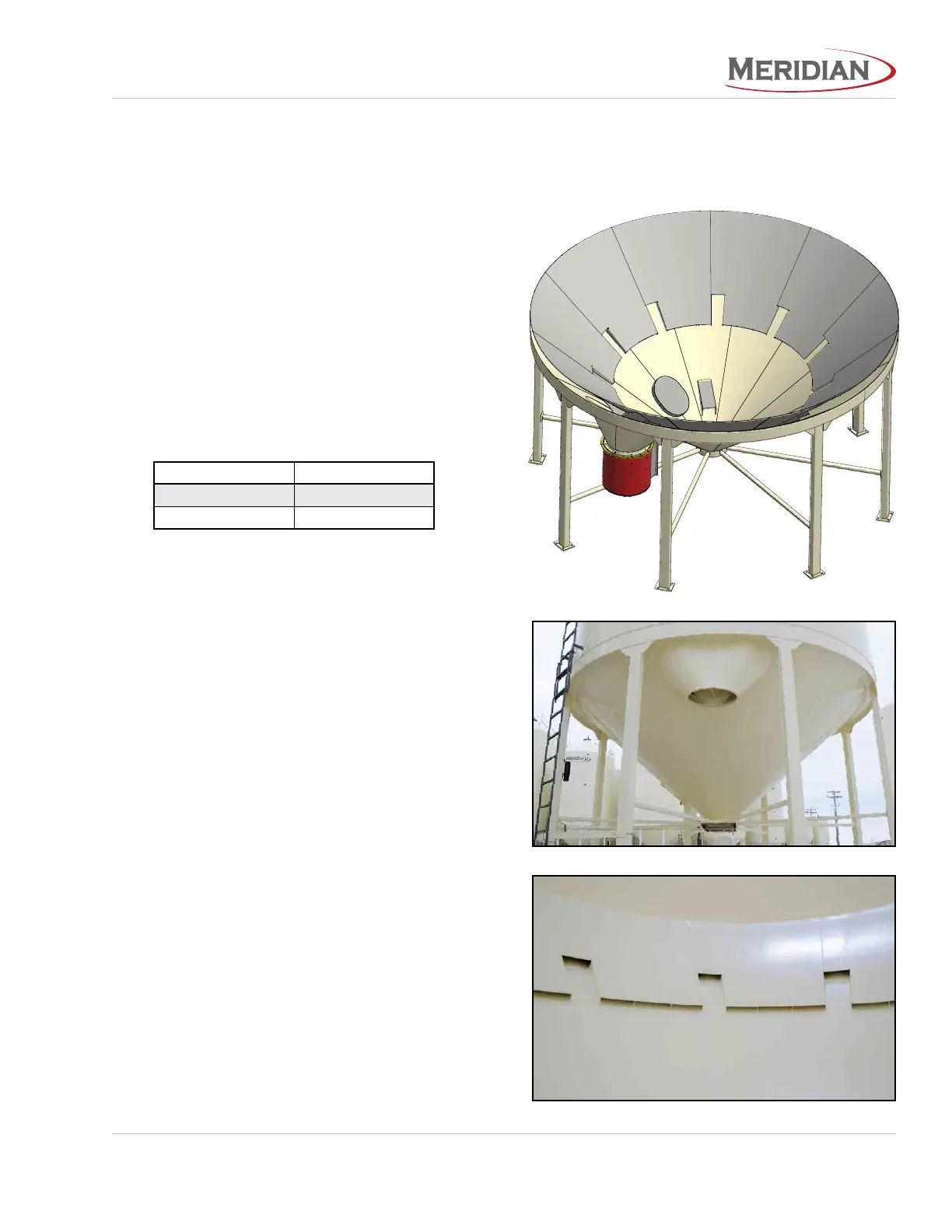

Fig 26 - AirMax™ 360 illustration
Fig 27 - AirMax™ 360 fan mount
Fig 28 - AirMax™ continuous air ducts
4.3.3 Airmax™ 360 Aeration System:
The patented Meridian AirMax® 360 surrounds
the full circumference inside the hopper cone.
It forces air into the centre of the grain cavity,
which is necessary for even grain conditioning.
With no perforations, there are no screens to
remove when changing seed varieties, resulting
in virtually no cleaning or cross-contamination.
Bolt the fan vertically, onto the inlet mount in
a way that the electrical lines can be routed
conveniently.
Table 1 - Airmax™ 360 Fan Inlet Size
BIN SIZE INLET SIZE
16 Feet 18” Dia.
18 Feet 24” Dia.
Airmax™ 360 Warranty Disclaimer:
The storage of fertilizer in a bin equipped
with Airmax™ 360 could limit or void the
warranty if the cause of a claim is deemed
to be from the storage of fertilizer.
