Meridian SMOOTHWALL BIN - Section 5: INDUSTRIAL USAGE; CROSSWALK INSTALLATION

5-2 Revised 06.2021
Owner’s Manual: Smoothwall Bin
®
www.meridianmfg.com
DATE: 2020-03-11
40669 - CROSSWALK INSTALLATION (12"-32" SPAN)
DESCRIPTIONPART #QTY
CROSSWALK PACKAGE - 12"-32” SPAN, BONE WHITE 406691

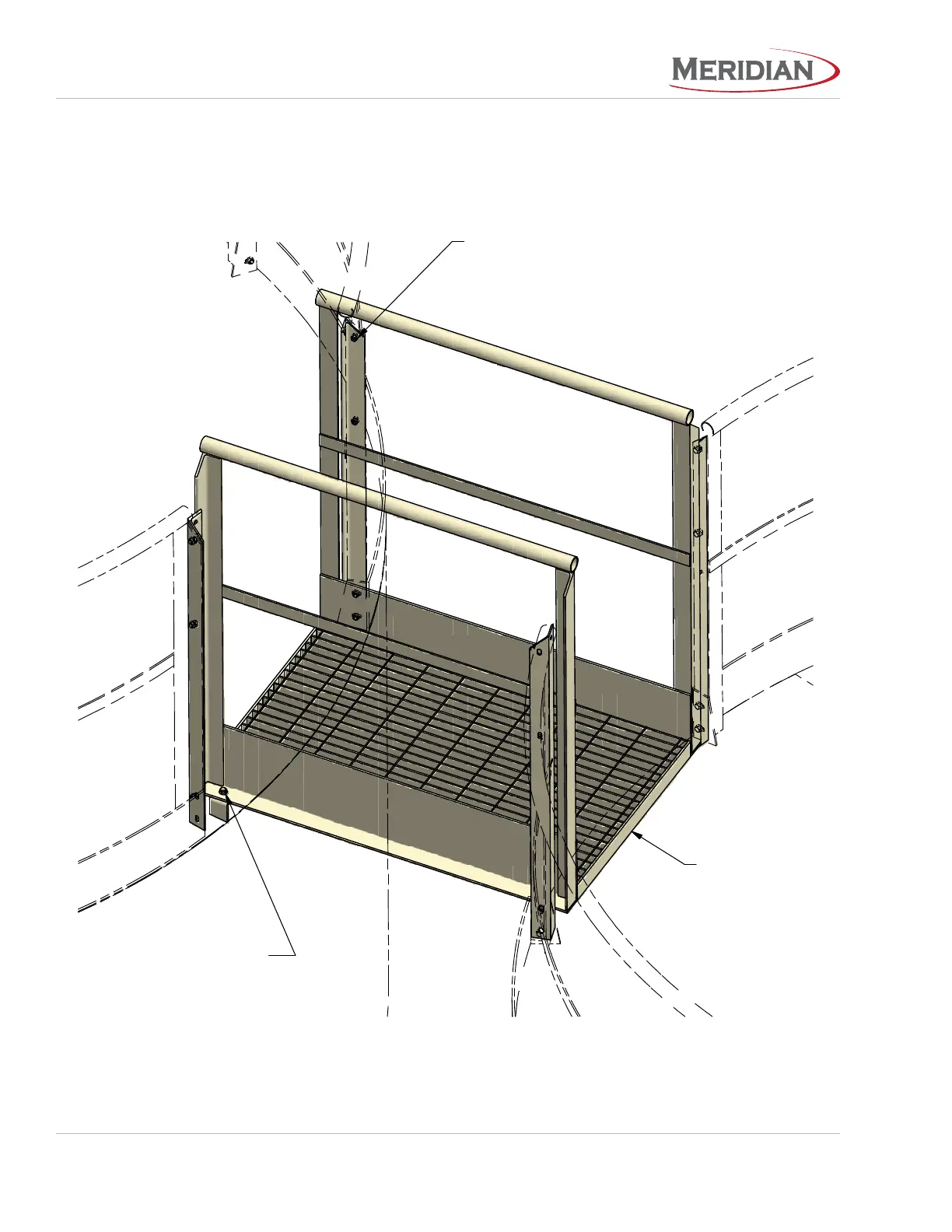

FASTEN CROSSWALK TO
BASE W/ 3/8" HARDWARE (x2)
(THIS END ONLY)
FASTEN CORNER POST TO
PERIM. HANDRAIL W/ 3/8" HARDWARE (x4)
(TYP ALL 4 CORNERS)
THIS END TO SIMPLY
REST ON BASE
CROSSWALK INSTALLATION (12” - 32” SPAN) PART #40669
