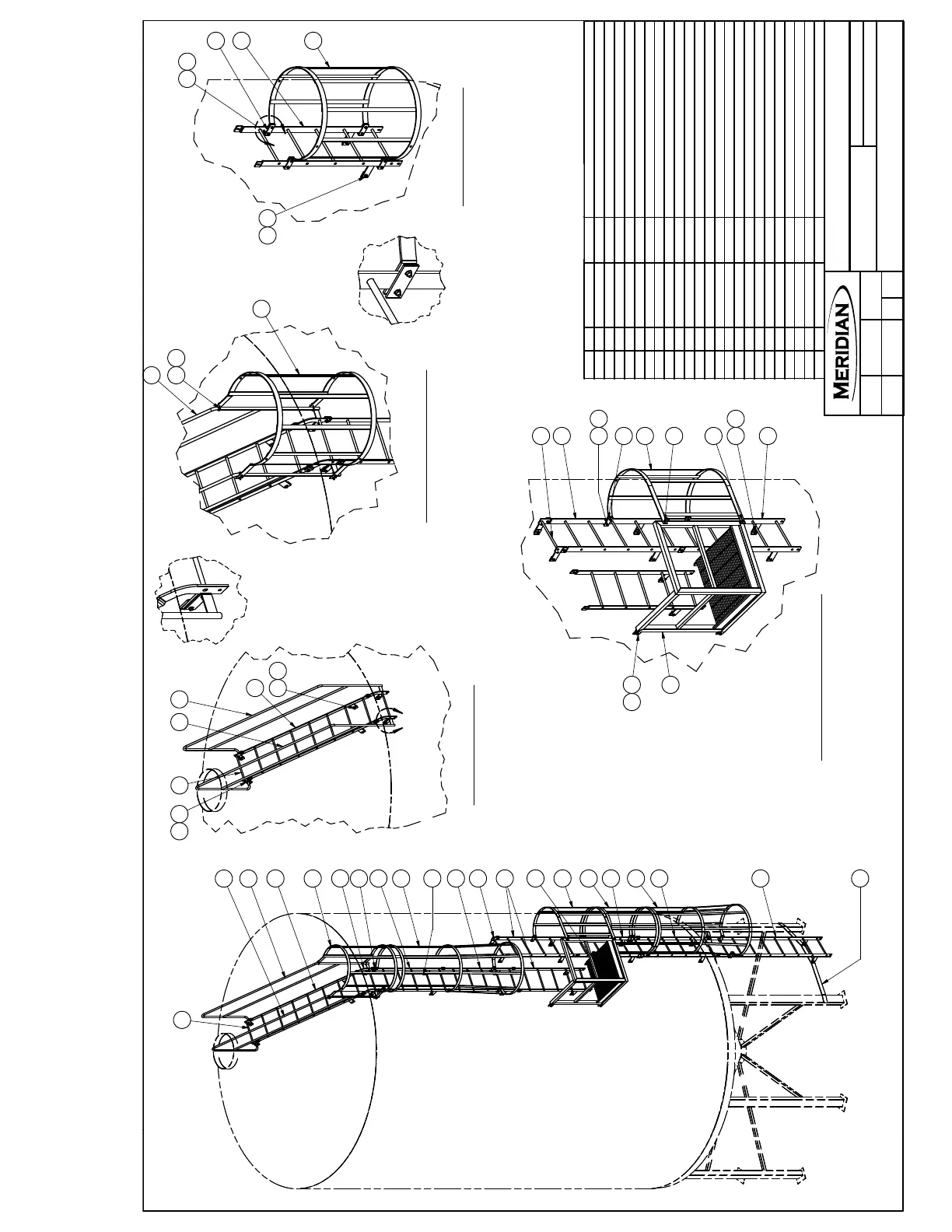

HANDRAIL MOUNTING
1. PLACE HANDRAIL ON OUTSIDE
OF RECEIVERS
2. MOUNT WITH 3/8" x 1 1/2"
FLANGED HEX BOLT & NUT
(SEE DETAIL B)
HANDRAIL CAGE MOUNTING
1. PLACE CAGE ENDS ON
OUTSIDE OF HANDRAILS
2. MOUNT WITH CAGE U-BOLTS & NUTS
3. ENSURE BOTTOM U-BOLTS ARE PLACED
ABOVE HANDRAIL MOUNTING TABS
PLATFORM & CAGE MOUNTING
1. PLACE PLATFORM IN TABS
2. MOUNT WITH 1/2" x 1 1/2" HEX BOLT & NUT
3. PLACE CAGE ENDS ON OUTSIDE OF SW LADDER AND PLATFORM
4. MOUNT WITH 3/8" x 1 1/2" FLANGED HEX BOLT & NUT ONTO LADDER
WITH MOUNT BRKT ON LADDER INSIDE
5. MOUNT WITH 3/8" x 1" SELF-TAPPING SCREWS TO PLATFORM
STD CAGE MOUNTING
1. PLACE CAGE ENDS ON
OUTSIDE OF LADDER SIDERAILS
2. PLACE BOLT BRACKETS ON
INSIDE OF LADDER SIDERAILS
3. MOUNT WITH 3/8" x 1 1/2"
FLANGED HEX BOLT & NUT
4. ENSURE PARTS ARE NOT
INTERFERING WITH LADDER RUNGS
(SEE DETAIL A)
DETAIL A
SCALE 1:8
DETAIL B
SCALE 1 / 12
DESCRIPTIONPART #MASSQTY
ITEM
INDUSTRIAL ROOF RECEIVER, GRAY
316417.341 lbmass21
INDUSTRIAL SIDEWALL RECEIVER, GRAY3164012.469 lbmass12
5FT INDUSTRIAL LADDER, GRAY3164545.659 lbmass63
7FT INDUSTRIAL LADDER, GRAY3164762.419 lbmass14
8FT INDUSTRIAL LADDER, GRAY
3164870.799 lbmass15
42" INDUSTRIAL CAGE, GRAY3165249.704 lbmass16
78" FLARED INDUSTRIAL CAGE, GRAY3165381.145 lbmass17
102" FLARED INDUSTRIAL CAGE, GRAY3165494.562 lbmass18
INDUSTRIAL HANDRAIL CAGE, GRAY
3165548.306 lbmass19
INDUSTRIAL PLATFORM CAGE, GRAY3165639.482 lbmass110
CAGE BOLT BRACKET, GRAY316580.689 lbmass1411
REST PLATFORM OSHA, LEFT SIDE43126139.106 lbmass112
HANDRAIL 7' LH ASSEMBLY GREY
3124619.993 lbmass113
HANDRAIL 7' RH ASSEMBLY GREY3125419.993 lbmass114
LADDER BRACKET, 2 1/2" LG221550.612 lbmass2515
LEG LADDER BRACKET 16'2894317.248 lbmass116
Ø5/16"-18 UNC x 3/4" PIPE U-BOLT
19323 17
NUT, HEX, FLANGED, 5/16-18 UNC19318 18
BOLT, HEX, FLANGED, 3/8-16 UNC X 1.519578 19
NUT, HEX, FLANGED, 3/8-16 UNC19564 20
BOLT, HEX, FLANGED, 1/2-13 UNC X 1.5
19575 21
NUT, HEX, FLANGED, 1/2-13 UNC19595 22
SCREW, FLANGED, SELF-TAPPING 3/8-16 UNC X 119579 23
A
B
THIS DRAWING IS THE EXCLUSIVE PROPERTY OF MERIDIAN MANUFACTURING GROUP
AND MAY NOT BE DUPLICATED BY ANY MEANS WITHOUT THE SPECIFIC PERMISSION
FROM AN AUTHORITY OF MERIDIAN MANUFACTURING GROUP
PROJECT NAME:
INDUSTRIAL LADDER SYSTEM (INSTALLATION INSTRUCTIONS)
PART DESCRIPTION:
COMMON BIN PARTS
A
B - SIZE
REV:
www.meridianmfg.com
6/13/2012
SCALE:CHECKED BY DATE:CHECKED BY:
BP
ADD
SHEET SIZE:DRAWN BY DATE:DRAWN BY:
PART WEIGHT:
982.22 lbmass
MATERIAL:
Meridian
Manufacturing group
14
13
4
1
2
9
8
3
3
3
1
10
12
3
6
3
7
5
15 TYP
11 TYP
16
3
6
11
19 20
2122
9
17 18
14
13 141920
21 22
4
1
1
3
10
11
3
21 22
12
2122
23
23
19 20
®
LADDER SYSTEM INSTALLATION
