Meridian SMOOTHWALL BIN - PERIMETER HANDRAIL INSTALLATION; Perimeter Handrail Installation Steps

5-4 Revised 06.2021
Owner’s Manual: Smoothwall Bin
®
PERIMETER HANDRAIL INSTALLATION
Table 3 - Perimeter Handrail Installation
QTY PART # DESCRIPTION
1 40672 PERIMETER HANDRAIL 16' PKG, BONE WHITE
1 40673 PERIMETER HANDRAIL 14' PKG, BONE WHITE
1 40674 PERIMETER HANDRAIL 13'-6" PKG, BONE WHITE
1 40675 PERIMETER HANDRAIL 12' PKG, BONE WHITE
1 40676 PERIMETER HANDRAIL 10' PKG, BONE WHITE
1 40677 PERIMETER HANDRAIL 9' PKG, BONE WHITE
1 40678 PERIMETER HANDRAIL 8' PKG, BONE WHITE
1. Install handrail “Section B” (includes 2 posts) to roof tabs.
2. Fasten adjoining handrail “Section A” to handrail
“Section B” and then to roof tab.
3. Install remaining “Section A” handrails.
4. Once all sections are installed,
fasten the grab bars
to the handrail
sections.
DESCRIPTIONPART #QTY
PERIMETER HANDRAIL 16' PKG, BONE WHITE406721
PERIMETER HANDRAIL 14' PKG, BONE WHITE406731
PERIMETER HANDRAIL 13'-6" PKG, BONE WHITE406741
PERIMETER HANDRAIL 12' PKG, BONE WHITE406751
PERIMETER HANDRAIL 10' PKG, BONE WHITE406761
PERIMETER HANDRAIL 9' PKG, BONE WHITE
406771
PERIMETER HANDRAIL 8' PKG, BONE WHITE406781
www.meridianmfg.com
DATE: 4/22/2021

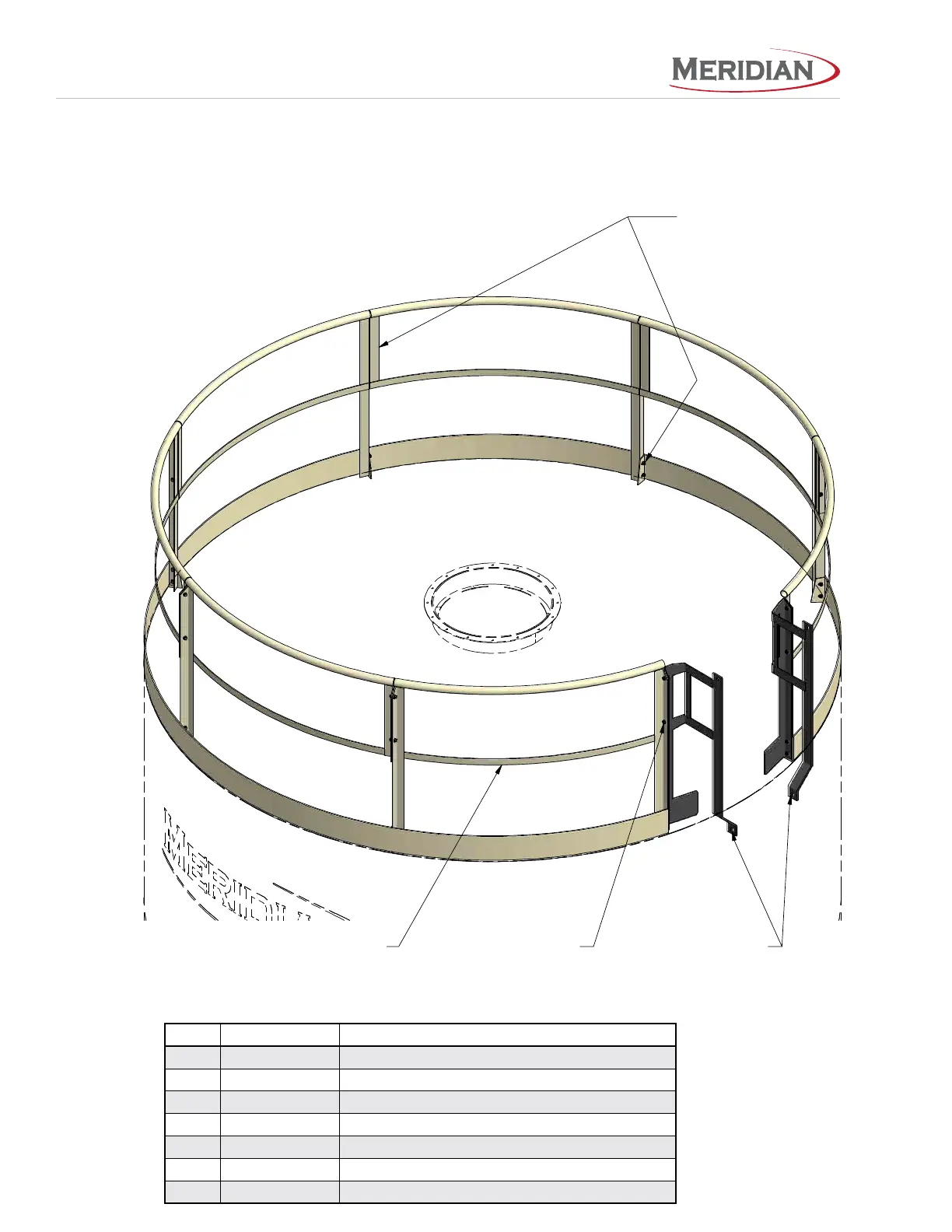

PERIMETER HANDRAIL INSTALLATION
SECTION B - 2 POSTS (x1)
FASTEN TO ROOF TABS
W/ 3/8" HARDWARE (x4)
SECTION A (QTY VARIES)
1. FASTEN TO ROOF TABS
W/ 3/8" HARDWARE (x2)
2. FASTEN TO ADJOINING
HANDRAIL W/ 3/8"
HARDWARE (x2)
MOUNT GRAB BARS W/
3/8" HARDWARE (x4 / SIDE)
INSTALLATION ORDER:
1) INSTALL HANDRAIL SECTION B (INCLUDES 2 POSTS)
TO ROOF TABS.
2) FASTEN ADJOINING HANDRAIL SECTION A TO
HANDRAIL SECTION B AND THEN TO ROOF TAB.
3) INSTALL REMAINING SECTION A HANDRAILS.
4) ONCE ALL SECTIONS ARE INSTALLED, FASTEN
THE GRAB BARS TO THE HANDRAIL SECTIONS.
MOUNT GRAB BARS W/
1/2" HARDWARE TO
LADDER RECEIVER
