Meritor Differential Carrier 17X
2 Maintenance
20. Apply assembly oil to the differential case (Fig 2.31).
Install the bearing cones on both sides of the differential case
(
Figs.2.32 - 2.34). Use a press and suitable tools (CT46-L.H.
/ CT47-R.H.). Press the cones squarely and firmly on
differential cases with a press force of 6 - 8 tons.
NOTE: The larger bearing is fitted to the drive gear side of the
ring gear.

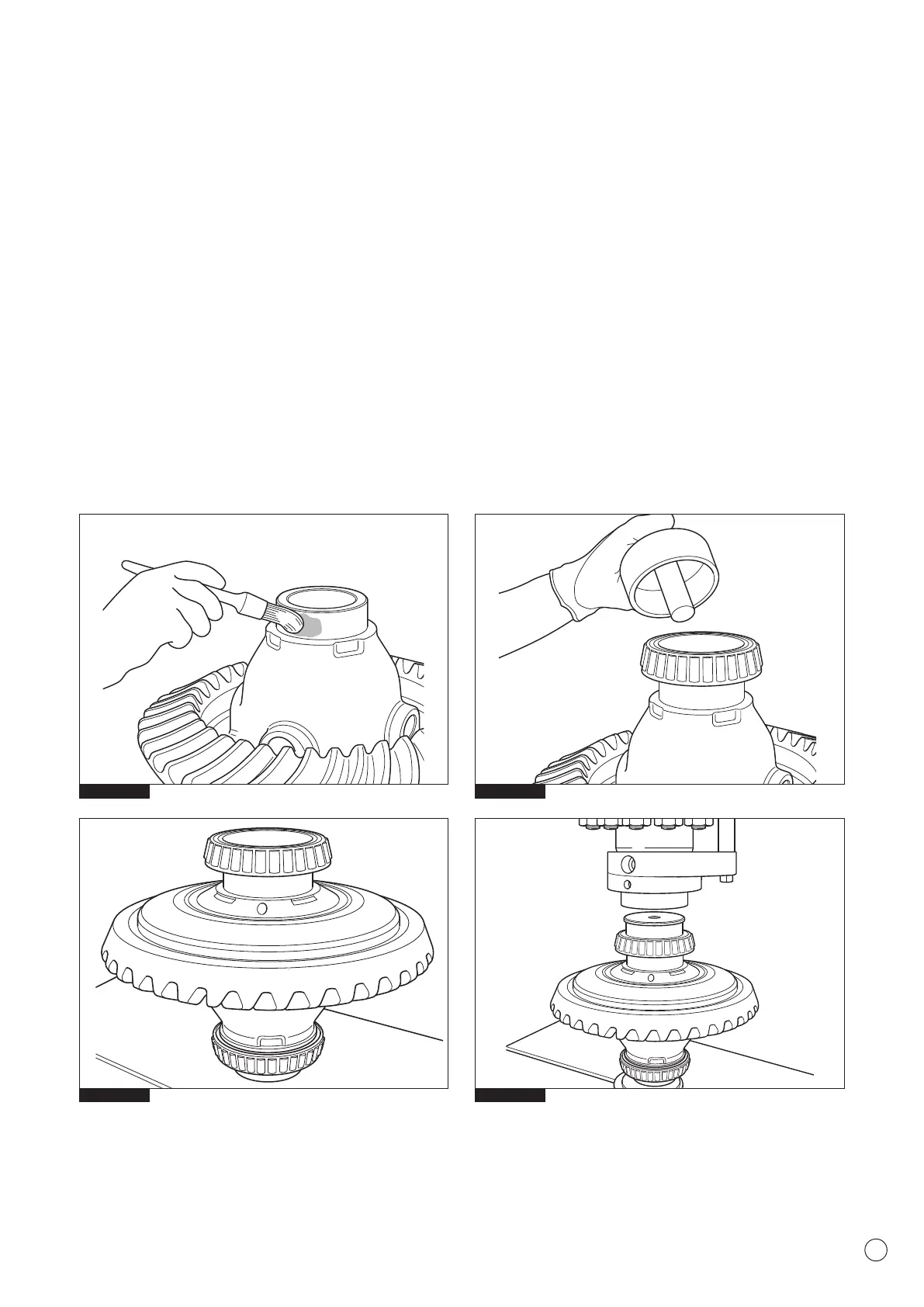

Fig. 2.31 Fig. 2.32
Fig. 2.33 Fig. 2.34
