21. Turn the right hand side adjusting ring by hand and tighten
into the disjoint cap (Fig.2.35). Fit the RH differential bearing
c
up over the cone (Fig.2.36). Fit the cap into position on the
Differential (Fig.2.37).

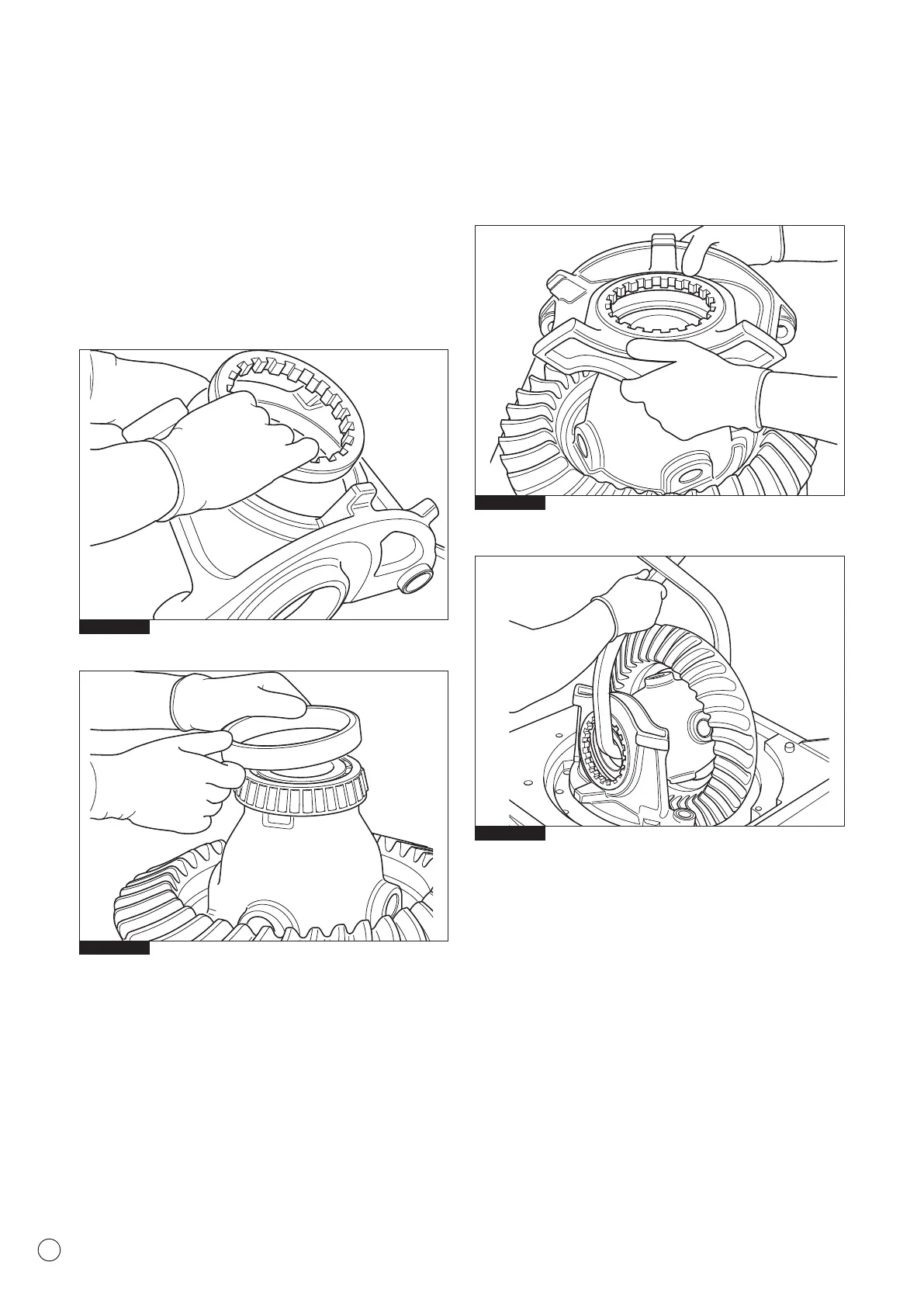

Fig. 2.35
Fig. 2.37
Fig. 2.36
Fig. 2.38
22. Safely lift the differential with ring gear, cup, R.H. cap and
adjusting ring assembly (Fig.2.38) using a suitable tool
(CT52).
