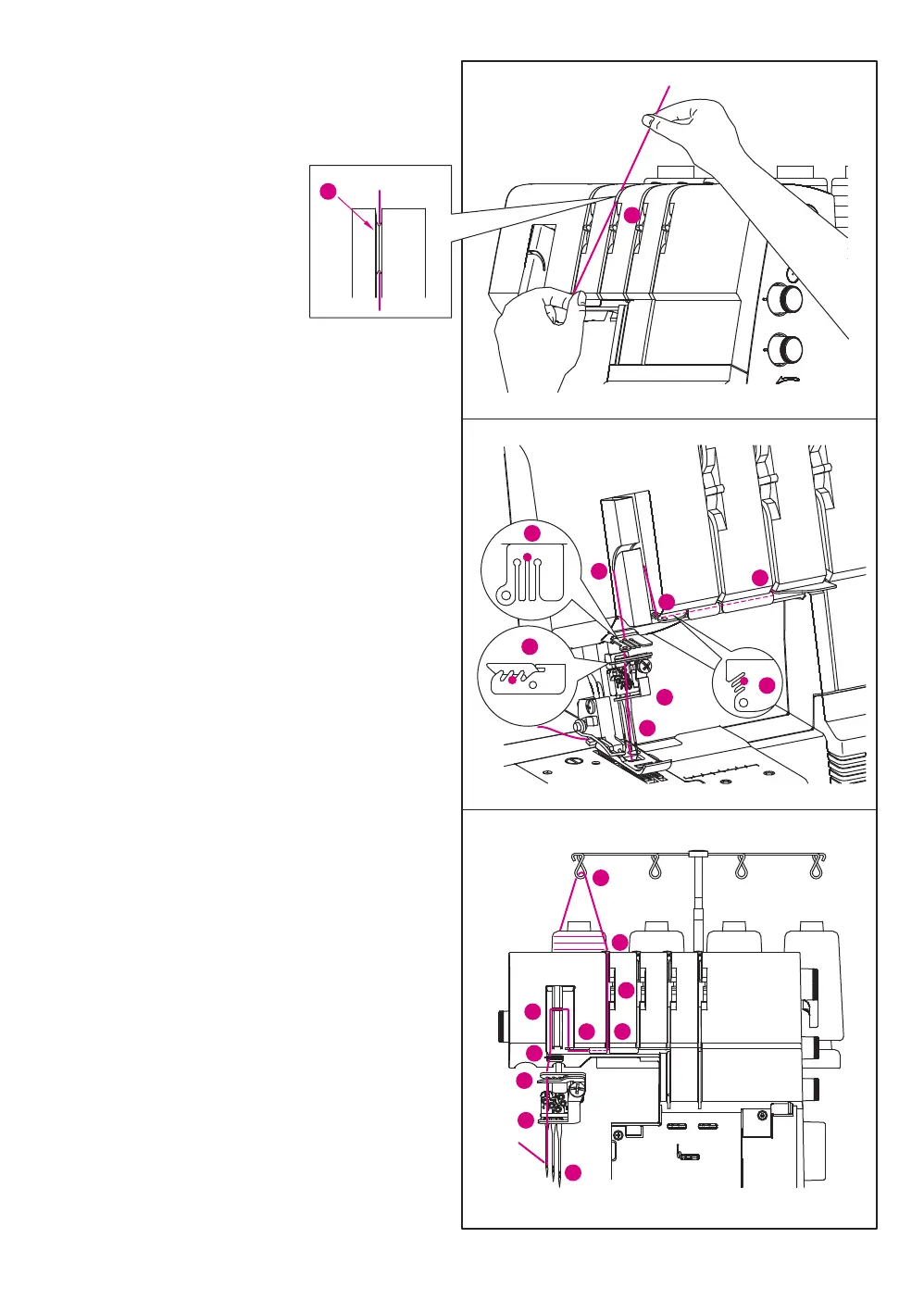

* While holding thread with fingers, pass it between
the tension discs and pull thread down to make
certain it is properly located in between the
tension discs 3.
* Continue to thread points 4~9.
* Slip the thread into the rear slot on the thread
guide (5) and into the slot on the take-up lever
cover (6). Then slip the thread into the right slot
on the thread guides (7) and (8).
* Before threading the eye of the needle, make sure
thread is in front of thread guide located on the
bottom of the needle clamp (9).
* Thread the eye of the needle. Use the needle
threader (page 21) to make the threading easier.
* Pull about 10 cm (4") of thread through needle
eye to hang free.
* Place the thread to the back, under the presser
foot.
19
3
4
5
6
7
8
9
10
5
3
3
4
5
6
7
8
9
10
1
2
(4) TO THREAD
THREAD (BLUE)
(D ON NEEDLE CLAMP)
* Thread the cover stitch middle / chain stitch
needle as indicated 1~10.
* Raise Presser foot to release Tension discs.
COVER STITCH MIDDLE /
CHAIN STITCH NEEDLE
