Example:
17.5 Volts
22 AWG Cable = 5,434 feet maximum
16 AWG Cable = 21,788 feet maximum
CAUTION:
For hazardous area installations, the maximum inductance and capacitance of the loop
wiring between the safety barrier and the transmitter cannot exceed the entity parameters of the
selected barrier.
ATTENTION: Pour les installations en zone dangereuse, l'inductance et la capacité maximales du
câblage de la boucle entre la barrière de sécurité et le transmetteur ne peuvent pas dépasser les
paramètres d'entité de la barrière sélectionnée.
3. Setup and Operation
a. Probe Selection Switches
Housed within the MS2601E enclosure are probe selection switches which allow the instrument to be
set for any standard ER probe type. They also allow the instrument to be placed into several test
modes which output fixed values, allowing verification of the current loop connection and DCS
program.

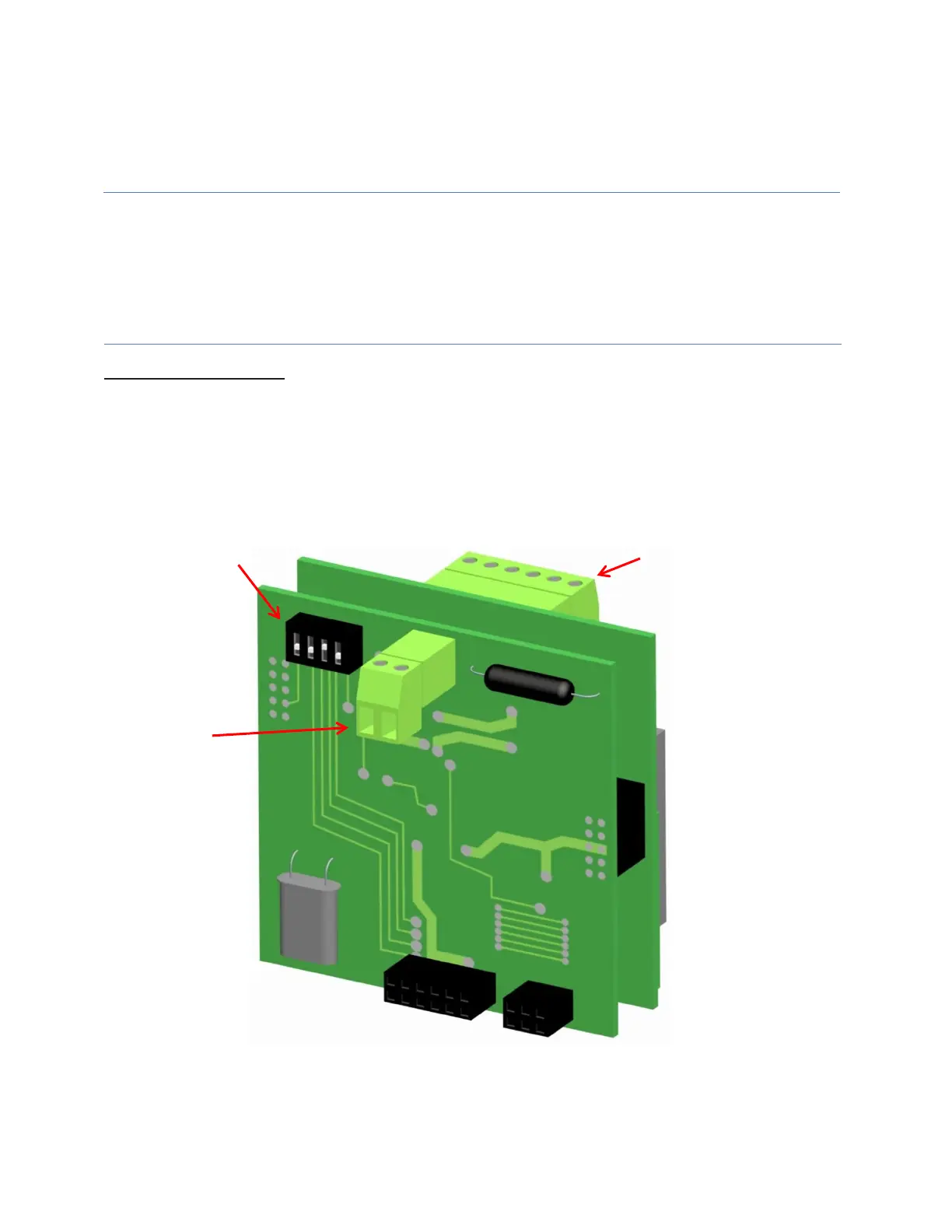

Figure 5. Connector and Switch Details
Probe Selection Switch
(See detail below)
4-20mA Current
Loop Connector
Probe Cable Connector
