C. Technical Specifications
Model MS2601E - High Resolution ER 4-20mA Transmitter
Physical Data
Instrument Weight: 5.25 lb. (2.38 Kg) Total
Weight w/ Accessories: 7.31 lb. (3.31 Kg)

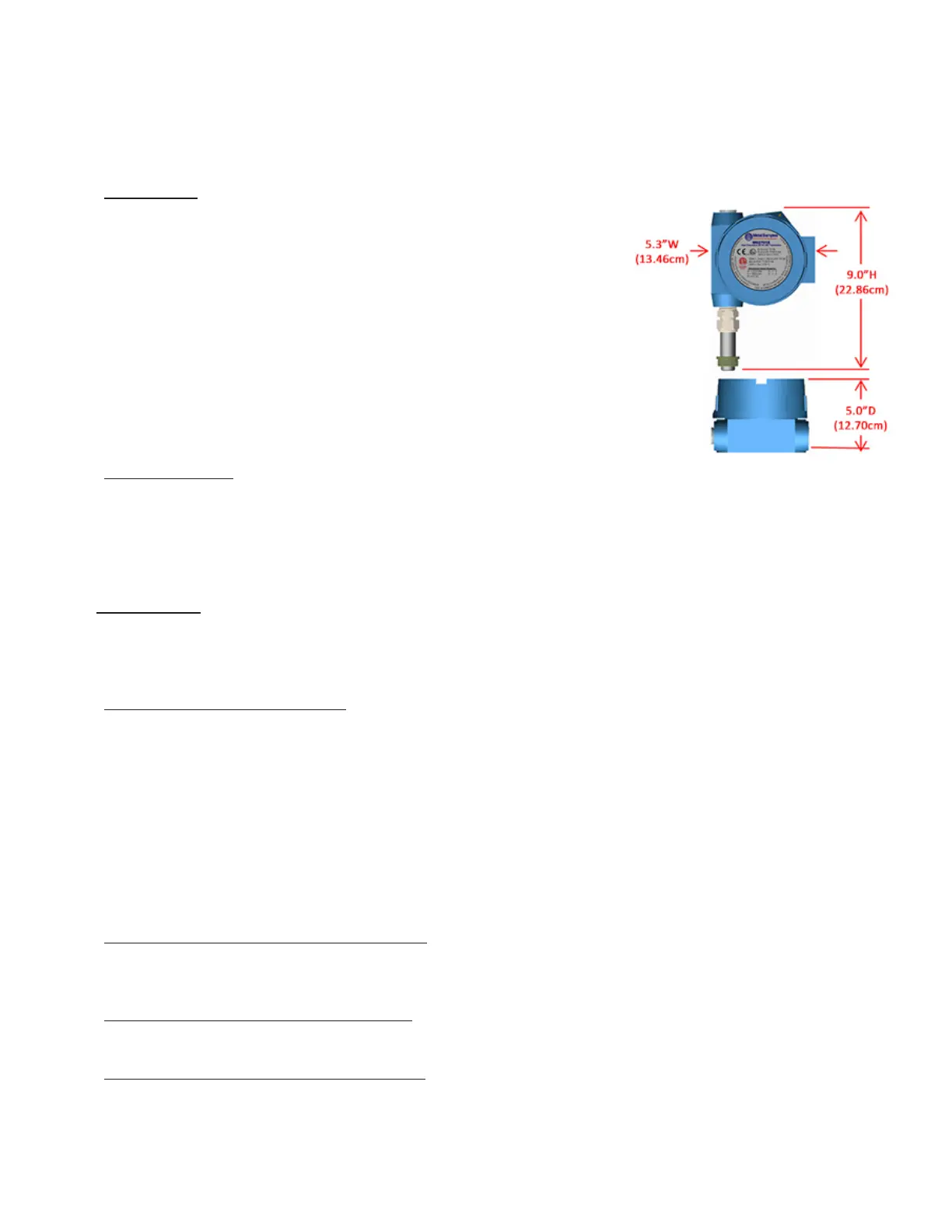

Instrument Dimensions: 9.0"H x 5.3"W x 5.0"D
(22.86cm H x 13.46cm W x
12.70cm D)
Operating Temperature: -40° to 158°F (-40° to 70°C)
Storage Temperature: -40° to 176°F (-40° to 80°C)
Enclosure Material: Cast Aluminum (Copper-Free)
Mounting Specifications: Direct probe mount or
Remote mount
(Up to a 2.5” (6.35cm) Dia. pole)
Performance Data
Measurement Type: ER measurement using any standard ER probe type
(Wire Loop, Tube Loop, Cylindrical, Flush, Strip, etc.)
Range: 0-100% of probe life
Resolution: 0.0015% of Probe Life (16-bit)
Cycle Time: 1 Minute
Electrical Data
Power Requirements: 11 to 28 VDC
Nominal Probe Cable Distance: 30 ft (9.1 m)
Output Specifications: 4-20mA Current Loop Output
Hazardous Location Certifications
Europe and Worldwide Ex db [ia Ga] IIC T6….T4 Gb
(ATEX and IECEx) Ex tb [ia Da] IIIC T85°C …T130°C Db
- 40°C ≤ Tamb ≤ + 70°C
ATEX Certificate No: ITS14ATEX27981X IECEx
Certificate No: IECEx ITS 14.0010X
USA and Canada Class I, Zone 1, AEx db [ia Ga] IIC T6….T4 Gb
(ETL) Class I, Division 2, Groups A, B, C & D, T6…T4
Hazardous Location Certifications – Enclosure
Case Specifications: Explosion Proof (FM, CSA, UL)
IP 66, NEMA 4X, 7BCD, 9EFG
Included Accessories (Direct-Mount Model)
Meter Prover, Operations Manual
Included Accessories (Remote-Mount Model)
Meter Prover, Operations Manual, Probe Cable, Mounting Hardware Kit
