Technical specifications
28

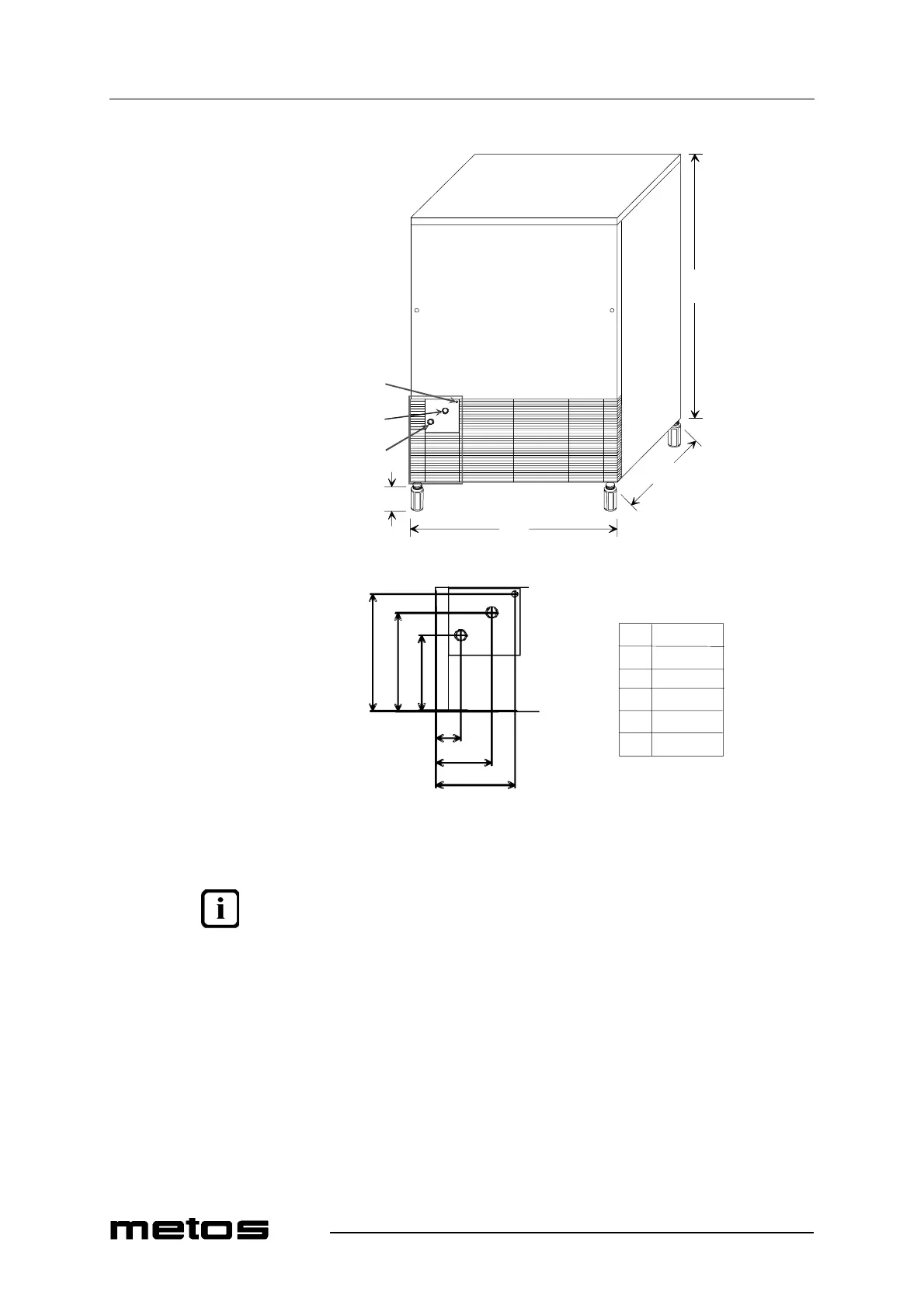

Installation diagram CB1265 & CB1565
1. Water drain pipe, diam. 24mm
2. Cold water connection, diam. 3/4” external thread
3. Electric connection
Look, Installation, place; Placing of appliance[1265,1565]
A
B
C
D
E
F
79 mm
245 mm
141 mm
290 mm
186 mm
326 mm
1
2
3
F
D
B
A
C
E
840 mm
7
4
0
m
m
1
0
7
5
m
m
3
2
1
100 mm
- 0
+ 10
