Metra Electronics 99-3010S-LC User Manual

99-3010S-LC
®
2
Dash Disassembly ........................................... 2-3
Kit Preparation .....................................................3
Kit Assembly
– DIN radio provision with pocket ..........................4
– ISO DIN radio provision with pocket ....................4
– ISO DDIN radio provision .....................................5
Axxess Interface Installation
– Connection to be made .......................................6
– Installing the Axxess interface ............................. 6
– Initializing the Axxess interface ...........................6
– Vehicle customization with optional AX-LCD ........7
– Changing display backlight color .........................7
Table of Contents
For vehicles without UMQ gauge panel, unsnap
and remove shifter trim panel and skip to step 8
.

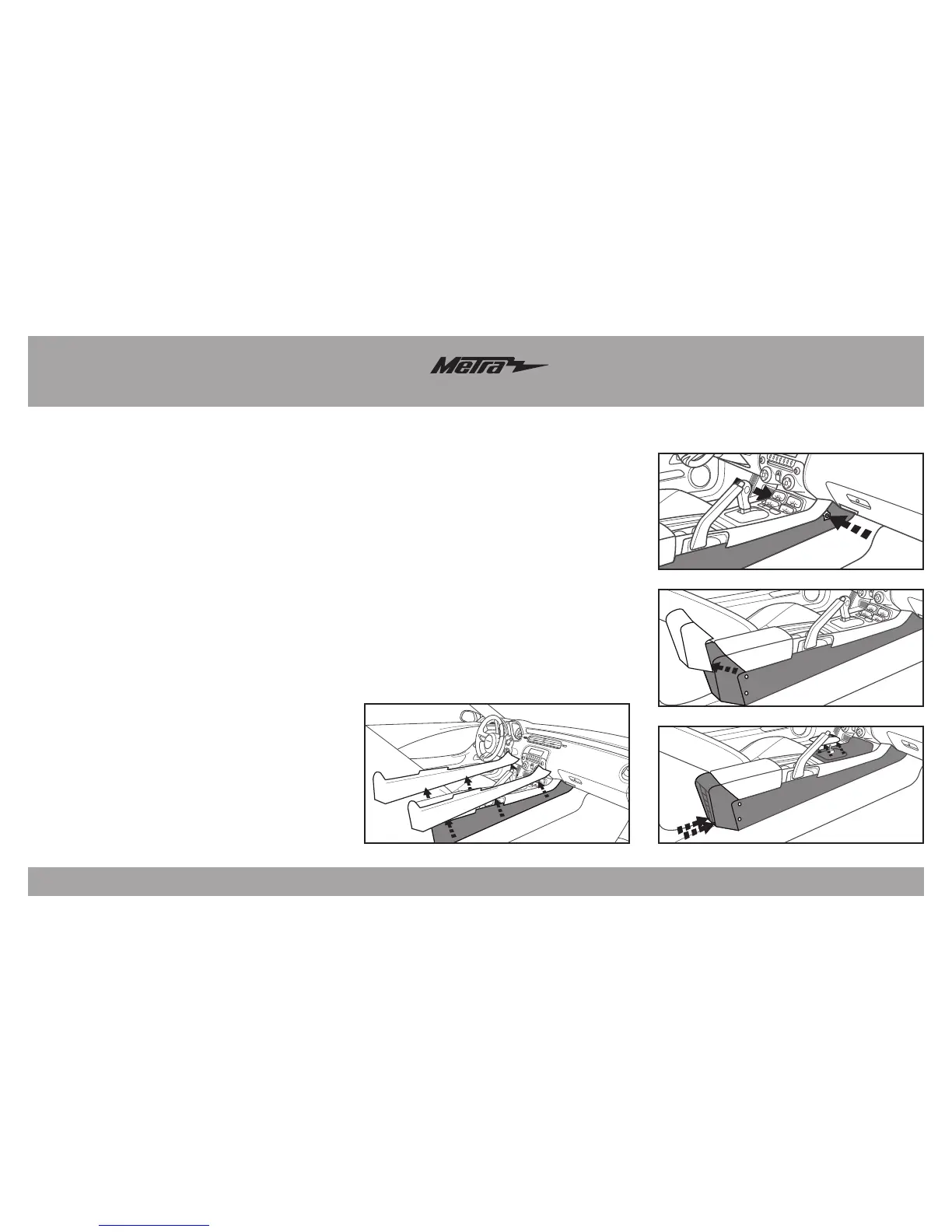

1. Unclip and remove the (2) side trim panels running
the length of the center console. (Figure A)
2. Remove (1) Phillips screw from each side of
the front of the center console. (Figure B)
3.
Remove (2) Phillips screws per side from the
cover on the back of the center console then
unclip and remove the cover.
(Figure C)
4.
Remove (2) Phillips screws exposed under the
cover on the back of console. (Figure D)
5. Remove gauge cluster/trim panel around
shifter.
(Figure E)
Continue onto next page
Dash Disassembly
0
30
70
9
12
19
180
200
320
300
30
100
(Figure B)
0
30
70
9
12
19
180
200
320
300
30
100
(Figure C)
0
30
70
9
12
19
180
200
320
300
30
100
(Figure D)(Figure A)
