Metra Electronics 99-3010S-LC User Manual

®
7
The AX-LCD allows the retention of the vehicles personalization
menu that is lost after removing the OE radio.
From the DIN harness with leads on the AX-LCD harness:
• Connect the Black wire to ground.
• Connect the Red wire to accessory power.
•
Connect the Pink wire to the Pink wire of the 3010S-LC harness.
Note: This wire will have to be soldered onto the 3010S-LC.
• Tape off and disregard the Blue/Pink wire, it will not be used in
this application.
• Press and hold the “Return/ESC” button on the LCD screen for 5
seconds until “Select Interface” comes up.
• Select “Connection Type”, and then press “Enter”
• Scroll up or down to “Gateway”, and then press “Enter”
•
Once done, press the “Return/ESC” button two times to get back
to the main menu
.
Axxess interface installation 99-3010S-LC
Red
Color level up
Color level down
Green Blue
Press and hold to enter
“Configure backlight color” mode
(Figure A)

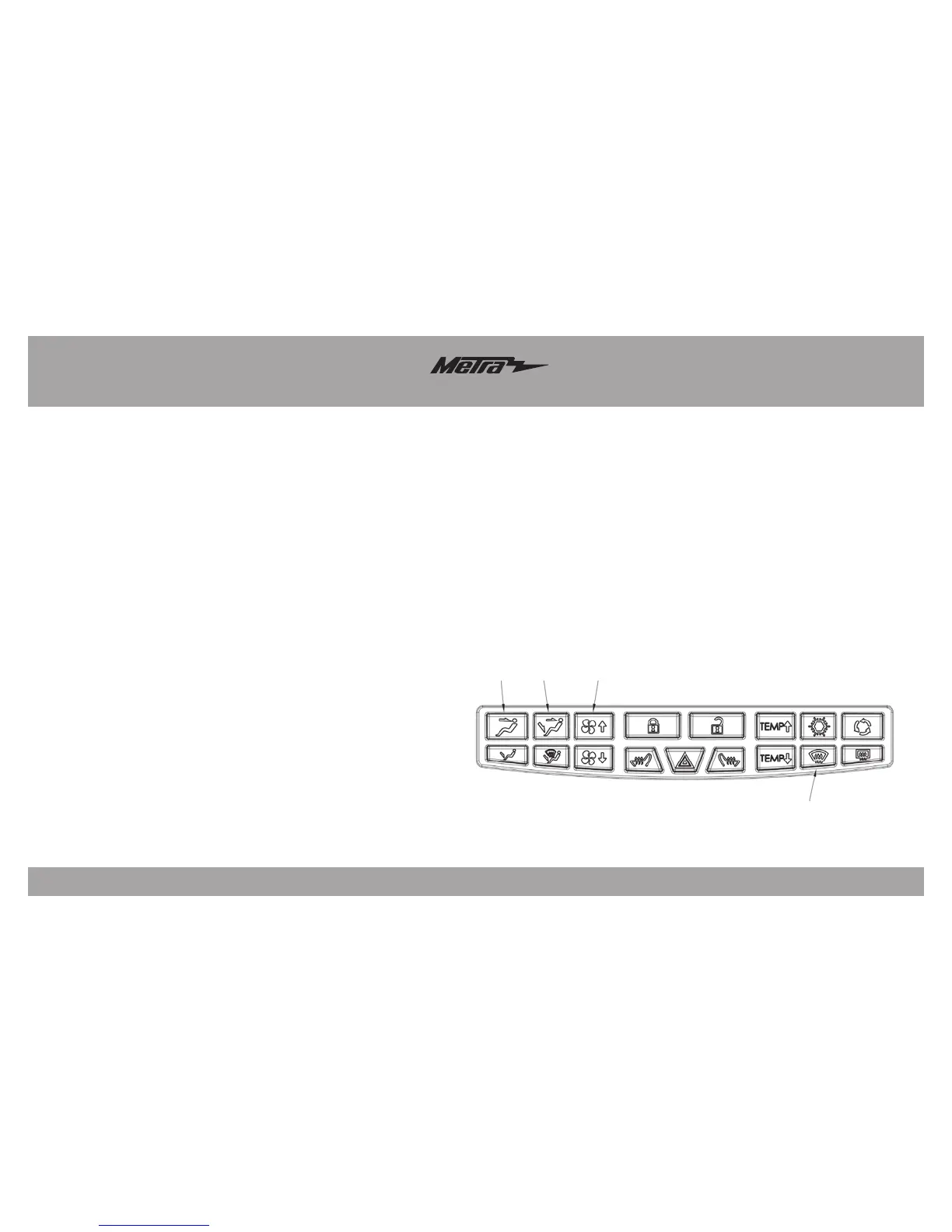

1. Press the front defrost button for 5 seconds,
this will engage the “Configure Backlight
Color” mode. (Figure A)
Note: Backlight will blink while in this mode.
2. Create your backlight color (Figure A):
• Press and hold the “Face” button to
increase Red.
• Press the “Foot” button to decrease Red.
• Press and hold the “Face/Foot” button to
increase Green.
• Press and hold the “Def/Foot” button to
decrease Green.
• Press and hold the “Fan Up” button to
increase Blue.
• Press and hold the “Fan Down” button to
decrease Blue.
3. After you have your desired color stop
pressing the button(s) and the blinking will
stop leaving your desired color. (Figure A)
Changing display backlight color
Vehicle customization with the
optional AX-LCD
(sold separately)
