For 2013-2016 models only:
1. Unclip the trim from around the shifter.
(Figure A)
2. Unclip the U-shaped trim from the rear
of the shifter. (Figure B) 14-16 only
For 2017 models only:
3. Remove the left and right side panels on
the center console, and then remove the
(2) 9/32” screws exposed. (Figure D)
All models:
4. Unclip the trim surrounding the center
dash. (Figure C)
Ensure that the vehicle is completely off
before proceeding onto the following
(3) steps
5. Remove the (2) 9/32” screws securing
the radio/climate control panel, and
then unclip, unplug, and remove.
6. Remove the (4) 9/32” screws securing
the display screen, and then unplug
and remove.
7. Remove the (2) 9/32” screws securing
the radio chassis, and then unplug
and remove.
Continue to Kit Preparation

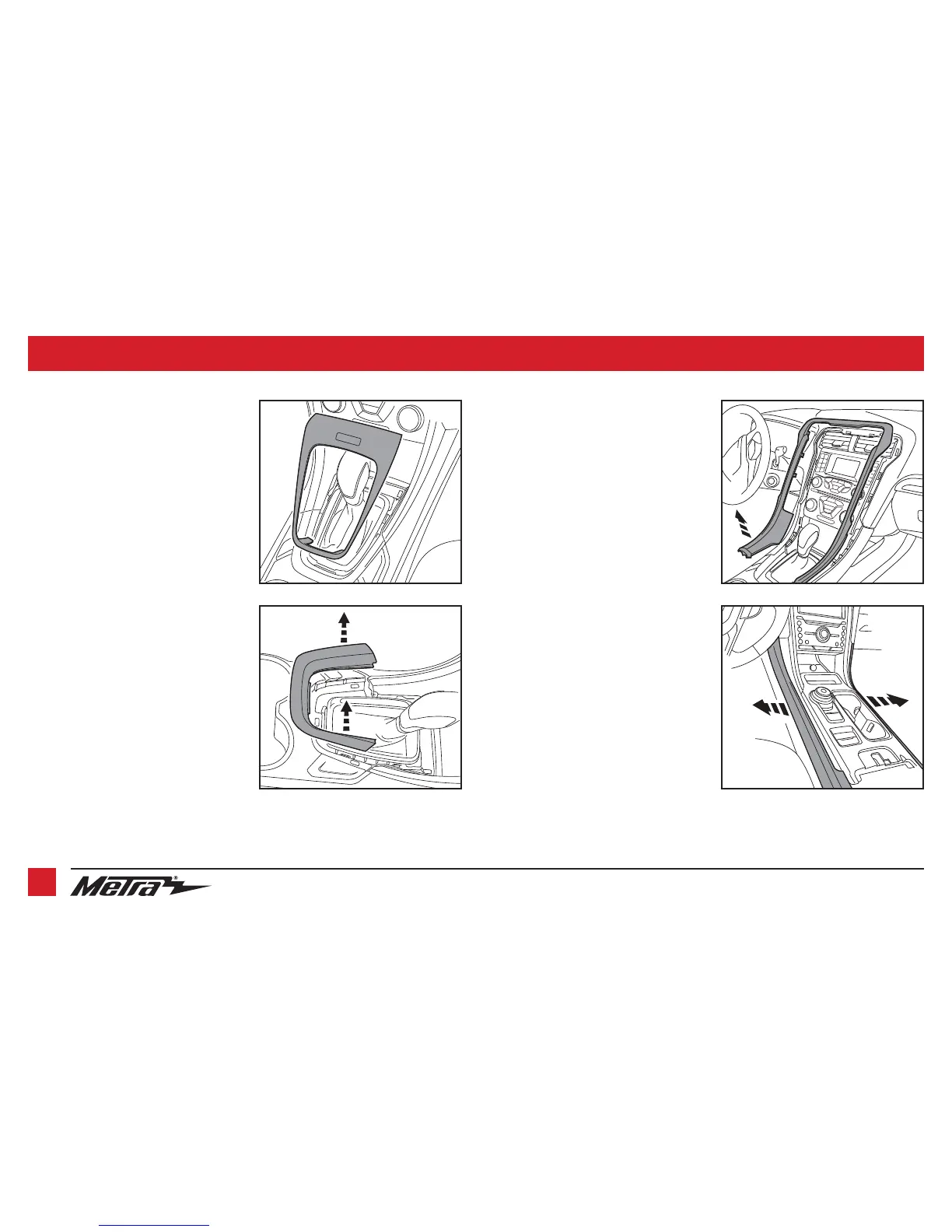

DASH DISASSEMBLY
