Description of the instrument
100.000-count Graphical Multimeters 9

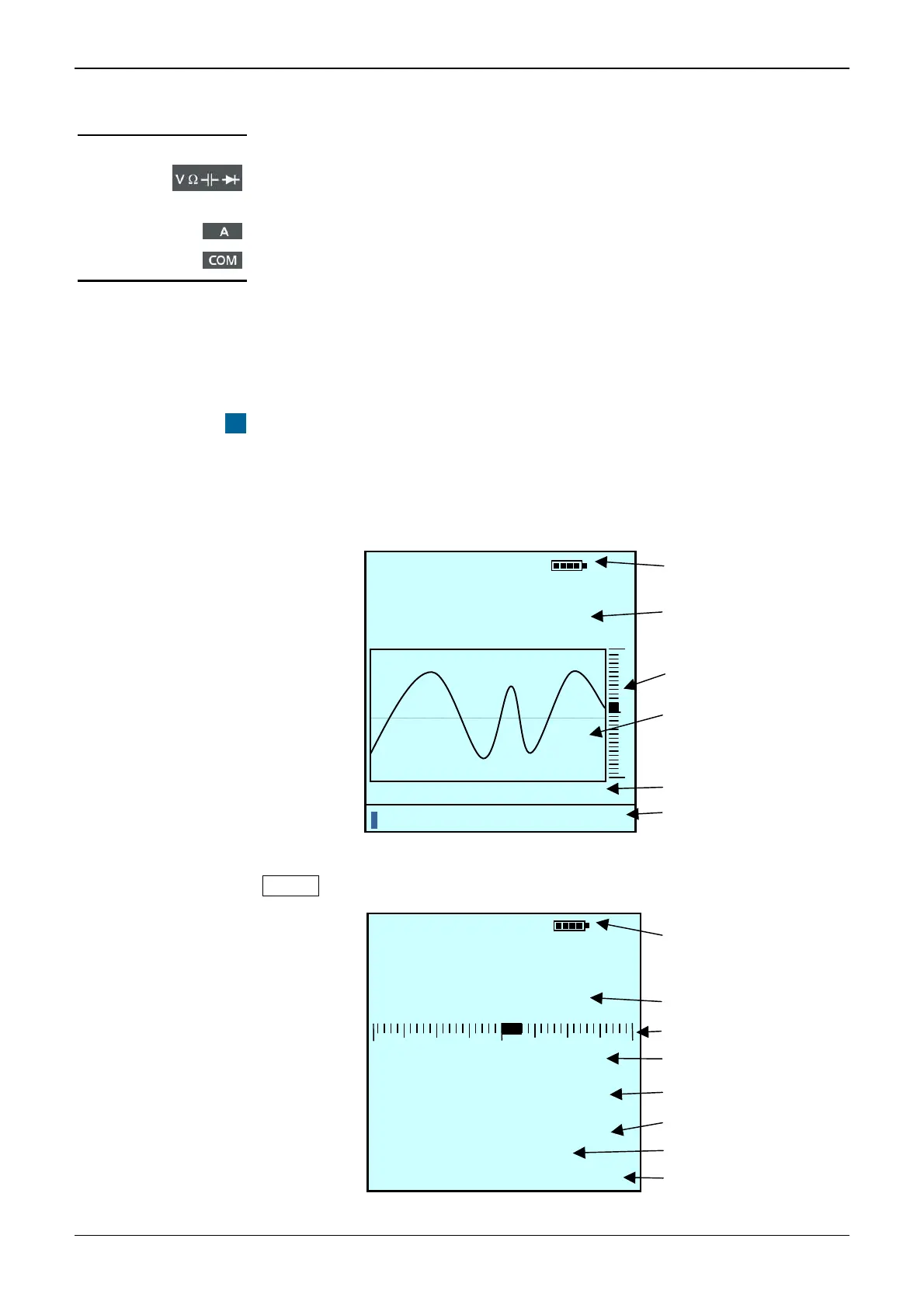

Description of the instrument (cont'd)
Inputs
Input for voltage and frequency measurements, diode tests, resistance
measurements, continuity tests, and capacitance or temperature
measurements.
Input for current measurements.
Reference input.
Display
(foot of the screen)
• The multimeters in this range are equipped with a graphical LCD screen
(58 mm x 58 mm) with 160 x 160 resolution for comfortable reading.
• Reading of the LCD can be optimized by varying the orientation of the
display, the adjustment of contrast and, if necessary, using the backlighting.
• The modes, the functions selected, the electrical or physical values
measured and the alert symbols are clearly shown on the display.
• The user can call up help (i) regarding the function selected.
• The main display is accompanied by its sign and the unit.
Depending on the current selections, the display may be graphical or digital:
Graphical display
 The graphical
window and the
bargraph constantly
track the evolution of
the measurement in the
range selected.
The graphical window can be used to monitor the evolution of the principal
measurement.
 Example
Display of
secondary functions
 The main display
and the bargraph
constantly track the
evolution of the
measurement.
The secondary displays are intended for the SPEC, REL, MEM, SURV and
888888 functions:
 Example
AUTO
1 . 5000
DC
V
HOLD
i
Press the main function key …
> 60s
2.5000 V
AUTO
1 . 5000
MIN
MAX
- 1.0000 V
2.5000 V
1.3000 V
DC
V
i
Lower status line
Bargraph
Graphical window
Help on function
Upper status line
Main display
Main display
Secondary display 1
Secondary display 2
Secondary display 3
Bargraph
Upper status line
Lower status line
Help on function
SURV
AVG
MEM 2
Recording started
1
0
-
1
0
-10 0 10
