3.7 Disassembling the dosing unit
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
22
￭￭￭￭￭￭￭￭
807 Dosing Unit
Removing the housing

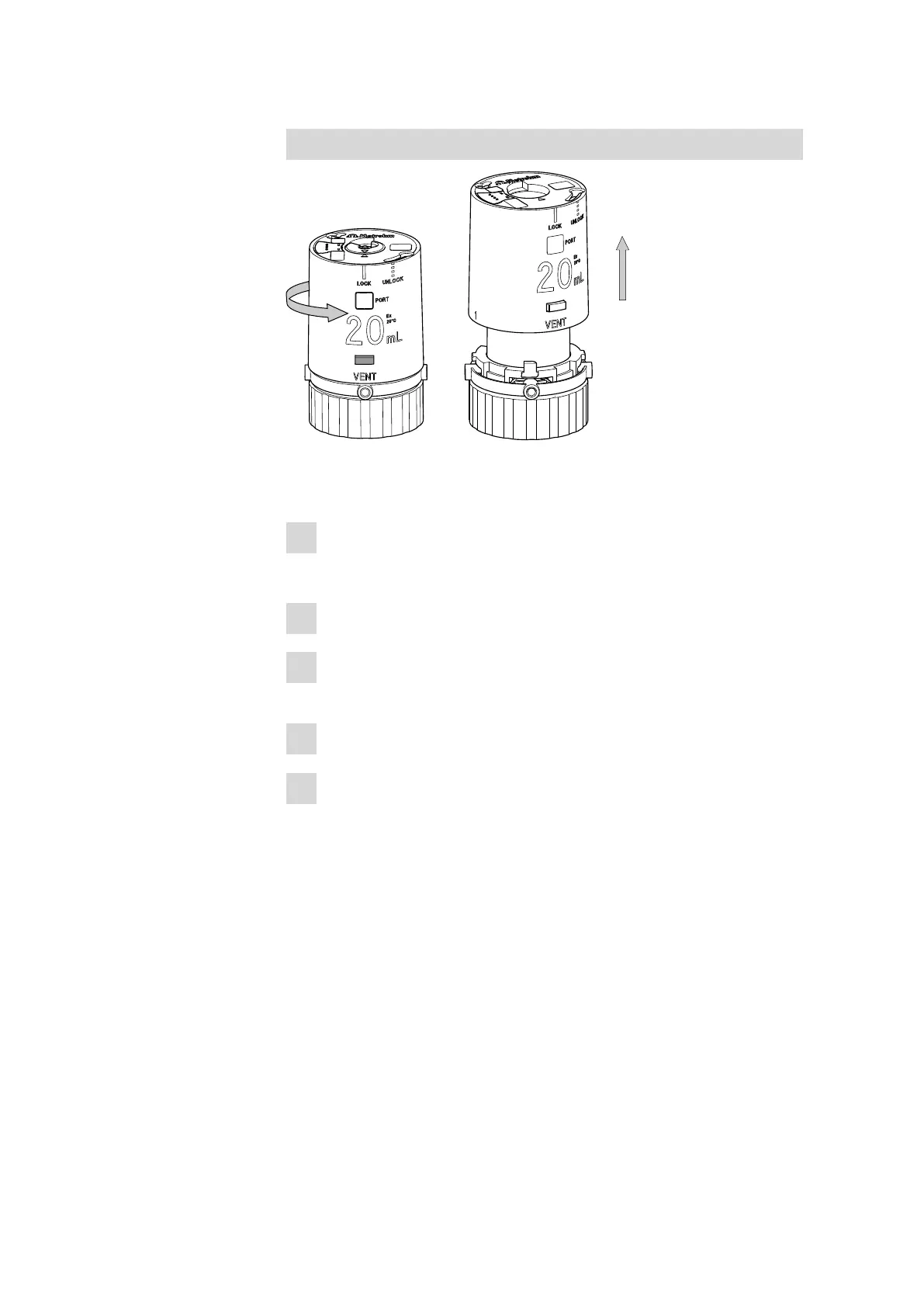

Figure 15 Removing the housing
Remove the housing of the dosing unit as follows:
1
Place the dosing unit on a flat, level surface.
The lettering of the volume specification faces towards the front.
2
Keep the locking button of the spring clip pressed down.
3
Rotate the housing by approx. 1 cm to the right (in counterclockwise
direction).
4
Release the locking button.
5
Carefully raise the housing upward.
You will now see the complete cylinder unit with the transparent
centering tube which rotates on the distributor with the interior dos-
ing cylinder when the flat stopcock is switched.
