Metrohm 807 - Figure 23 Marking Rib on Housing and Distributor; Figure 24 Locking the Housing

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
807 Dosing Unit
￭￭￭￭￭￭￭￭
29

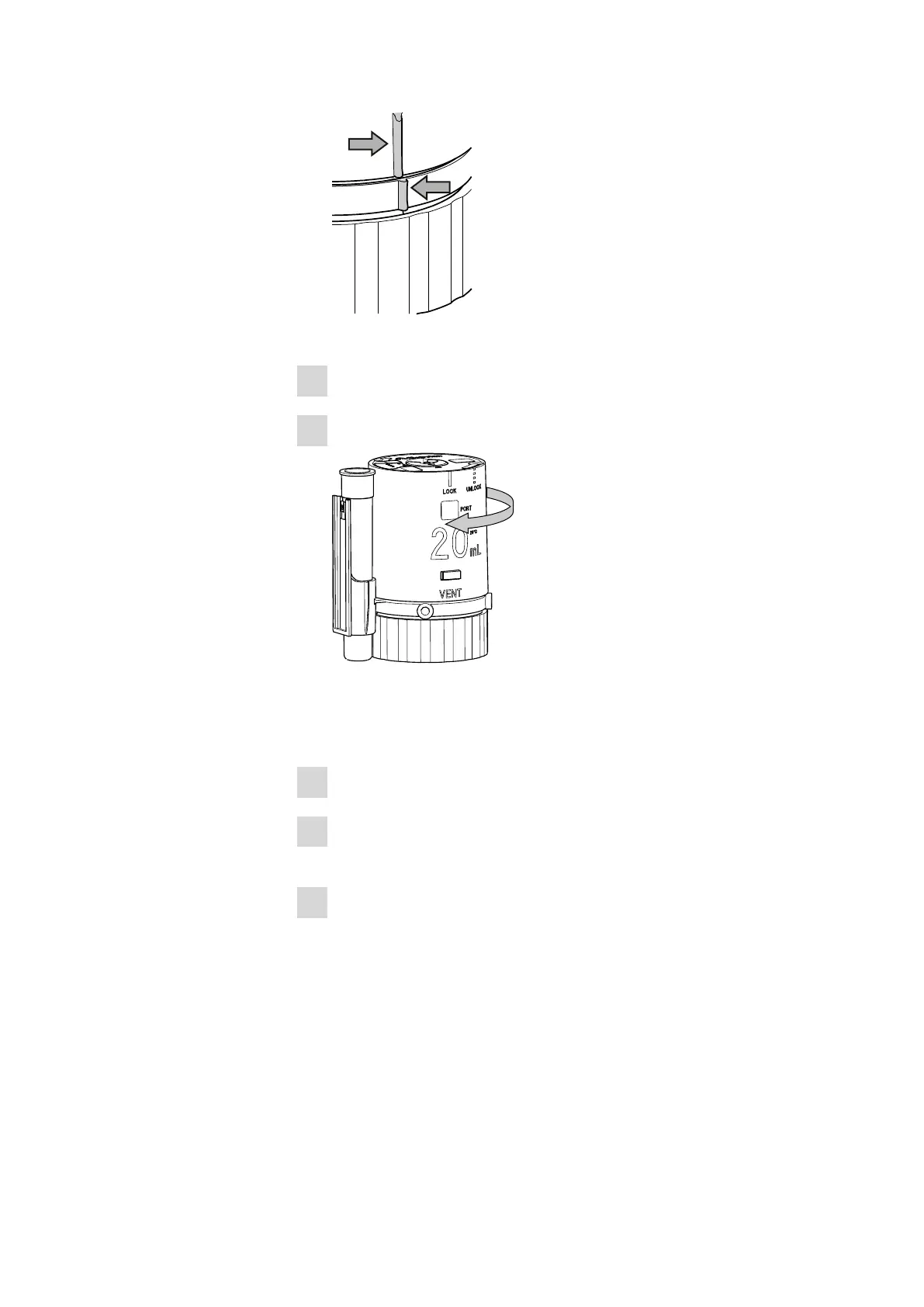

Figure 23 Marking rib on housing and distributor
3
Hold the distributor firmly.
4
Rotate the housing to the left (in clockwise direction).
Figure 24 Locking the housing
Once all the parts are lined up with one another, the housing will
snap into place.
5
Check the seating of the housing.
6
Check whether the piston and the centering tube are correctly posi-
tioned.
7
Press the entire dosing unit against a tabletop in upside-down posi-
tion.
The piston stopper must be flush with the upper edge of the hous-
ing.
