3.3 Feed-throughs for capillaries and cables

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

￭￭￭￭￭￭￭￭

930 Compact IC Flex Oven/SeS/PP (2.930.2500)

3.3 Feed-throughs for capillaries and cables

Multiple openings are available for leading capillaries into the instrument

and for leading capillaries and cables out of the instrument:

￭ Openings on the door

￭ Openings on the back panel

￭ Ducts between the instrument and the base tray as well as between

the instrument and the bottle holder (see figure 5, page 14)

Openings on the door

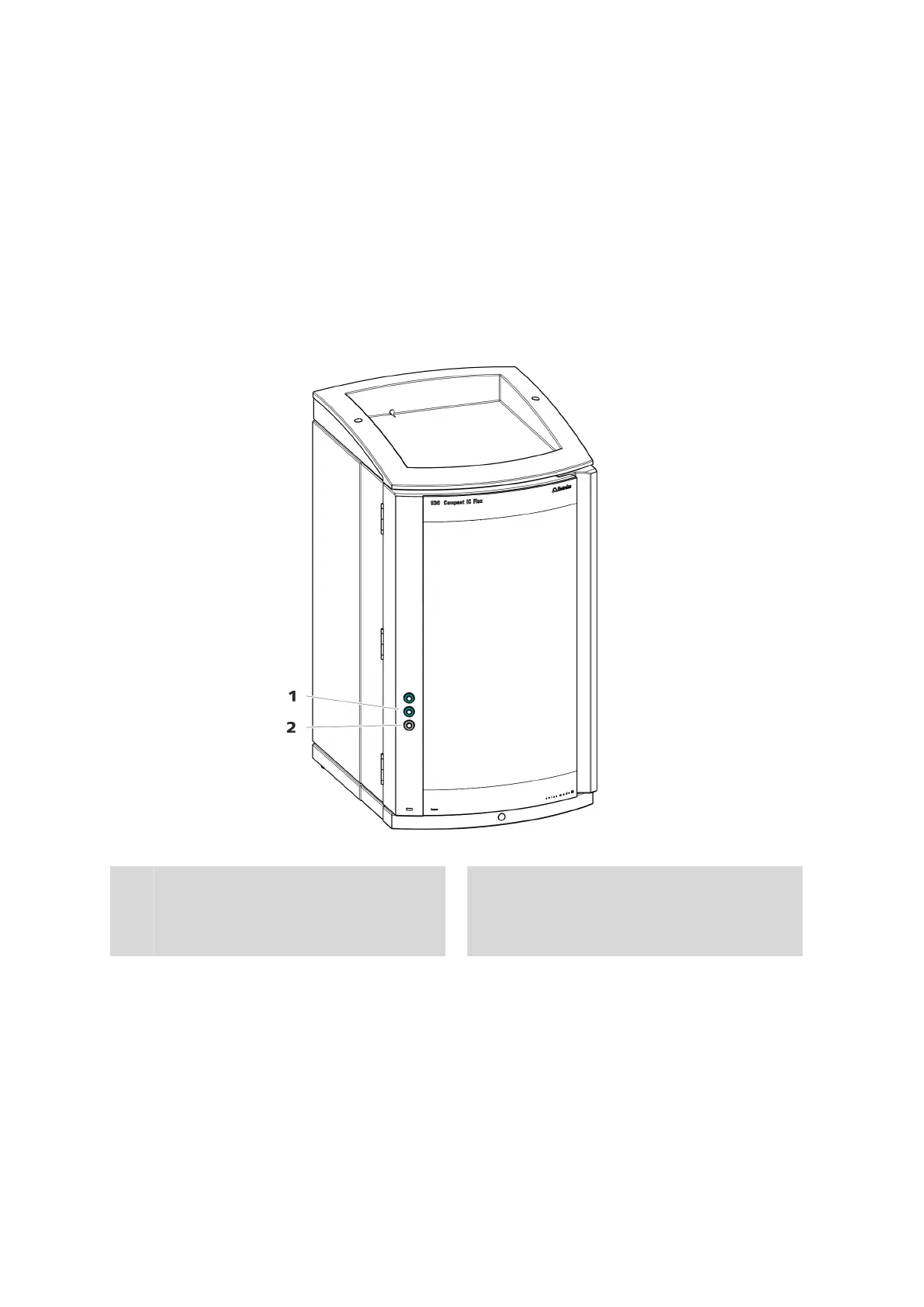

Figure 3

Feed-throughs on the door

Luer connector

For connecting a capillary from inside and

for inserting a syringe (6.2816.020) from

outside. For manual sample injection.

Opening for capillaries

For up to 3 capillaries.

An opening for up to 3 capillaries is located on the door of the instru-

ment.

The two Luer connections above are not actually openings; the capillaries

are fastened to the Luer connection from within using PEEK pressure

screws. You can use a syringe to inject or draw out liquid from the out-

side.
