Metrohm 930 Compact IC Flex ChS/PP/Deg User Manual

4.4 Connecting the drainage tubing and leak sensor
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
20
￭￭￭￭￭￭￭￭
930 Compact IC Flex Oven/SeS/PP (2.930.2500)

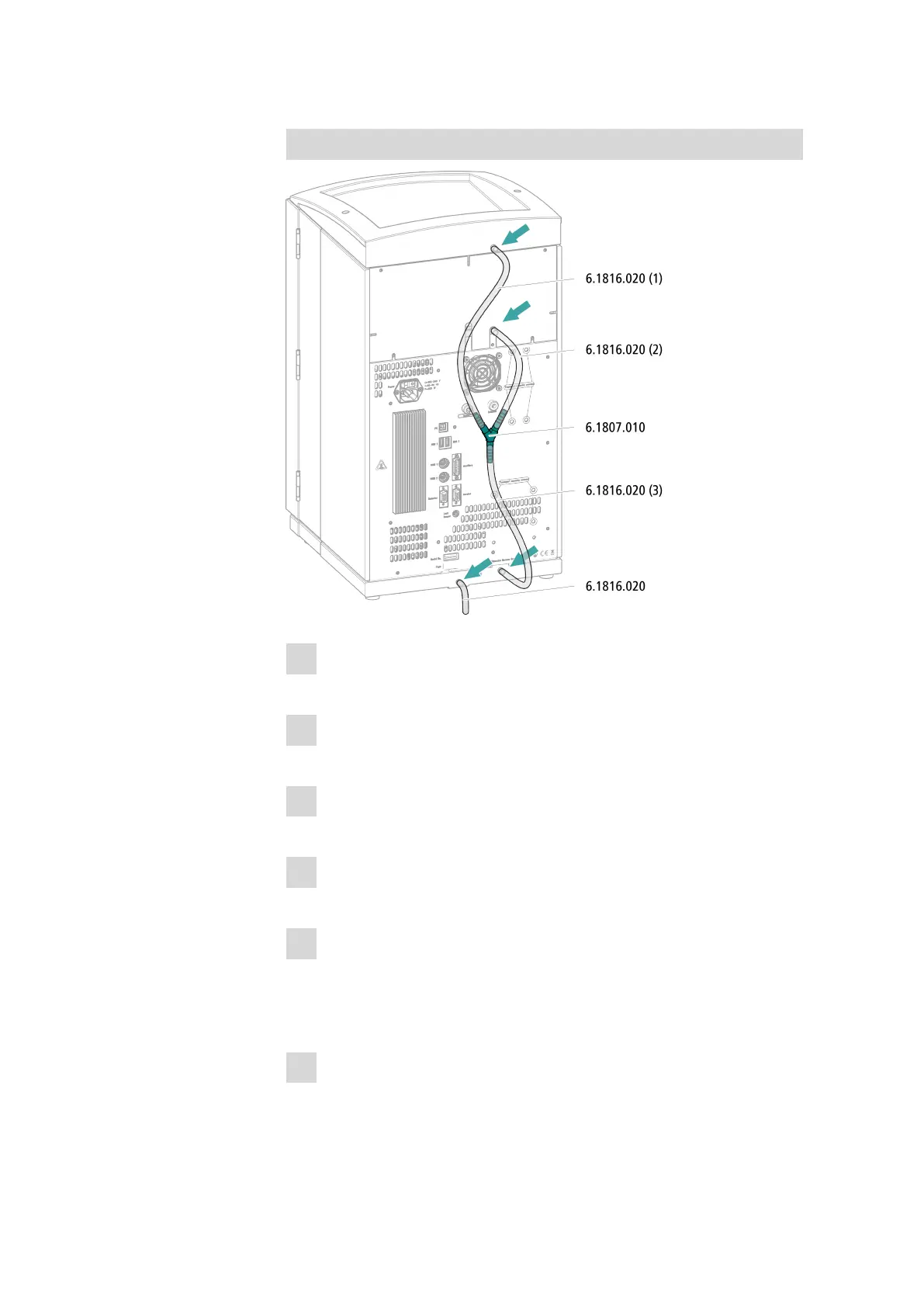

Connecting the drainage tubing
1
Cut a piece of silicone tubing into three pieces using scissors: 2 ×
approx. 40 cm and 1 × 20 cm.
2
Attach one end of the 40 cm long piece to the drainage tubing
connection on the bottle holder.
3
Attach one end of the 20 cm long piece to the drainage tubing
connection on the detector chamber.
4
Attach each of the loose ends of both pieces of silicone tubing to
one end of the Y connector.
5
Attach one end of the second 40 cm long piece to the third end of
the Y connector.
Attach the loose end to the right-side drainage tubing connection on
the base tray.
6
Attach one end of the second piece of silicone tubing to the left-side
drainage tubing connection on the base tray.
