Magnetic stirrer – Installing the accessories
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
40
￭￭￭￭￭￭￭￭

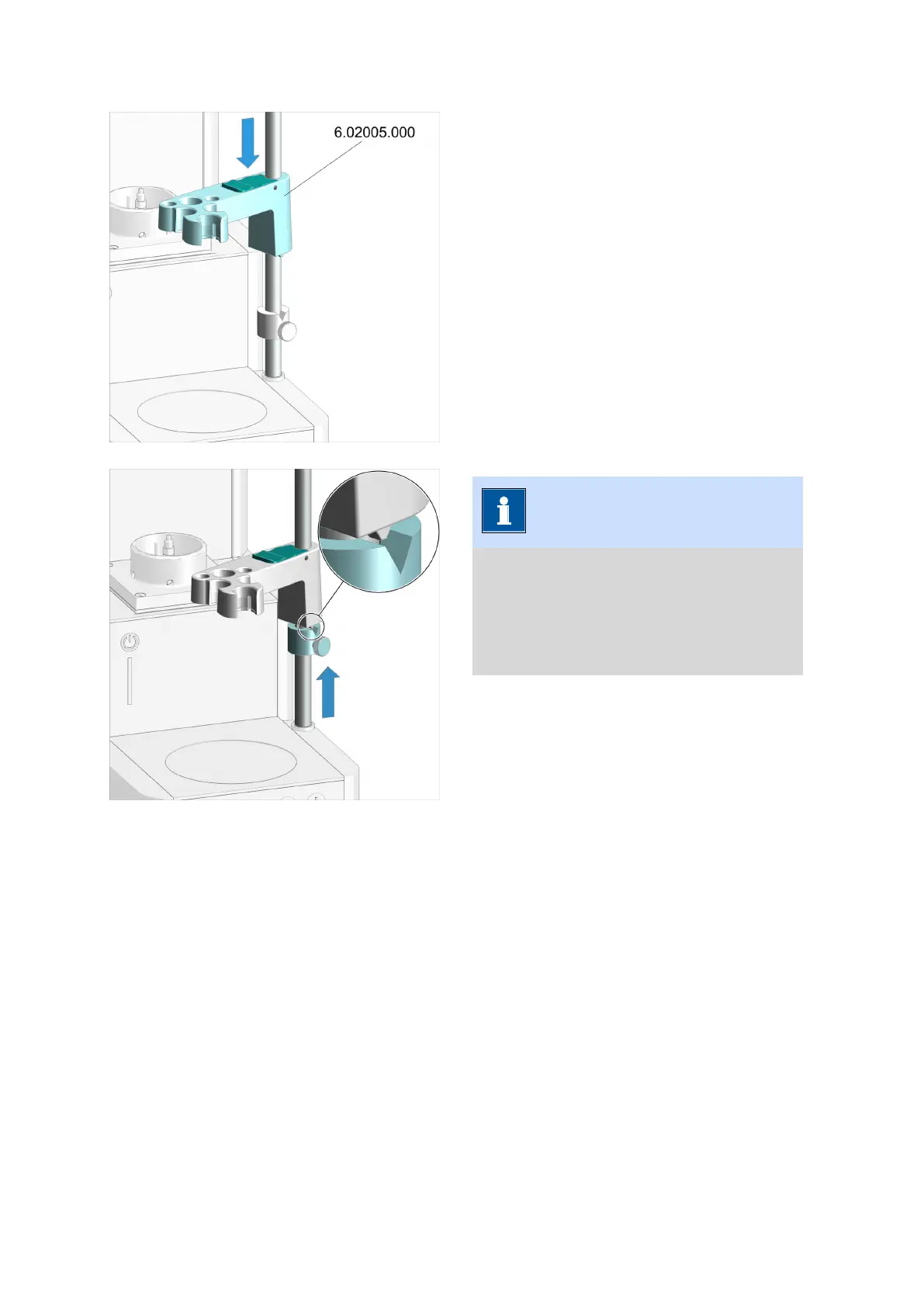

Mounting the electrode holder
1. Press the green locking lever on the elec-
trode holder.
2. Push the electrode holder over the support
rod.
3. To fix in place, release the green locking
lever at the desired height.
The electrode holder is fixed in place.
NOTE
The clamping ring is used as the lower stop
for the electrode holder. The clamping ring
prevents the electrode holder with the
mounted electrode from being lowered too
far.
1. Push the clamping ring under the elec-
trode holder.
2. Rotate the clamping ring in such a way
that the wedge on the electrode holder
fits in the indent in the clamping ring.
3. Fix the clamping ring with the knurled
screw in place at the desired height.
