Metrohm Titrando 890 - 3 Installation; 3.1 Setting up the instrument; 3.2 Connecting a controller

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8
￭￭￭￭￭￭￭￭
890 Titrando

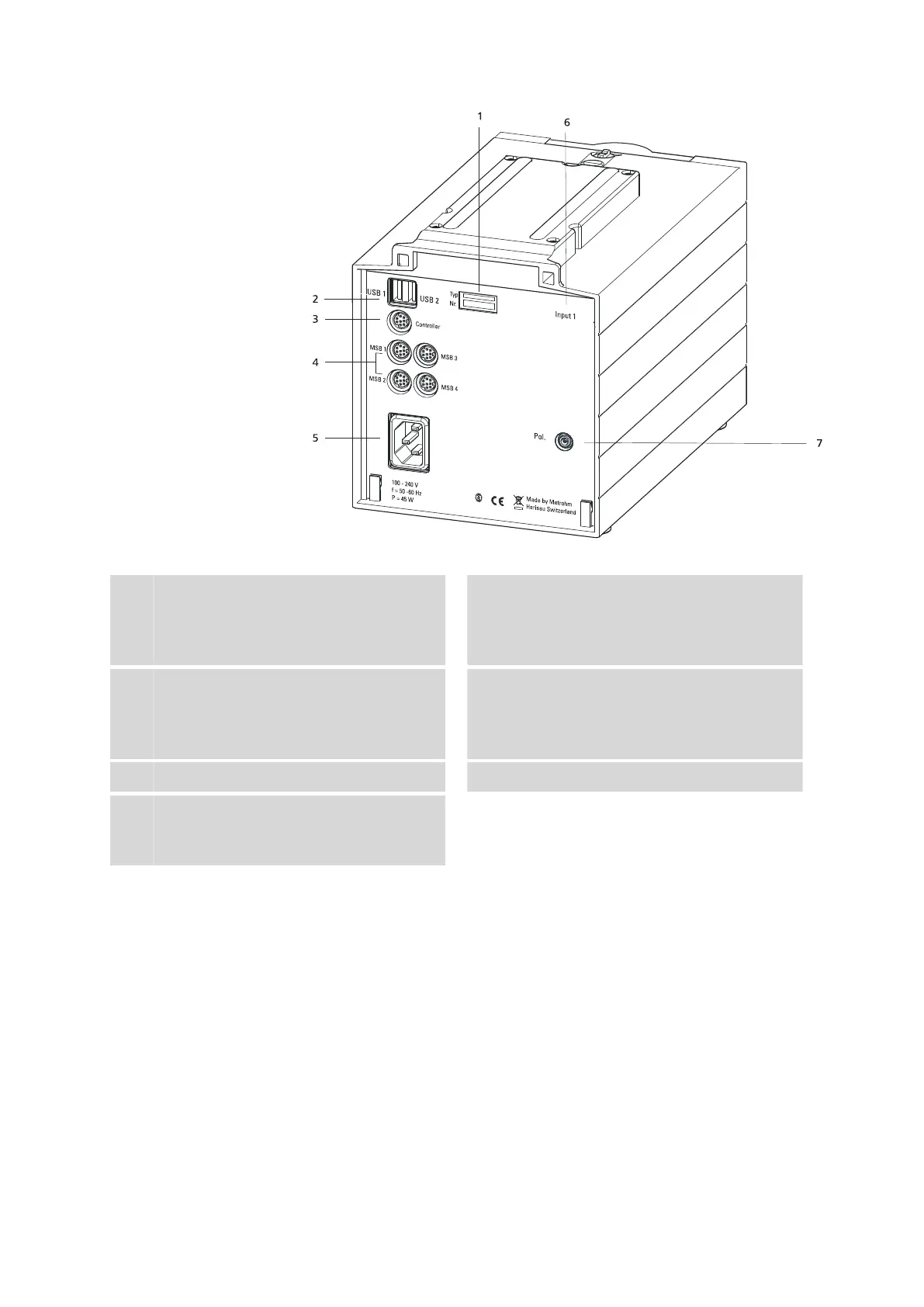

Figure 3 Rear 890 Titrando
1
Type plate
Contains specifications concerning supply
voltage, instrument type and serial number.
2
USB connector (USB 1 and USB 2)
USB ports (type A) for connecting printer,
keyboard, barcode reader, additional Titran-
dos, USB Sample Processor, etc.
3
Connector (Controller)
For connecting a Touch Control or a PC with
installed PC software. Mini DIN, 9-pin.
4
MSB connector (MSB 1 to MSB 4)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or Remote Boxes.
Mini DIN, 9-pin.
5
Power socket
6
Measuring interface 1 (Input 1)
7
Electrode connector (Pol.)
For connecting polarizable electrodes, e.g.
double Pt wire electrodes. Socket F.
