Metrohm Titrando 890 User Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
890 Titrando
￭￭￭￭￭￭￭￭
17

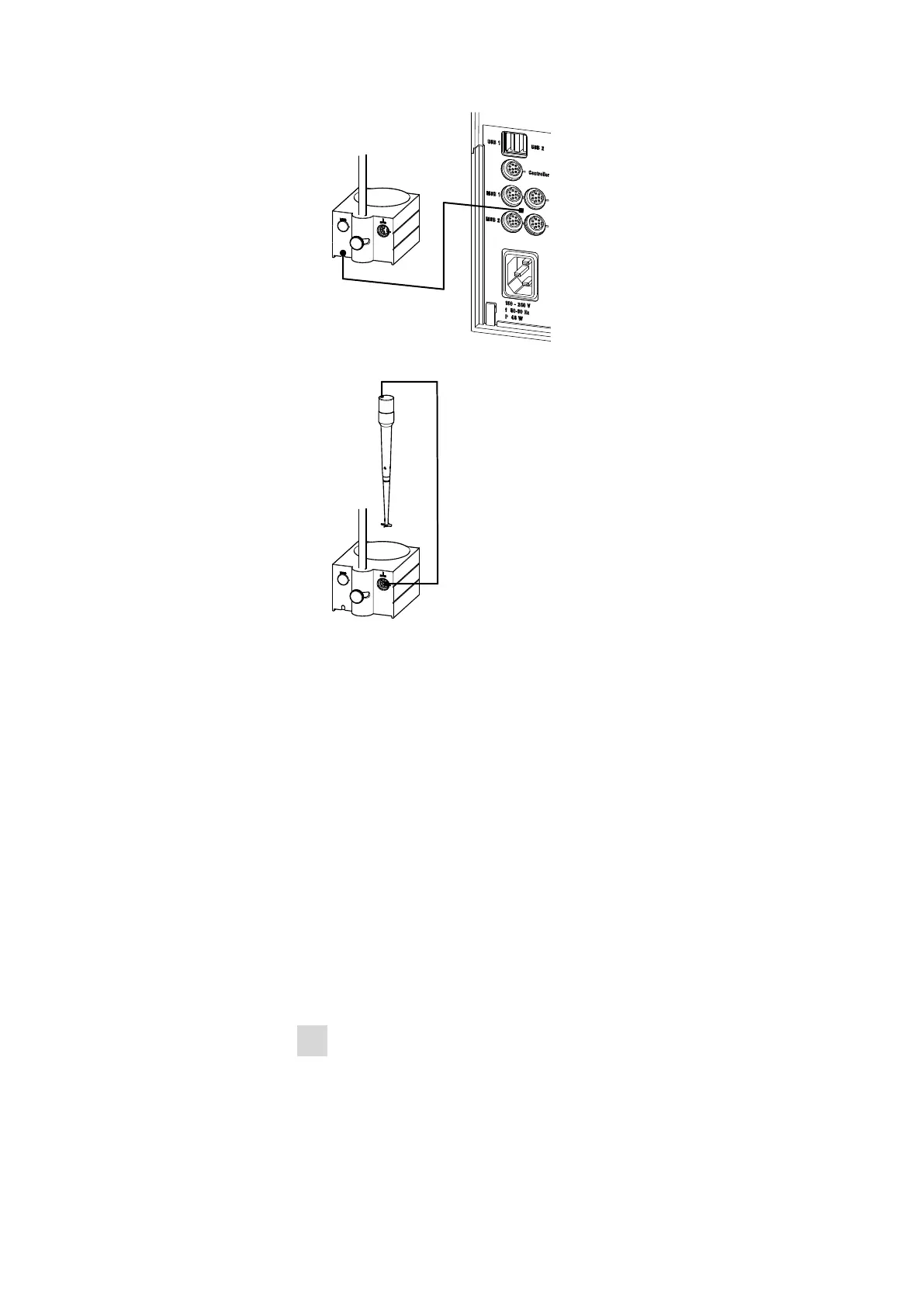

Figure 8 Connecting an MSB stirrer
Figure 9 Connecting the rod stirrer to the titration stand
3.3.3 Connecting a Remote Box
Instruments that are controlled via remote lines and/or that send control
signals via remote lines can be connected via the 6.2148.010 Remote Box.
In addition to Metrohm, other instrument manufacturers also use similar
connectors that make it possible to connect different instruments
together. These interfaces are also frequently given the designations "TTL
Logic", "I/O Control" or "Relay Control" and they generally have a signal
level of 5 volts.
Control signals are understood to be electrical line statuses or electrical
pulses (> 200 ms) which display the operating status of an instrument or
which trigger or report an event. Sequences on a variety of instruments
can thus be coordinated in a single complex automation system. However,
no exchange of data is possible.
Proceed as follows:
1
Connecting the Remote Box
￭ Exit the control software.
