36
PLATE ITEM 10
32
5
33
5
18
34
39
3
69
65
71
2
70
5
31
19
23
1
70
14
35
10
"BTM" ON UNDERSIDE OF
INDICATOR STOP ITEM 32
FACING COMPRESSION
70
NON FIRE-TITE
* RAILROAD HANDLES COME IN SEVERAL STYLES
*** FOR FIRE-TITE ONLY
AND MAY NOT MATCH THE IMAGE TO THE LEFT.
HOWEVER, HANDLE MOUNTING PROCEDURE WILL
STILL BE THE SAME.
** QTY. IS 2 FOR FIRE-TITE
QTY. IS 1 FOR NON FIRE-TITE
FIRE-TITE
PARTS LIST
ITEM NO. PART DESCRIPTION QTY.
1 BODY 1
2 INSERT 1
3 BALL 1
5 STEM 1
7 SEAT 2
10 COMPRESSION PLATE 1
14 STUD 2
18 LOCK NUT 2
19 IDENTIFICATION TAG 1
23 RIVET 3
31* HANDLE 1
32 INDICATOR STOP 1
33 CONICAL SPRING 1
34 RETAINING RING 1
35 HANDLE SCREW 1
36 GROUNDING SPRING 1
39 STOP BUSHING 2
65 BODY SEAL 1
69 STEM SEAL V-RING SET 1
70 STEM BEARING **
71*** SECONDARY STEM SEAL 1

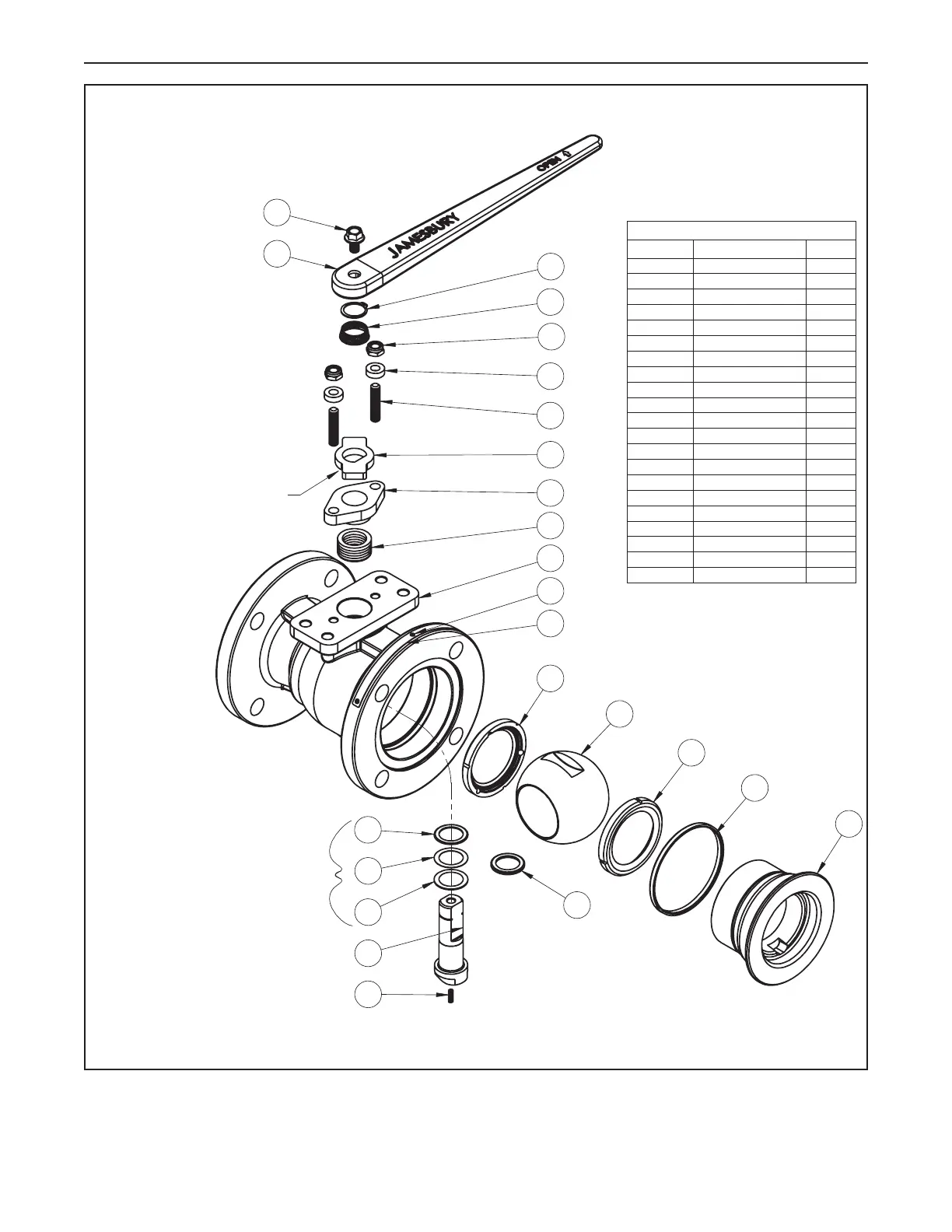

Figure 8
7 EXPLODED VIEW - VALVE
