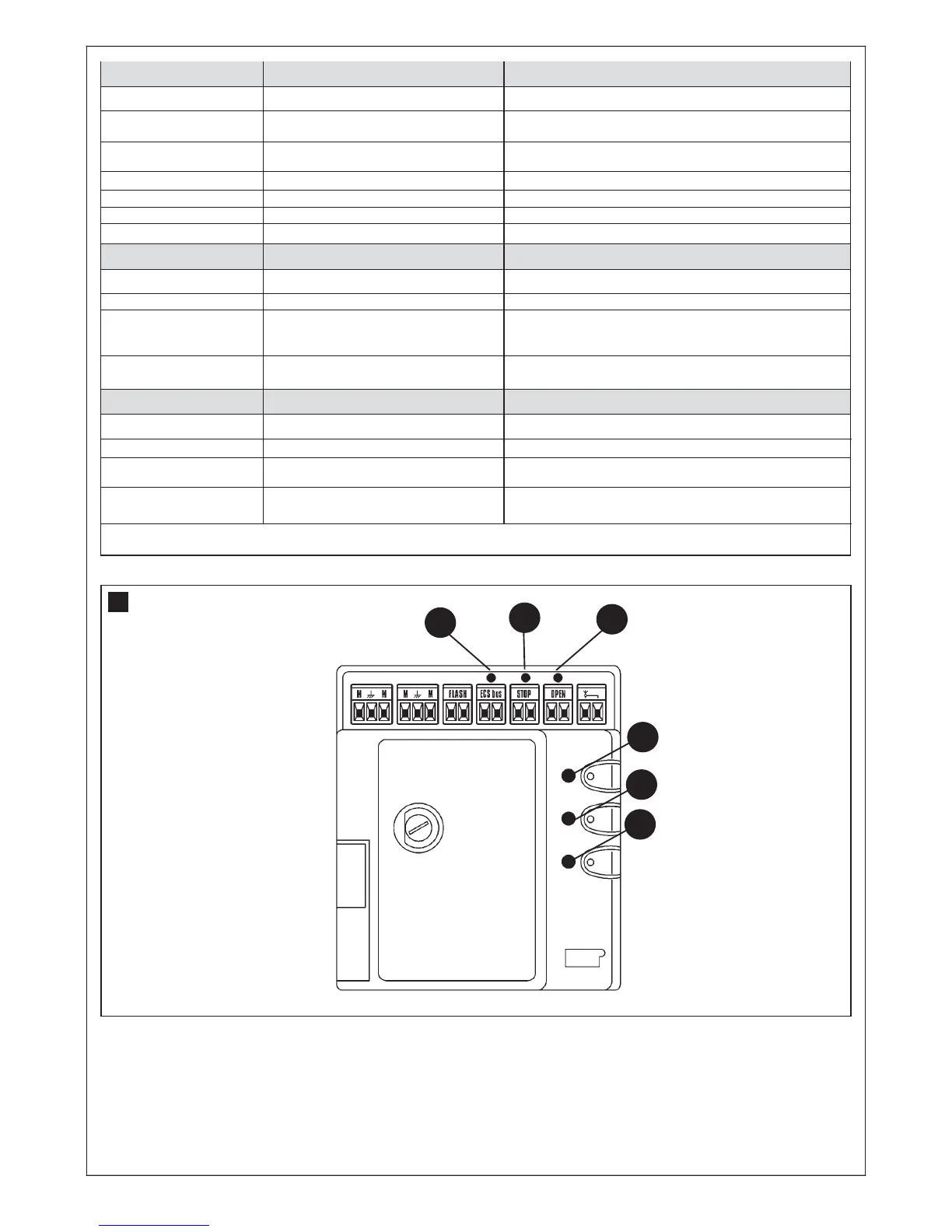

Mhouse ws2s - Page 25

23
P2 LED [E]
Off *
On
1 flash per second
2 flashes per second
Status
All OK
All OK
The recognition phase has not been per-
formed or there is a data error in the memory
Device recognition stage in progress
Action
“Slow” speed selected
“Fast” speed selected
Some faulty devices may be present; check and if necessary
repeat the device recognition phase (see paragraph 10.3.3 “Rec-
ognition of other devices”)
It indicates that the search for the connected devices is under-
way (this stage lasts a few seconds at the most).
P3 LED [F]
Off *
On
1 flash per second
2 flashes per second
Status
All OK
All OK
No opening angle memorised
Opening angle recognition phase is under-
way
Action
Cyclic operation
Complete cyclic operation
Perform the recognition phase (see chapter “3.5.2 Recognition of
leaf opening and closing angles”).
Opening angle recognition phase is underway.
* or it could be in “Standby” mode
P1 LED [D]
Off *
On
Series of quick flashes,
from 1 to 4
5 quick flashes
1 slow flash
3 slow flashes
5 slow flashes
Status
All OK
Memorisation in Mode 1
Memorisation in Mode 2
Deletion OK
Wrong command
Memorisation OK
Deletion OK
Action
No memorisation in progress.
This is normal during memorisation in mode 1 which lasts maxi-
mum 10 s.
This is normal during memorisation in mode 2 which lasts maxi-
mum 10 s.
Deletion of a transmitter successfully completed.
Command received from a transmitter which is not memorised
Memorisation successfully completed
All radio transmitters successfully deleted.
D
E
F
C
B
A
39
