Board Interface Description
2020 Microchip Technology Inc. DS50002927A-page 21
2.3.3 Potentiometer
The potentiometer on the Motor Control Board (shown in Figure 2-5) is connected to
one of the analog inputs of the device and can be used for setting the speed reference.

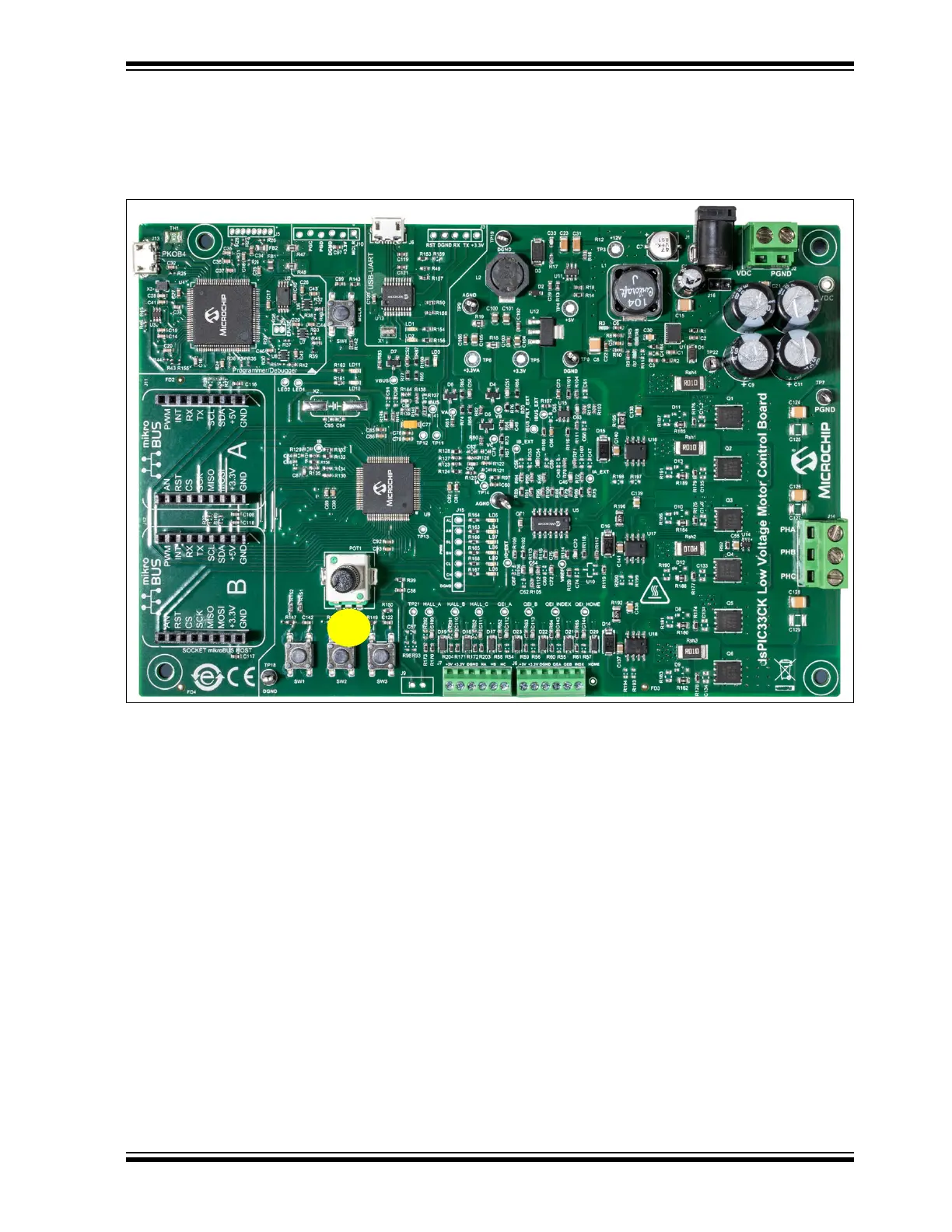

FIGURE 2-5: POTENTIOMETER – dsPIC33CK LOW-VOLTAGE MOTOR CONTROL BOARD
POT1
