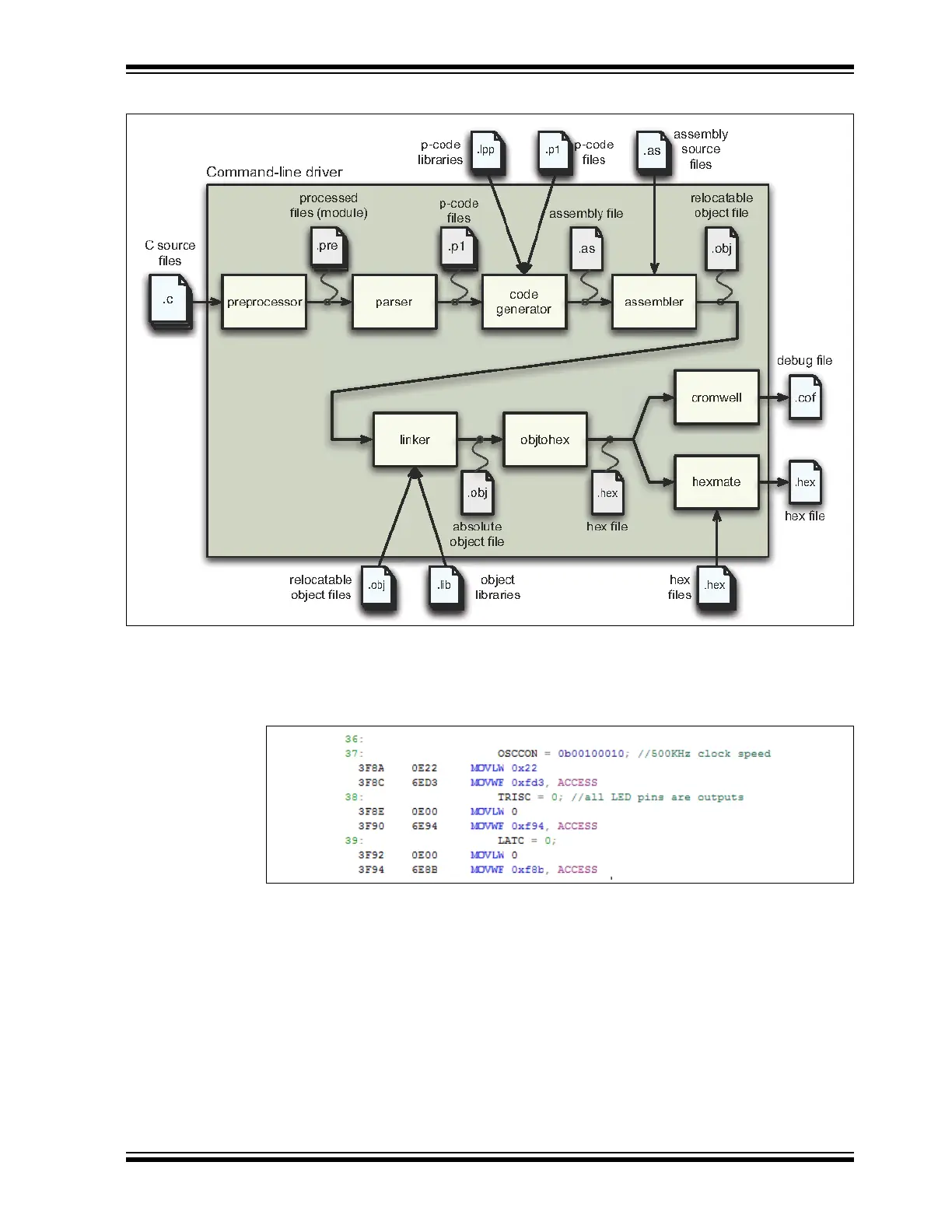

FIGURE 2-13: XC8 OPERATION
Notice how the output is the same for both the compiler/assembler – a hex file. The
assembly that the compiler generates can be seen in the disassembly window inside
of the MPLAB
®
IDE.
FIGURE 2-14: DISASSEMBLY FIGURE
Figure 2-14 shown above shows part of the disassembly of lesson 5. The ‘C’, which is
indented, is easier to understand and write. The assembly underneath it contains twice
as much code, and includes the PIC MCU specific instructions to achieve the desired
result of the ‘C’ above it.
