MICRODOS MP2- PH/RX User Manual

Rev 2.1 Cod. 00.009.105
24

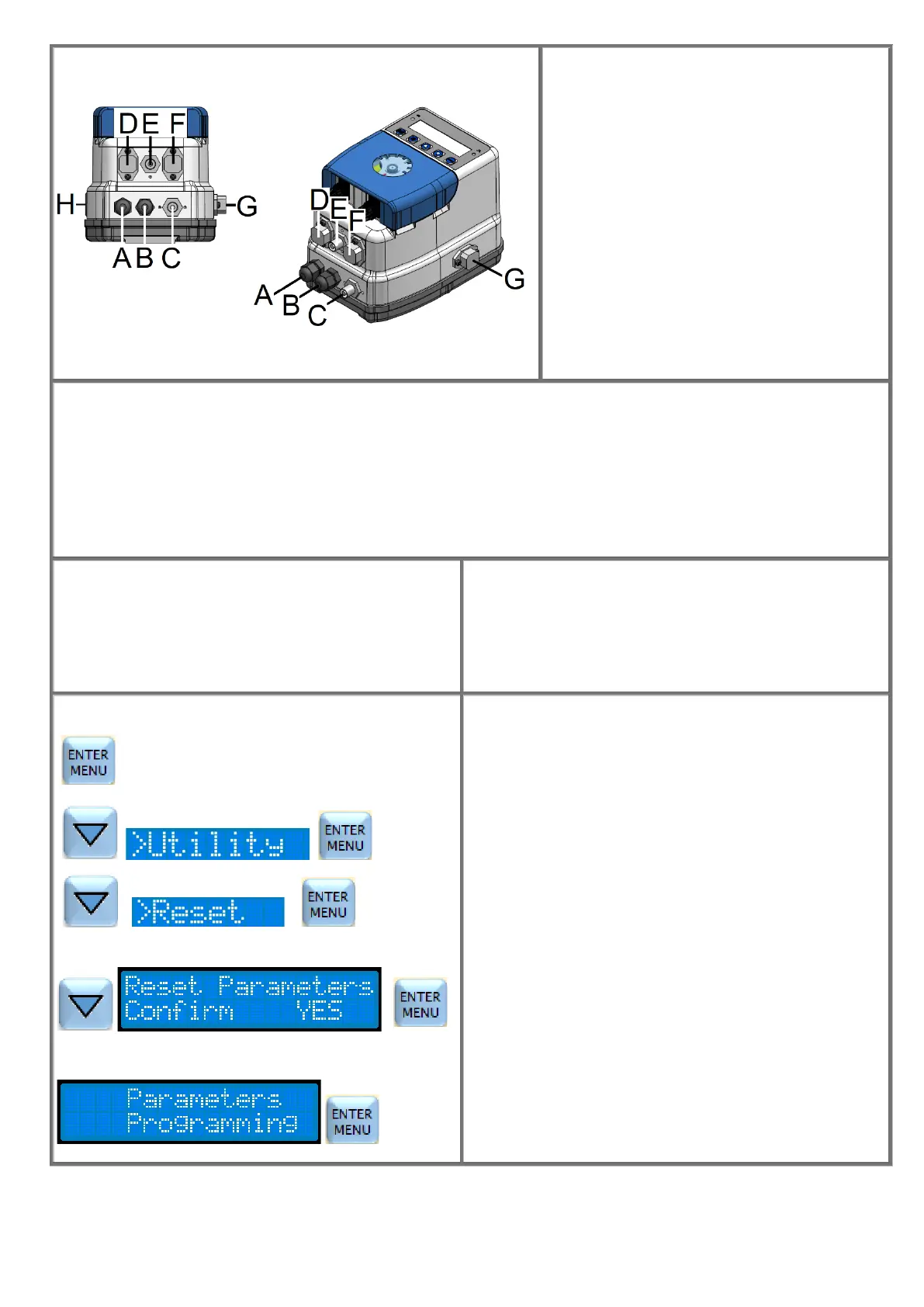

CONNECTIONS
A - Power cable, 90-250V-50-60Hz
B - Enable input (dosing consent)
(110Vac; 230Vac; upon request 24V).
OPTIONAL
C - BNC connector for pH probe or Rx probe.
D - Level probe connector (3 and 4 contacts).
OPTIONAL.
E - BNC connector for temperature probe.
OPTIONAL
F - Flow sensor connector (3 and 4 contacts).
OPTIONAL
G - Alarm output connector (3 and 4 contacts).
( 5A 250Vca/30Vdc) NORMALLY OPEN.
OPTIONAL
H – ON_OFF switch. OPTIONAL
DEFAULT SETTINGS
PASSWORD = Not programmed
Delay On: 0 minutes
Enable (optional): active
Broken Hose (optional): active
TAL: 0 unit (disabled)
Flow (optional): Normally Open
Temperature: PT100 (probe is optional)
pH:
• Dosing: Proportional
• SetP (setpoint): 7.2 pH
• T.MAX (maximum threshold):8.2pH
• Flow.Max (maximum flowrate): 80%
• Delay On: 3 sec (0-999sec)
Rx:
• Dosing: Proportional
• SetP (setpoint): 730mV
• T.MAX (maximum threshold): 630mV
• Flow.Max (maximum flowrate): 80%
• Delay On: 3 sec (0-999sec)
DEFAULT SETTINGS RESTORE
3sec
Keep pushing for 3 seconds the ENTER / MENU button to
enter into the programming menu.
Move the cursor > to Utility by pressing ▼. Push ENTER
button to enter the submenu.
Push ▼ button to move the cursor to “Reset”.
Push ENTER button to confirm.
By pushing the ▼ button choose “YES” to confirm and push
ENTER button.
Choose to restore the "Programming Parameters". Press
ENTER.
Automatically the pump restores the factory settings.
Press the ESC button for 3 seconds to exit programming.
