3.0 Hardware Features
3.1 IPn4G
The IPn4G is a fully-enclosed unit ready to be interfaced to external devices.
Any IPn4G may be configured as an Access Point, Station/Client, Repeater or Mesh Node. This
versatility is very convenient from a ’sparing’ perspective, as well for convenience in becoming
very familiar and proficient with using the device: if you are familiar with one unit, you will be
familiar with all units.
The IPn4G features:
 Standard Connectors for:
 1 Ethernet Ports (RJ45)
 COM0 Data Port (RS232/DB9)
 COM1 Console Port (RS232/DB9)
 4-Pin: MATE-N-LOK Type Connector for Power
 6-Pin: MATE-N-LOK Type Connector for RS485 Data
 Cellular Antenna (SMA Female Antenna Connection x2)
 WiFi Antenna (RP-SMA Female Antenna Connection) (Optional)
 Status/Diagnostic LED’s for STATUS, RF, SGNL, RSSI x 3
 CFG Button for factory default / firmware recovery operations
 Mounting Holes

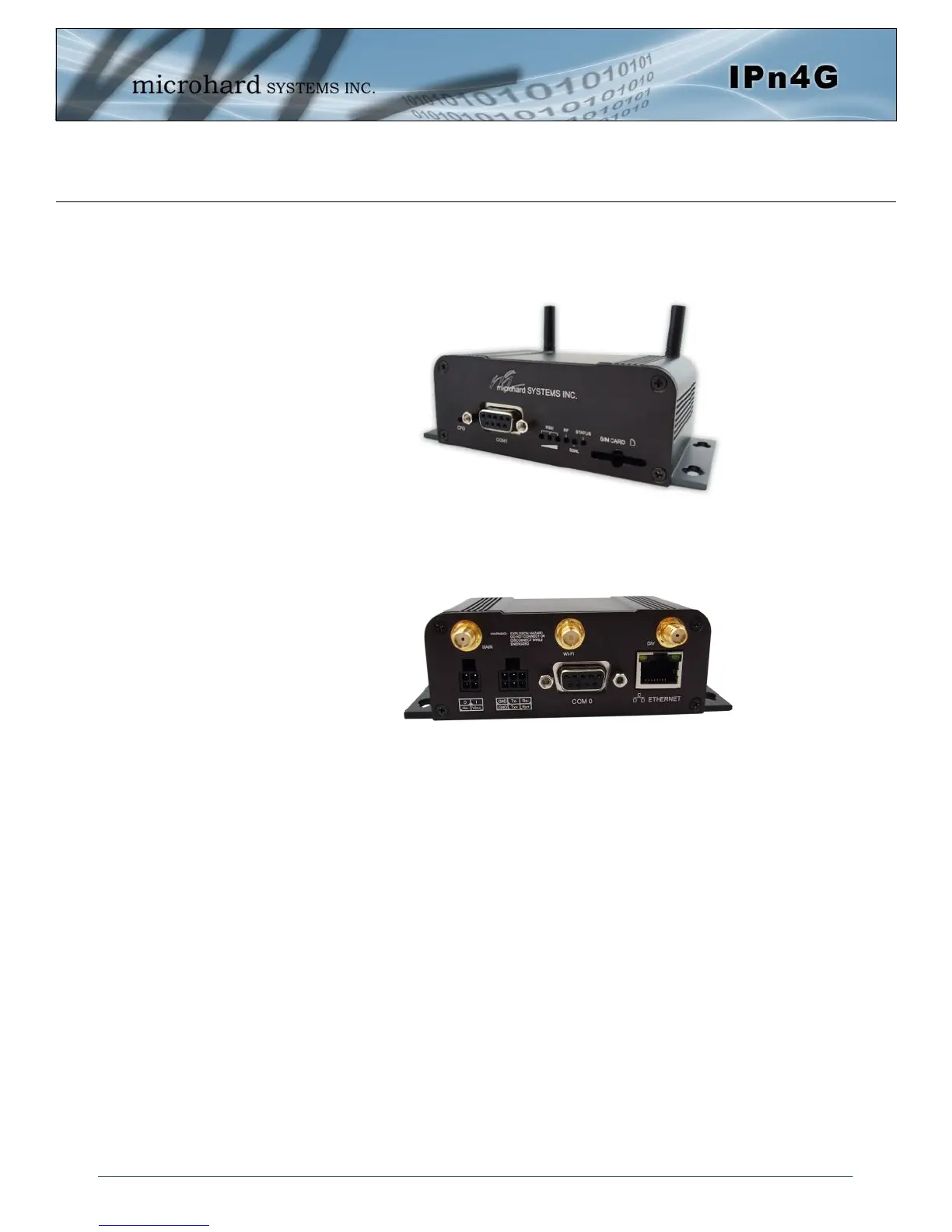

Image 3-1: Front View of IPn4G
Image 3-2: Rear View of IPn4G
