3.0 Hardware Features
3.1.1 Mechanical Drawings

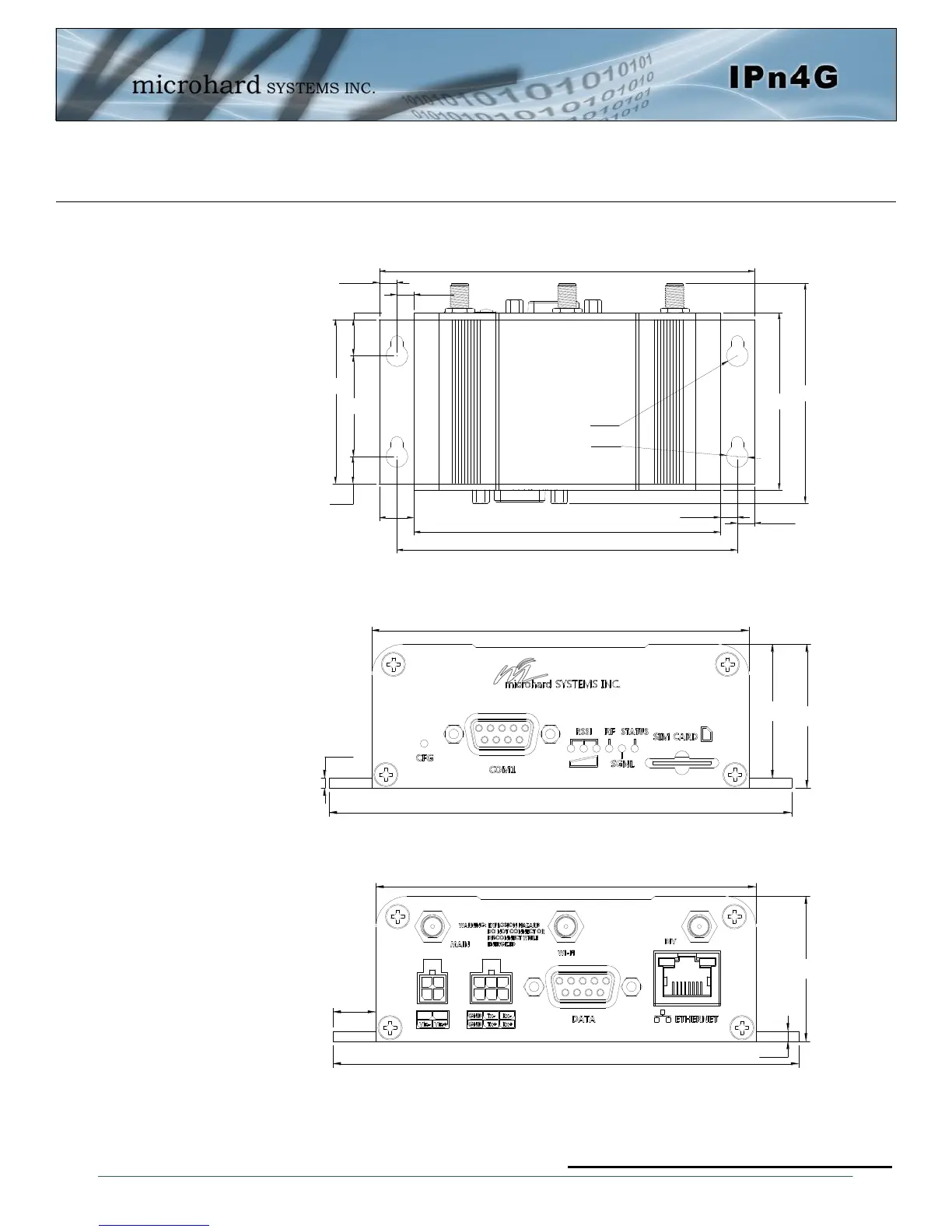

Drawing 3-1: IPn4G Top View Dimensions
Drawing 3-2: IPn4G Front View Dimensions
Drawing 3-3: IPn4G Rear View Dimensions
Note: All dimension units: Millimeter
32.07
52.20
8.60
11.53
56.20
69.81
119.70
Ø7.00
R3.50
108.50
97.70
11.00
5.40
5.60
5.60
5.40
97.70
119.70
37.20
2.60
34.60
119.70
37.20
97.70
11.00
2.60
O I
