MC-20
User Manual / Pneumatic, Electrical and Foot Pedal Connections
13/37
The following procedure will guide you through connecting the MC-20 to an air
compressor and outlet.

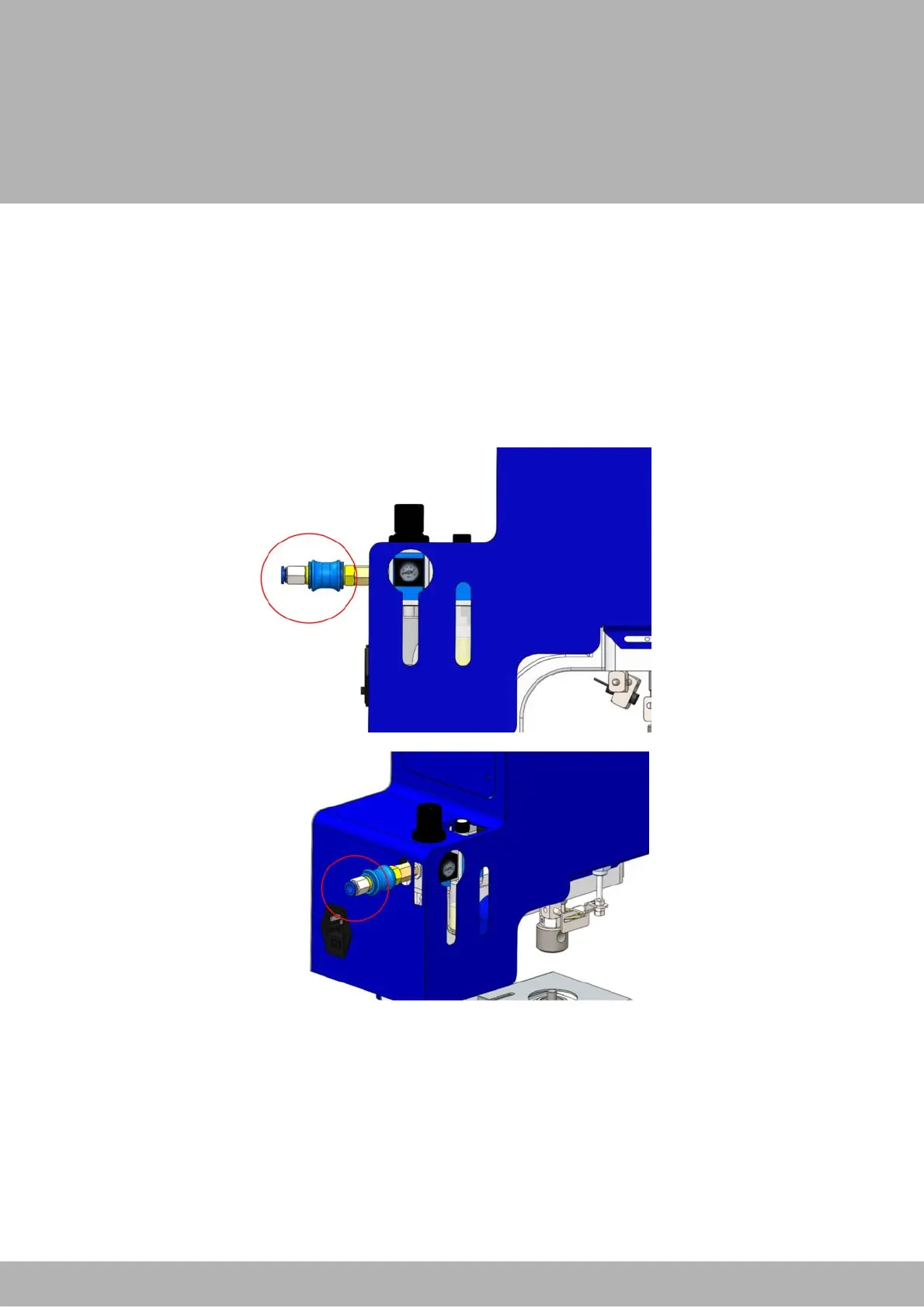

MC-20 Pneumatic, Electrical and Foot Pedal Connections
Connecting to the Air Compressor
1. Within the small box found with the MC-20 is a length of pneumatic tubing. One end
is intended for the MC-20.
2. The second end needs to have an adapter securely placed on it. The adapter does not
come with the hosing and must be purchased separately. This end is then inserted into
the air compressor according to the manufacturer’s instructions.
3. Turn the lever where the hose is inserted into the MC-20 so that it is parallel to the
fittings. This will allow air to flow into the machine.
