MC-20
User Manual / General Maintenance
29/37

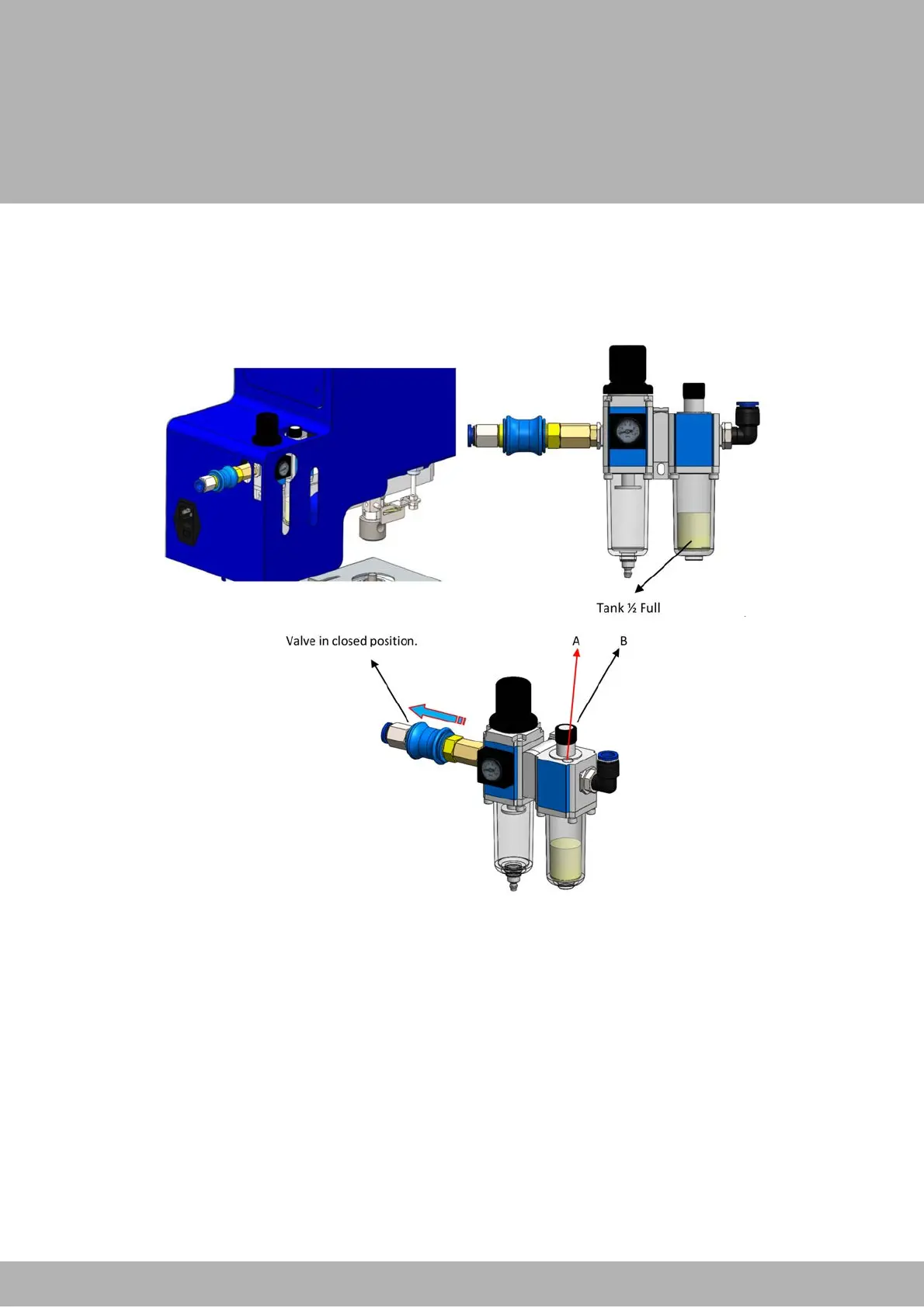

Oil Filling Process
1- Please switch machine air inlet valve off and ensure the air discharge by pressing
machine start button a few times.
2- Take out the oil filter plug (A) with compatible screwdriver by loosening.
Note: Please pay attention impermeability item (o-ring) on the plug.
3- Fill the Pneumatic System Oil up to half level of the tank from the hole where the pil
filter plug was taken out.
4- Replace the plug (A)
5- Pay attention that the button (B) which adjusts the amount of oil that will enter the
system has to be at 1 position.
Note: The average oil consumption will be a drop in 50-60 pressing.
