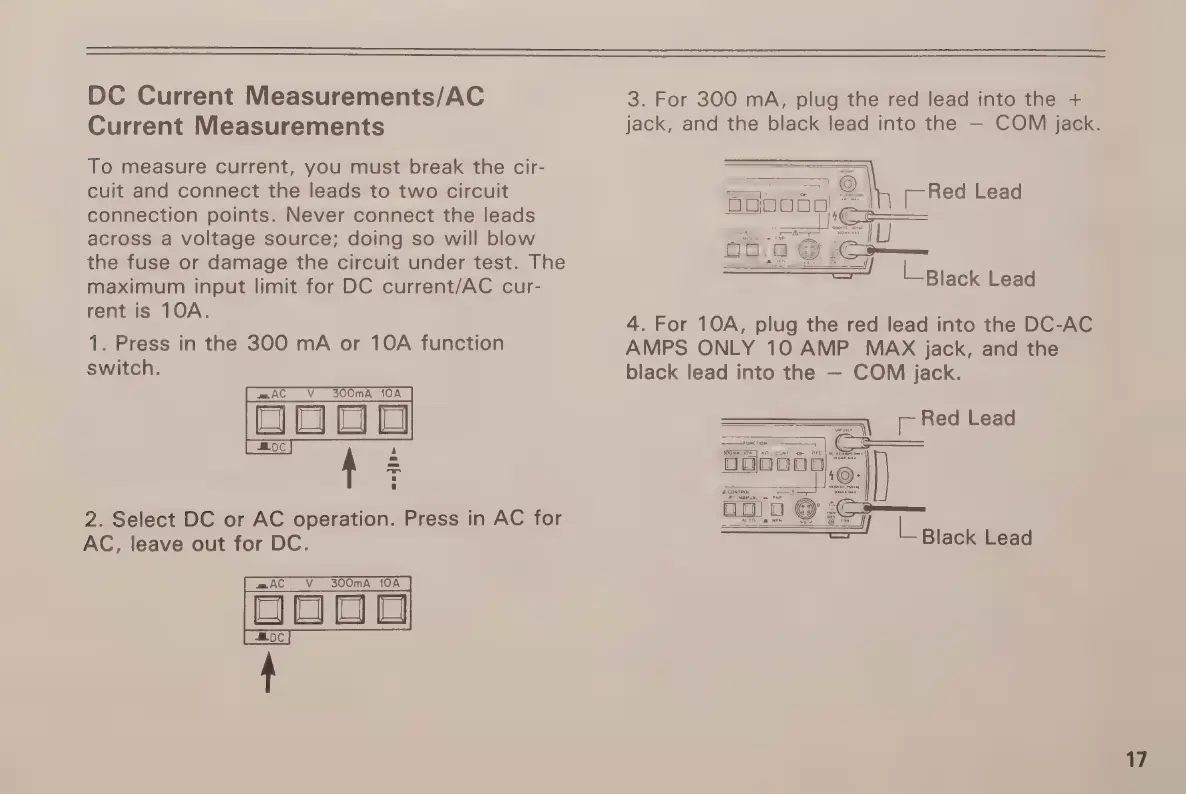

Micronta 22-195A - CURRENT MEASUREMENT CONNECTIONS; 300 mA and 10 A Connections

DC Current Measurements/AC
Current Measurements
To measure current, you must break the cir-
cuit and connect the leads to two circuit
connection points. Never connect the leads
across a voltage source; doing so will blow
the fuse or damage the circuit under test. The
maximum input limit for DC current/AC cur-
rent is 10A.
1. Press in the 300 mA or 10A function
switch.
am AC V 300mA 10A
gigg
2. Select DC or AC operation. Press in AC for
AC, leave out for DC.
sadjb>
mAC V 300mA 10A
OOOO
| OC]
i
3. For 300 mA, plug the red lead into the +
jack, and the black lead into the — COM jack.
m Red Lead
a= a E
BHIB ei ra »-—
L Black Lead
4. For 10A, plug the red lead into the DC-AC
AMPS ONLY 10 AMP MAX jack, and the
black lead into the — COM jack.
s Red Lead
— — ]runci
