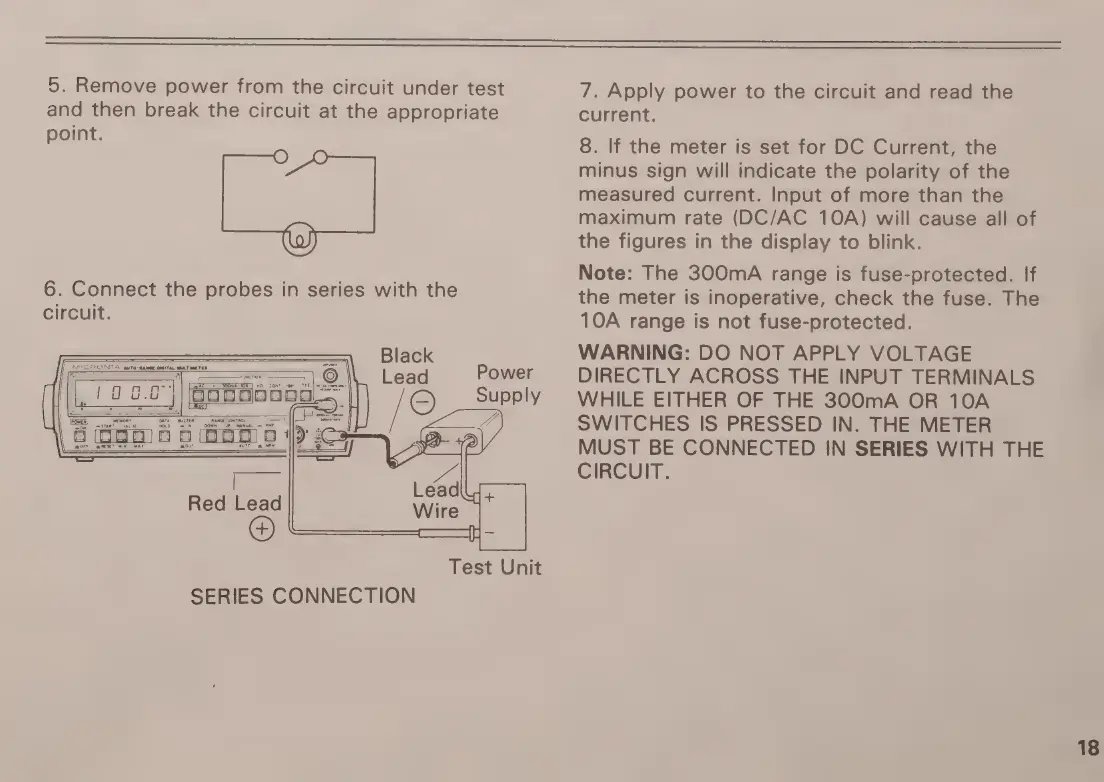

5. Remove power from the circuit under test
and then break the circuit at the appropriate
point.
6. Connect the probes in series with the
circuit.
Test Unit
SERIES CONNECTION
7. Apply power to the circuit and read the
current.
8. If the meter is set for DC Current, the
minus sign will indicate the polarity of the
measured current. Input of more than the
maximum rate (DC/AC 104A) will cause all of
the figures in the display to blink.
Note: The 300mA range is fuse-protected. If
the meter is inoperative, check the fuse. The
10A range is not fuse-protected.
WARNING: DO NOT APPLY VOLTAGE
DIRECTLY ACROSS THE INPUT TERMINALS
WHILE EITHER OF THE 300mA OR 10A
SWITCHES IS PRESSED IN. THE METER
MUST BE CONNECTED IN SERIES WITH THE
CIRCUIT.
