ee
————————————
ÁÓMÓMMM
a
aaa
aaa
SSS

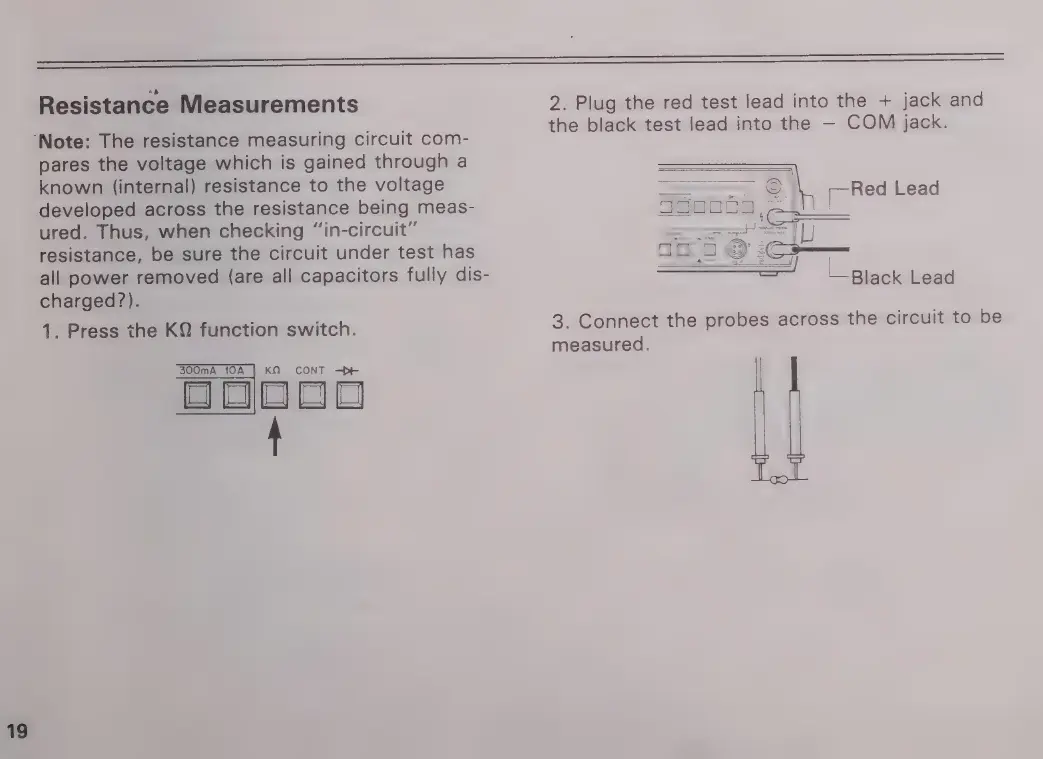

Resistance
Measurements
‘Note:
The
resistance
measuring
circuit
com-
pares
the
voltage
which
is
gained
through
a
known
(internal)
resistance
to
the
voltage
developed
across
the
resistance
being
meas-
ured.
Thus,
when
checking
“in-circuit”
resistance,
be
sure
the
circuit
under
test
has
all
power
removed
(are
all
capacitors
fully
dis-
charged?
).
1.
Press
the
KQ
function
switch.
300mA
10A
KQ
CONT
+
2.
Plug
the
red
test
lead
into
the
+
jack
and
the
black
test
lead
into
the
COM
jack.
r-Red
Lead
A
I
=]
T
|
3.
Connect
the
probes
across
the
circuit
to
be
measured.
