Chapter 4 Optics and Lighting
4-6 MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
Machine Vision Lighting Principles
Proper lighting is critical to the success of a machine vision application. The MicroHAWK
features integrated lighting (built-in red LEDs for monochrome sensors and white LEDs for
color sensors). Depending on the requirements of your application, you may also need
external lighting from Microscan’s NERLITE family of machine vision lighting products.
Consider the following when setting up your application:
• Is the surface of the object flat, slightly bumpy, or very bumpy?
• Is the surface matte or shiny?
• Is the object curved or flat?
• What is the color of the object or area being inspected?
• Is the object moving or stationary?
Machine vision lighting should maximize contrast of the areas or features being inspected
while minimizing the contrast of everything else.

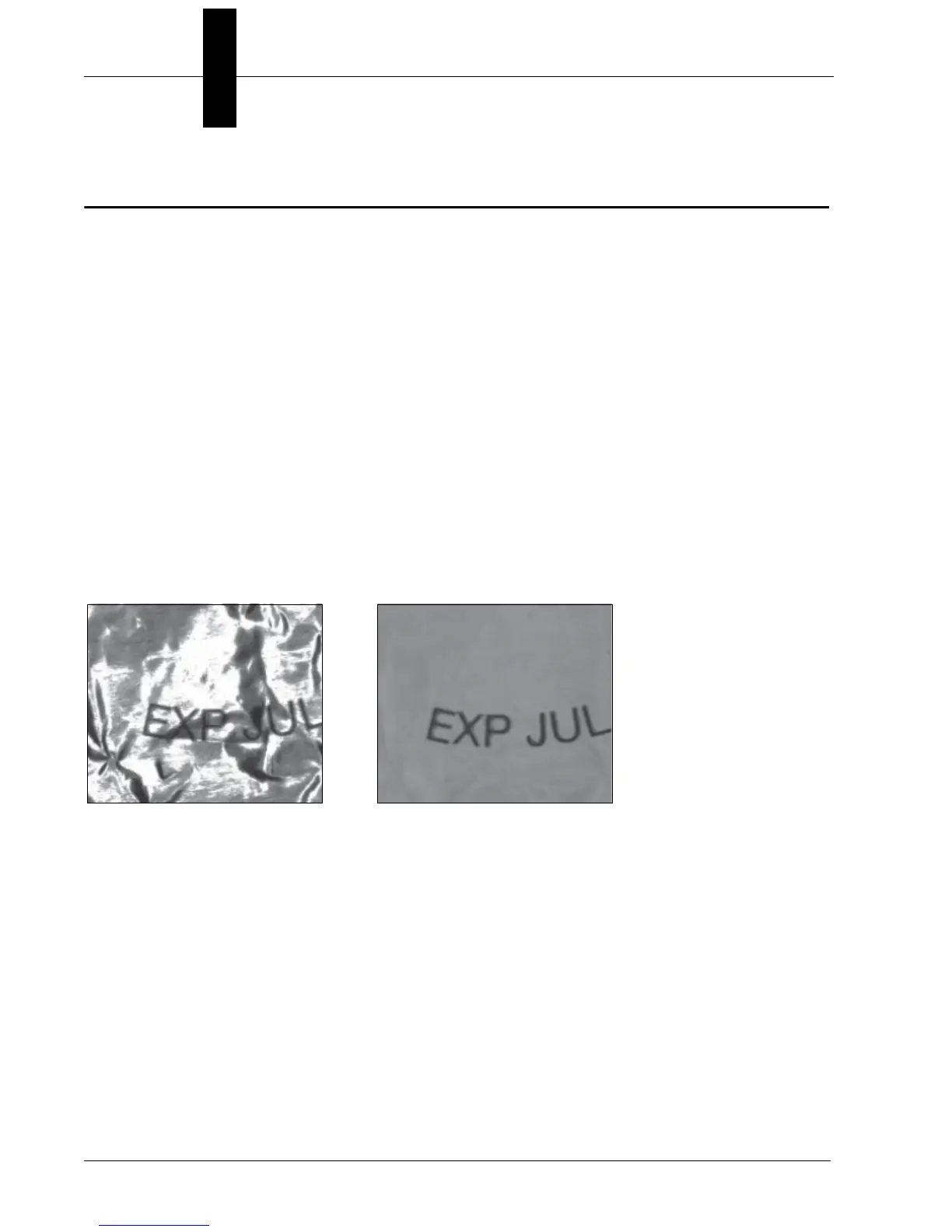

Before correct lighting After correct lighting with a
NERLITE Illuminator
