SA.22c Rubidium Oscillator
Designer Reference and User Guide Revision D 38
7.9.2 Initialization
During initialization, the algorithm sets up variables based on the time constant (TC) and damping factor
(DF). The SA.22c checks for 1PPS input once per second, and if present, it enters the holdover state.
Automatic mode is used when the time constant is set to 0. The SA.22c 1PPS is in the initialization state
when no 1PPS is applied. The j command shows the 1PPS count.

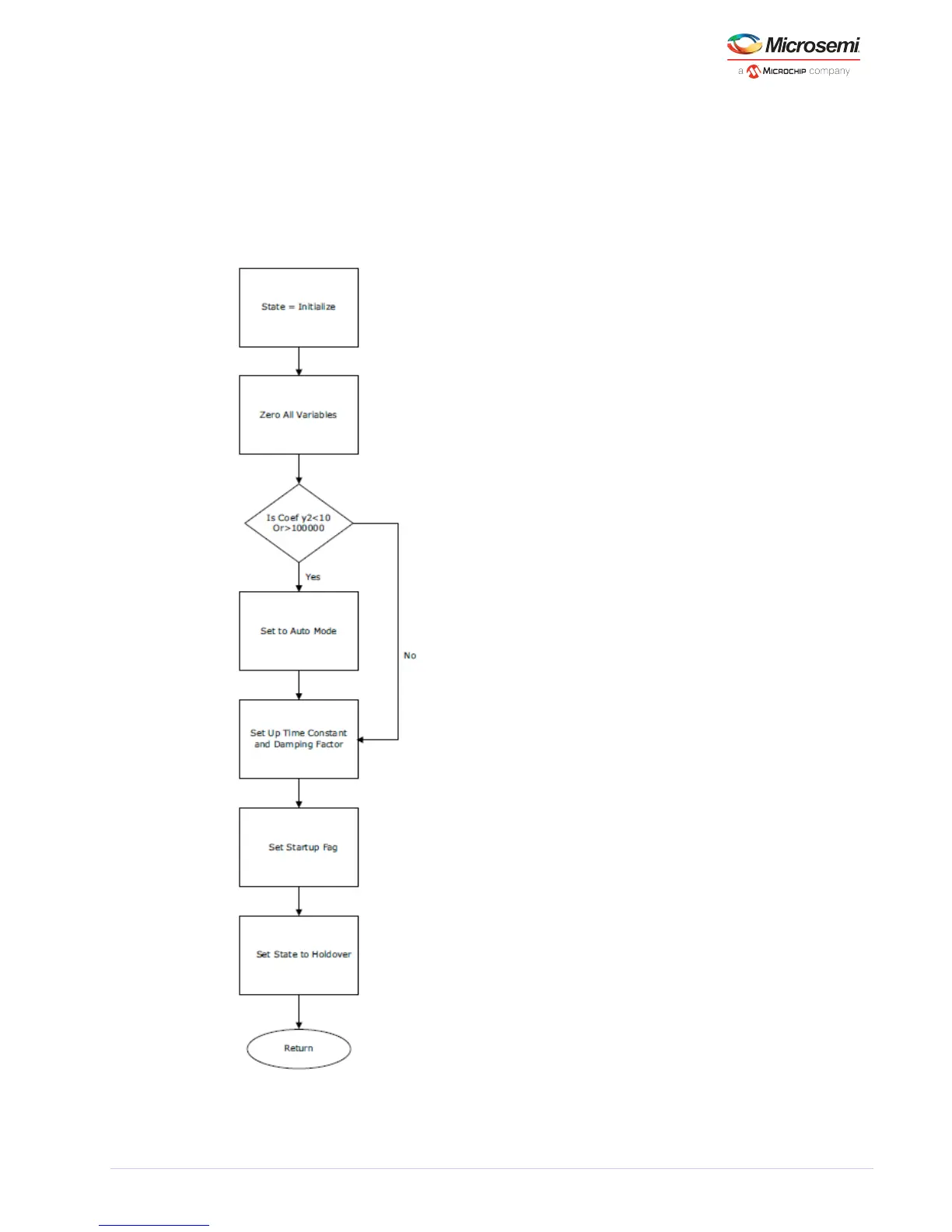

Figure 22 • SA.22c Initialize State
