SA.22c Rubidium Oscillator
Designer Reference and User Guide Revision D 40
7.9.4 Calcslope
The frequency difference between the SA.22c and the 1PPS source is calculated, and if the difference is
<±3 × 10 , the state changes from holdover to JamSynch. This state executes every 120 s during
–9
holdover.

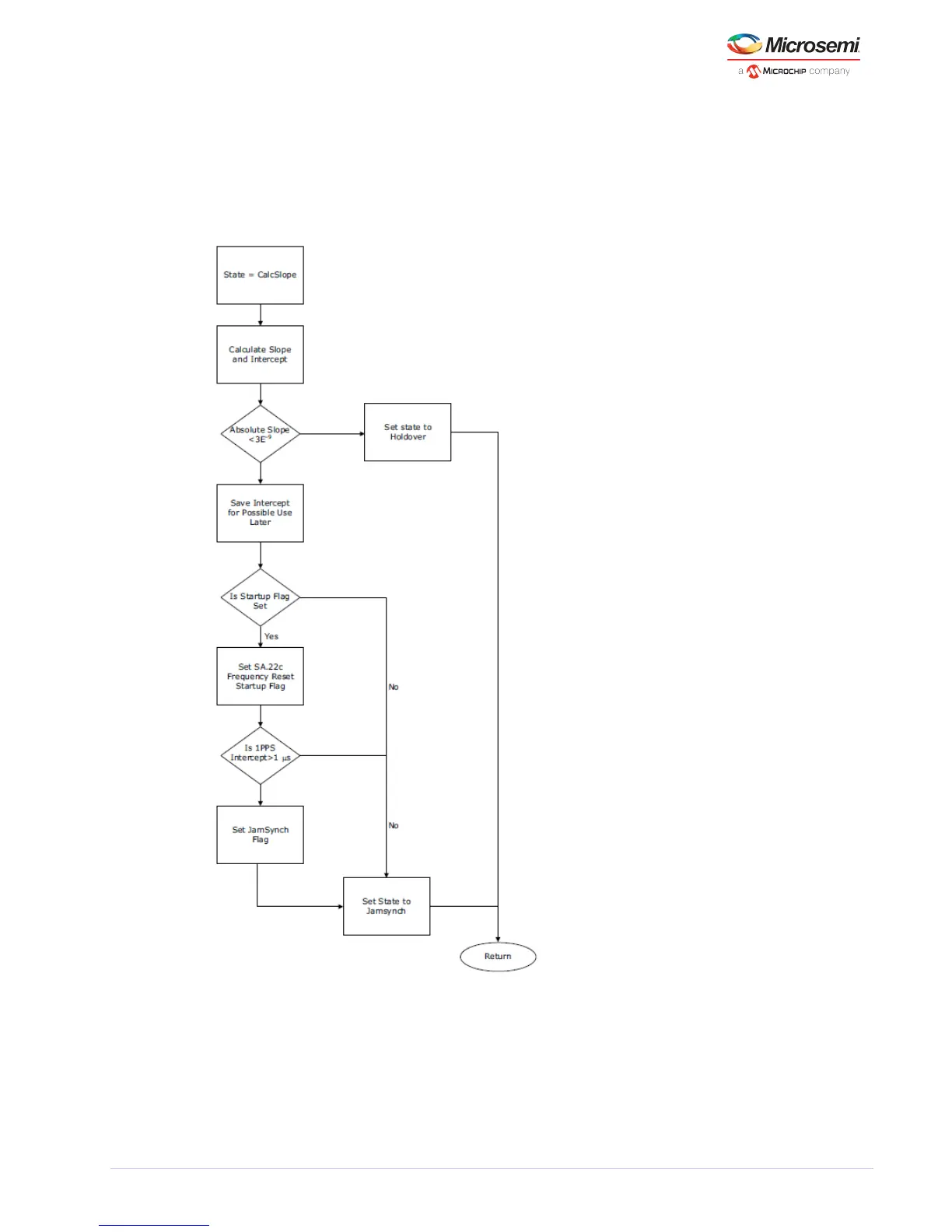

Figure 24 • SA.22c Calcslope State
