Flight Mode / ATTITUDE OPERATION
ATTITUDE OPERATION

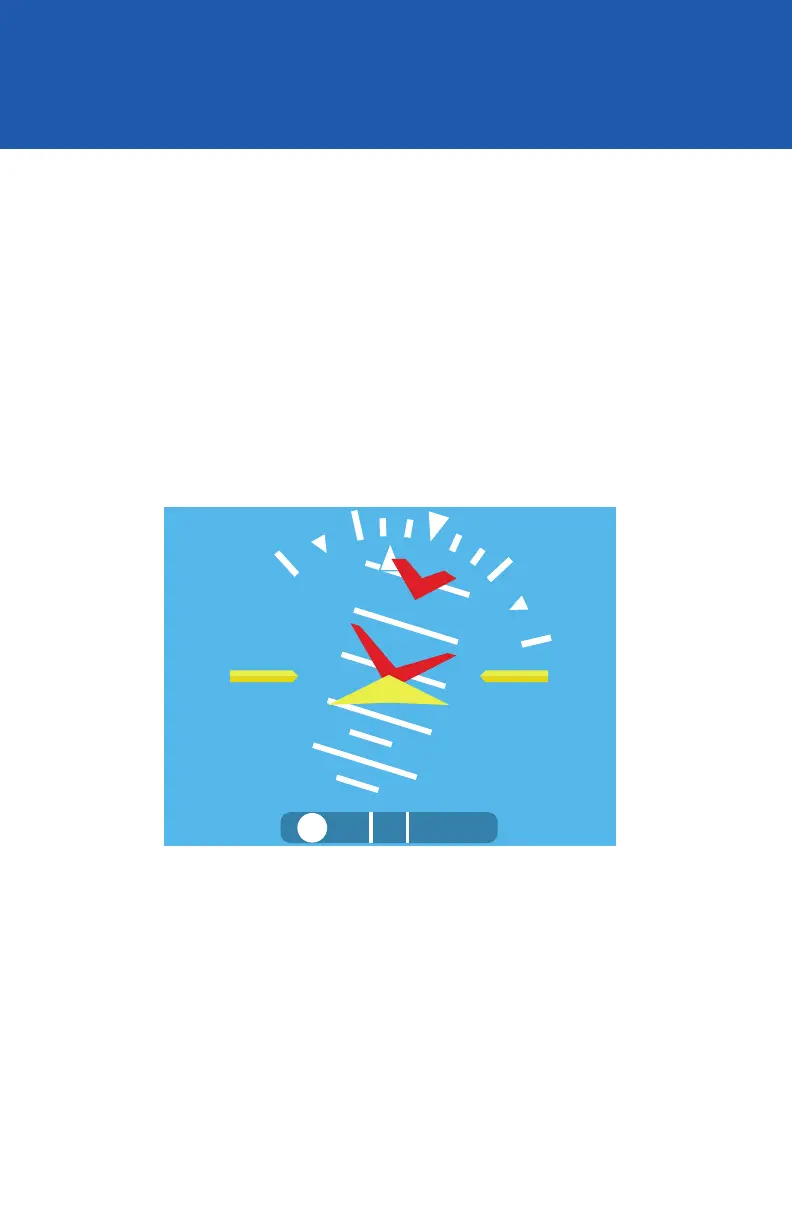

This image demonstrates 50° pitch up and
18° left turn. Red chevrons point to the horizon line.
Image 5
REV. F Sept 15, 2015 Manual Number 9017846
6
30
30
6060
50
50
40
40
A series of chevrons (^) will appear overlaid on the Pitch Scale
at attitudes greater than ± 45°. This is to indicate to the pilot the
direction of the horizon for quick reference when in an unusual pitch
attitude (Image 5). The chevrons always point toward the horizon line.
