Middleby Marshall PS520E - Oven Dimensional Diagrams; Single Oven Dimensions and Views; Double;Triple Oven Dimensions

6
SECTION 2
INSTALLATION

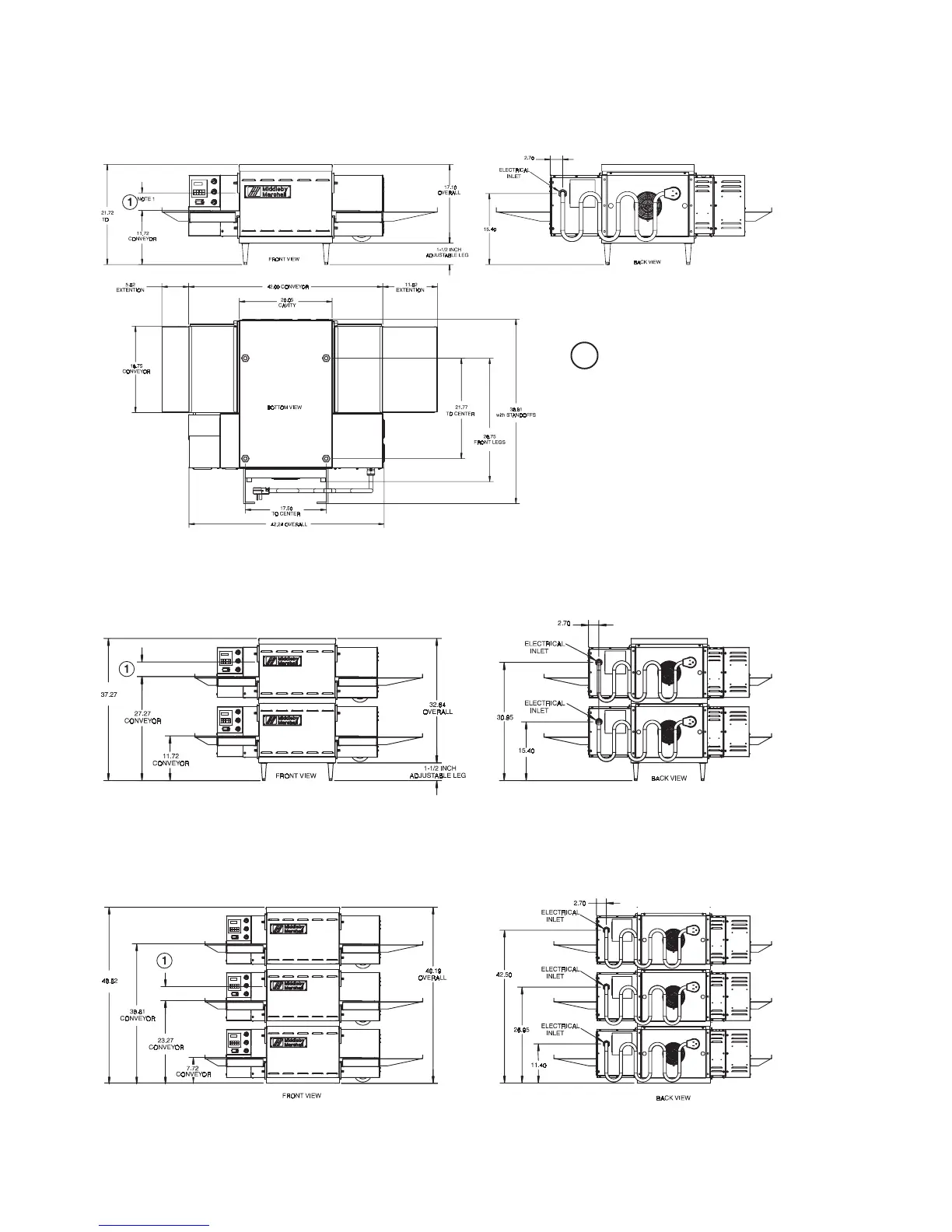

Figure 2-5. MODEL PS520 SINGLE OVEN DIMENSIONS
Figure 2-6. MODEL PS520 DOUBLE OVEN DIMENSIONS
Figure 2-7. MODEL PS520 TRIPLE OVEN DIMENSIONS
The Opening Height is Adjustable
from 2-1/4 inch minimum to 3-3/4
inch maximum in 1/2 inch
increments.
1
