-180A/WS Service Manual

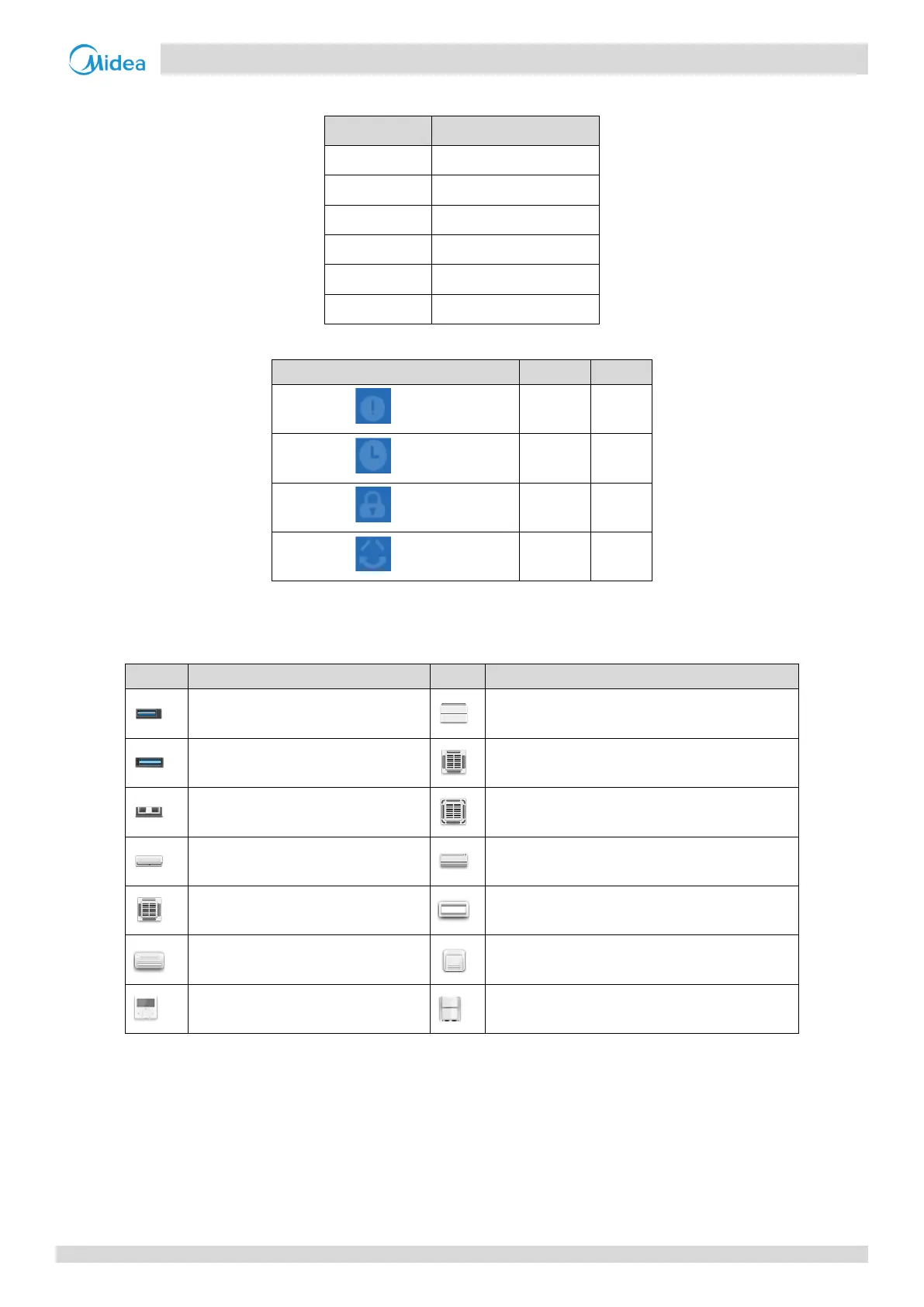

Table 5 Operating mode, status and corresponding color
Color
Operation Mode
Blue
AUTO (automatic)
Red
HEAT (heating)
Green
FAN (air supply)
Light blue
COOL (cooling)
Purple
DRY (dehumidifying)
Gray
ERROR/OFFLINE/OFF
Table 6 Icons and corresponding models
Icon
Model
Icon
Model
Low static pressure and middle
static pressure (L-DUCT/M-DUCT)
Vertical concealed installation/vertical
surface mounting (FS)
High static pressure (H-DUCT)
Four-way Cassette
Purifier (FAPU)
Compact Four-way Cassette (COMPACT)
Wall mounting (WALL)
Ceiling-floor type (C&F)
Old IDU (1st Gen. IDU)
Two-way Cassette
One-way Cassette
CONSOLE
Group control device icon
New ODU (New generation ODU)
IDU function description and icon
Invalid
Valid
Fault
Off
On
Schedule
Off
On
Lock
Off
On
Swing
Off
On

Midea CCM-180A/WS Specifications

General

Brand	Midea
Model	CCM-180A/WS
Category	Air Conditioner
Language	English
