1 CCM-180A/WS
201803 29
CCM
-180A/WS Service Manual
2. First create a group. Tap the "Edit Groups" button marked "1" in Figure 38 to access the interface shown in Figure 39.

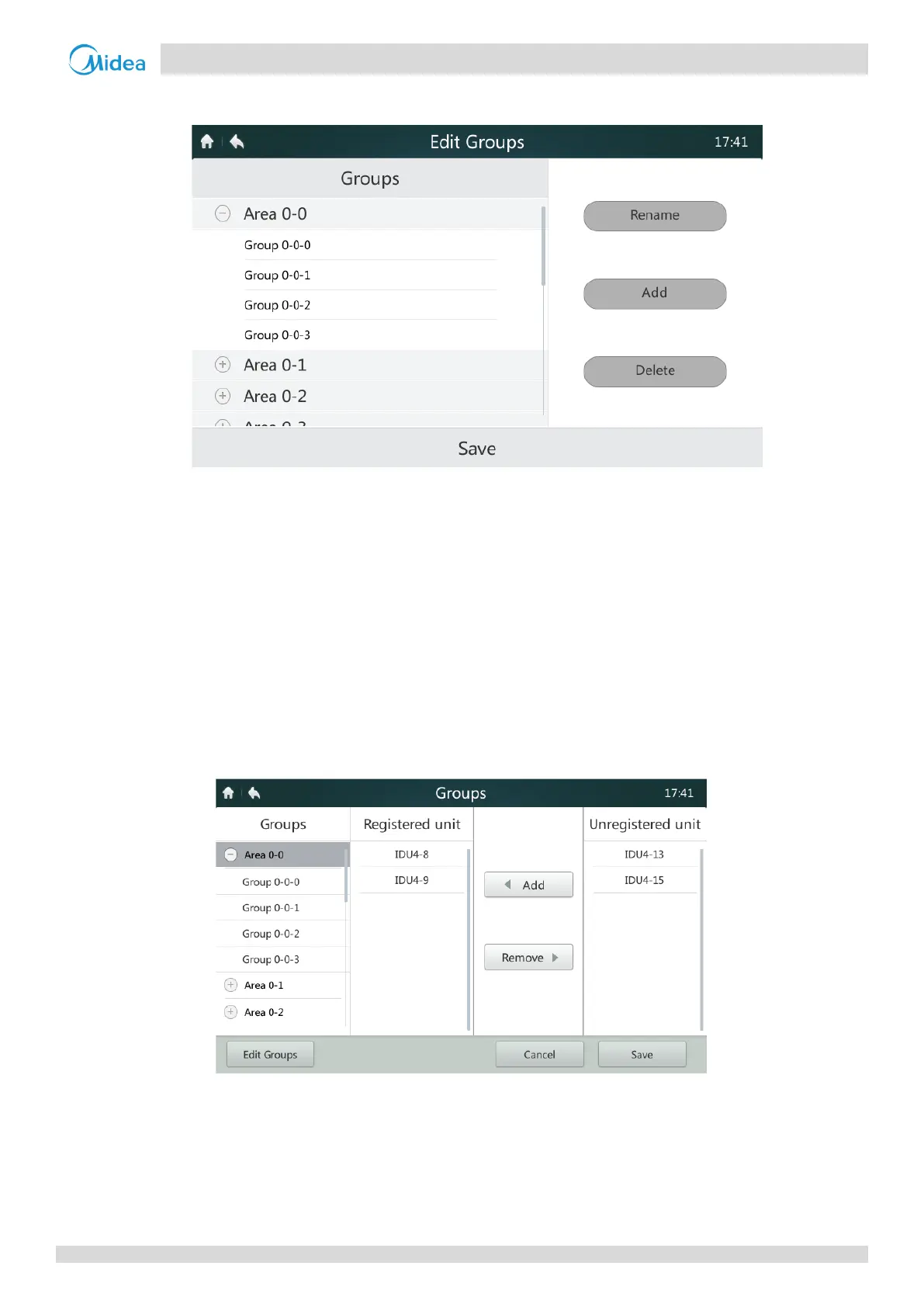

Figure 39 Editing a group
3. Groups can be classified into two levels (e.g.: level 1 - Area; level 2 - Group). Up to 10 groups can be created at level 1.
Up to 5 groups can be created at level 2. Tap the "Add" button, as shown in Figure 38, to add the first level group by
default. Tap to select the first level Area. Tap the "Add" button to add the second level group. To delete a group, select this
group, and tap "Delete".
4. Select a group and tap "Rename", as shown in Figure 39, to edit the selected group name.
5. Tap the "Save" button, as shown in the lower part of Figure 39, to save the edited information.
4.5.3 Adding/Deleting a Device in Group
1. The user needs first to create groups. After groups are created, the group view page is displayed, as shown in Figure
40.
Figure 40 Homepage 2 of Group View page
2. Tap to select the group on the left for adding or deleting IDUs, as shown in Figure 40.
3. Tap to select a group on the right ungrouped device list, as shown in Figure 40. Tap the "Add" button to add it to the
selected group. The device will be displayed in the grouped device list.
4. Alternatively, tap a device in the grouped device list. Tap the "Remove" button to delete the device from the group.
