步骤
4:
用十字螺丝刀拧开风机组件顶部固定的四颗螺钉和蜗壳支脚安装的一颗螺钉，
最后将风机
组件从机箱内拿出来，如图。

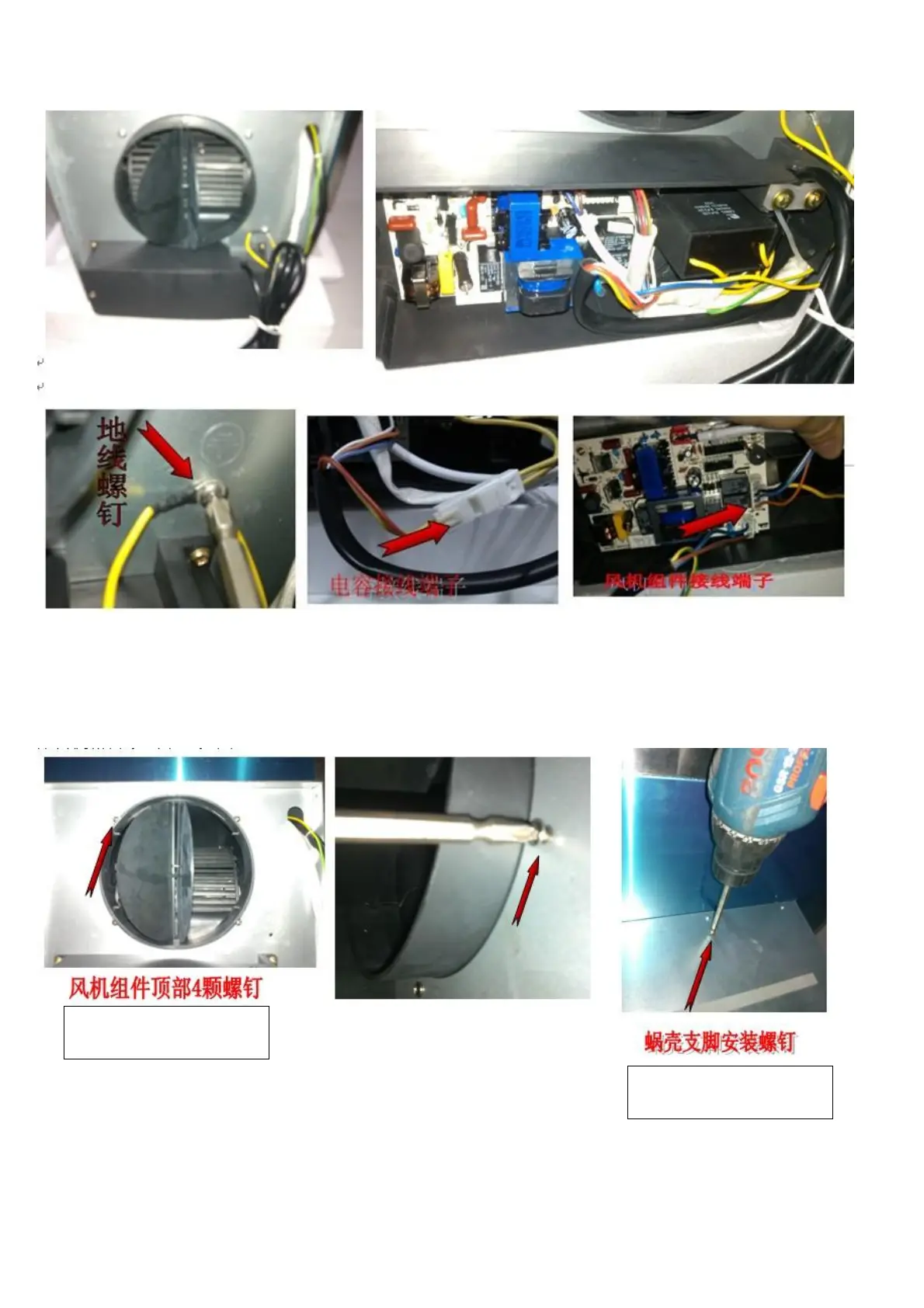

Step4: twist of
f the four screws fixing the fan assembl
y
top with cross screwdriver and one screw of
volute foot, then take out fan assembly from the bod
y
, as shown in the picture.
Install
ation
screw
of
volute
foot
Four
scr
ews
on
the
top
of
fan assem
bly
19
21
