3.2.2 电子式开关 Electronic Switch

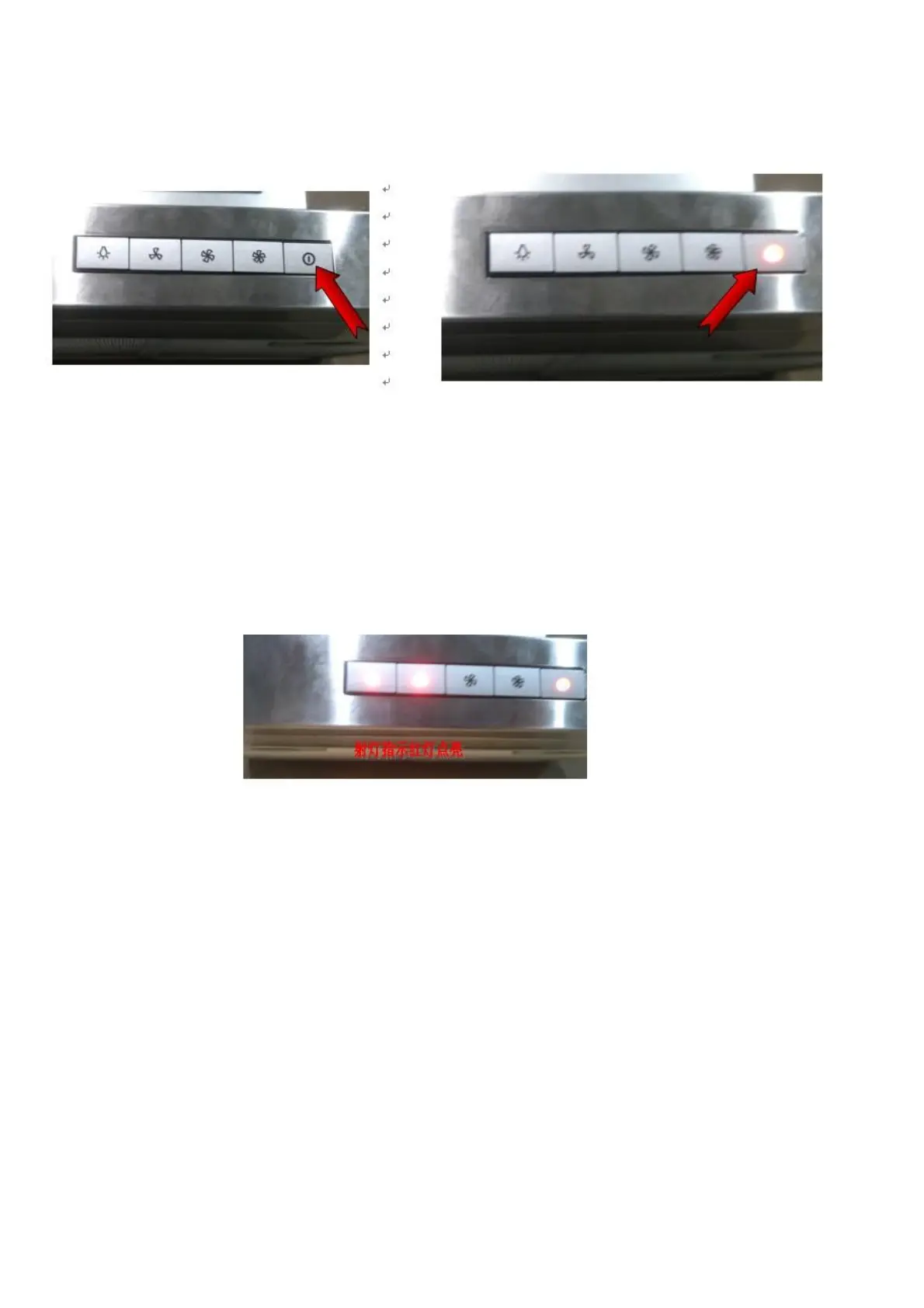

如图红色箭头所指按键是抽油烟启动键，按下启动键后启动键亮红灯，且风机默认档位启动并亮
红灯，这时可以根据需要按下风挡按钮选择三档不同的风量。在正常工作状态下再按一下启动键，油
烟机进入延时3min关闭状态，且自动切换为小档运行。在正常工作状态下按两下启动键，油烟机吸油
烟功能立即关闭。
As shown in the picture, the button indicated by red arrow is smoke exhaust start, press the “start”
button, it shines red light and fan default setting starts and shines red light, at this moment, according to the
demand, press the speed setting button to choose three different airflow. Under normal work condition, press
the “start” button again, range hood enters 3min delay off status and is automatically switched to low speed.
Press the “start” button twice under normal work condition, the smoke absorption function of range hood is
shut down immediately.
注意：各产品具体功能及操作请参照相应产品说明书！
Note: please refer to the instruction book of relevant product in terms of the
specific function and operation of each product.
4. 电路图 Circuit Diagram
