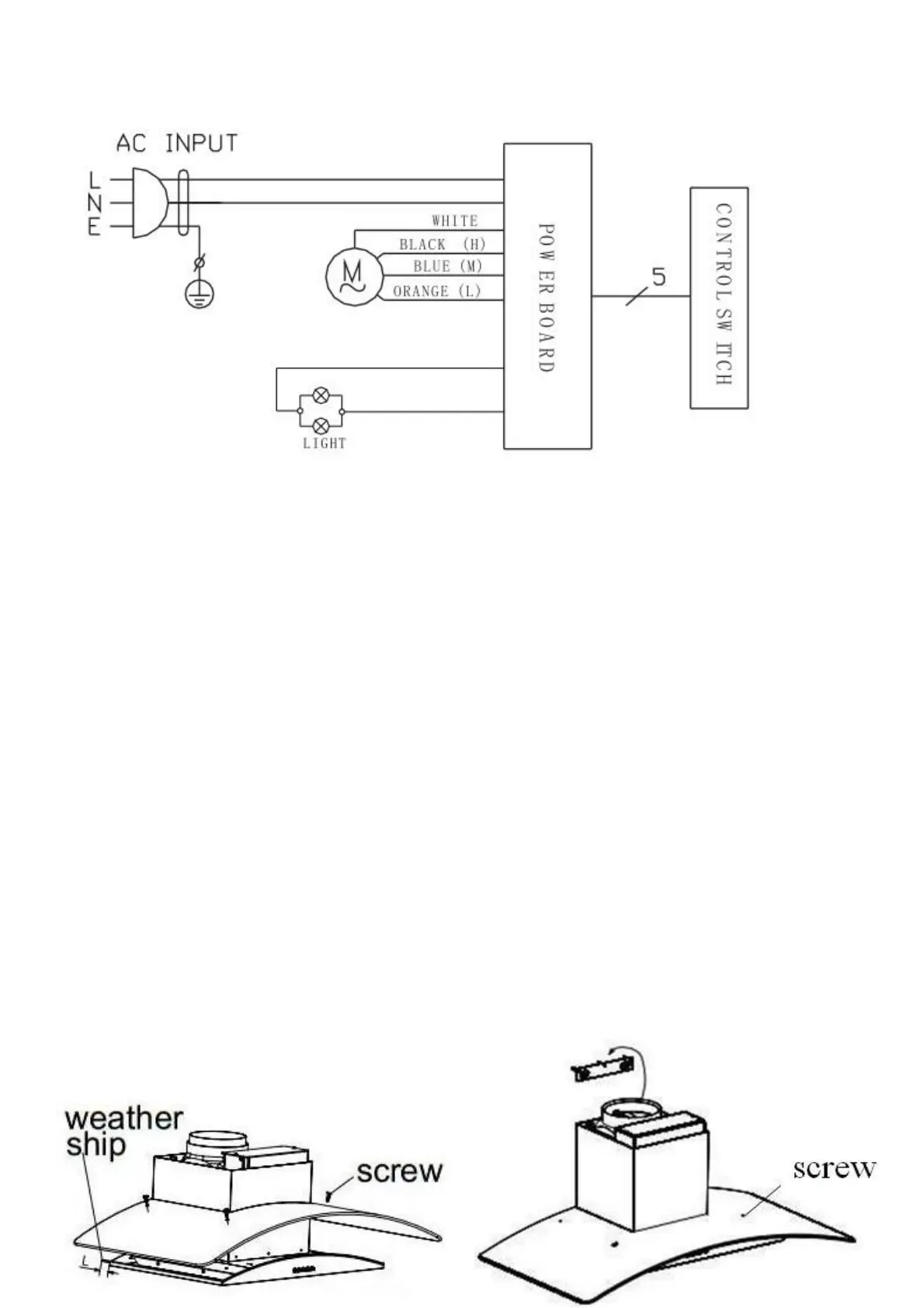

注意：电路图为基础机型电路图，如有不同请以产品说明书上的电路图为准！
Note: the above is the circuit diagram of basic models, please be subject to the circuit
diagram in product instruction book if there is difference.
5. 安装 Installation
5.1 安装前准备 Preparation before Installation
1. 请先拆除包装，然后参照下面说明中的尺寸进行安装。（请妥善处理包装材料）
Please remove the package first, then install according to the dimension in below note; (Please dispose
the packaging material properly)
2. 弧形玻璃烟机，请将机体取出包装后，将弧形玻璃从包装箱中取出，按附图将玻璃安装到整机上。
For arc glass range hood, please take out the arc glass from the packing box after removing the body’s
packing, then install the glass on the hood based on the attached figure.
3. 烟机四周不应接触或临近易燃、易爆、不耐高温的物品。
No inflammable, explosive or non-heat-resistant article should contact or approach around the range hood.
4. 挂置烟机的墙面应具有足够强度且足够平坦，以保证本产品有足够的稳定性。
The wall where the hood hung should have sufficient strength to ensure product’s adequate stability.
弧形玻璃烟机安装玻璃示意图Glass Installation Diagram of Arc Glass Range Hood
