4.UNPACKING WAYS OF MAIN PARTS

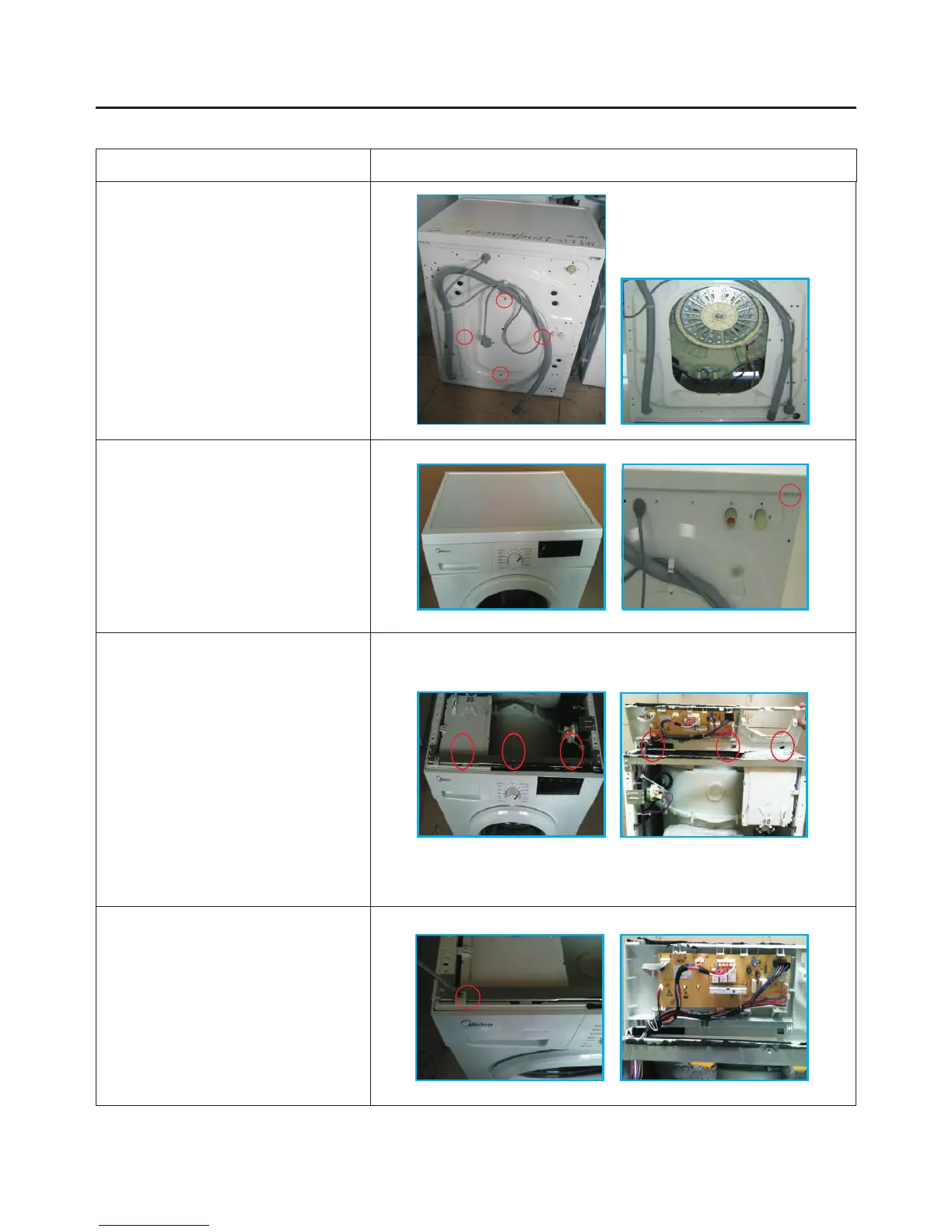

Operation step Picture
1 Undo the back cover
Undo two screws fit
between back plate and
cabinet, and then pull out
the back plate
2 Undo top cover
Undo 2 screws fit
between the top cover and
back cabinet
Push back the top cover
15mm until it leaves away
from, the control panel,
and then take it down.
3 Undo the control panel
Departing the top cover
(means as above)
Draw out the detergent
drawer
Loosen two screws fit
on the control panel
(facial).
Loosen two screws fit
on the control panel(top)
Press three clasps
between top control panel
and panel support.
Take out the control
panel inclined from the
cabinet
.
①
.
②
①
②
③
④
⑤
⑥
.
