P.26

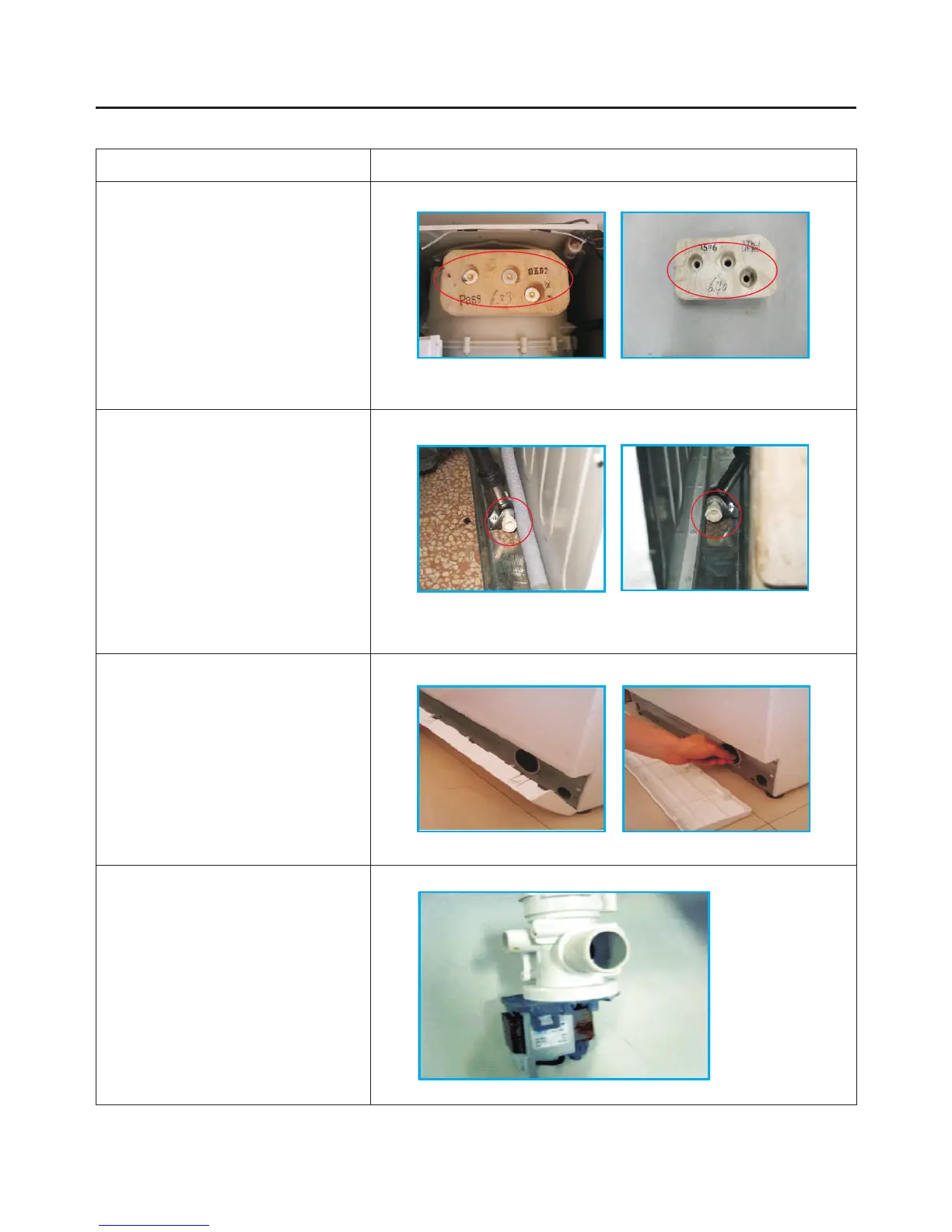

4.UNPACKING WAYS OF MAIN PARTS
Operation step Picture
15 Undo the absorber pin
① Undo the front plate
(methods as followed).
② Use pliers to pinch the
absorber pin’s
protuberance, and knock
the absorber pin out from
back lightly; in the same
way, remove the other one.
16 Undo the filter
① Open the filter cover.
② Rotate the filter knob
anticlockwise, and then
pull
out the filter.
17 Undo the drain pump
① Undo the top cover,
control panel, lower cover
and front plate(methods as
followed).
② Nip out clamp between
the drain hose and the
drain pump, and then pull
out the drain hose.
14 Undo the upper
counterweight
① Undo the top cover
(methods as followed).
② Remove three screws
fit on the upper counterweight
and then pull out the upper
counterweight.
(5.0/6.0/7.0kg counterweight)
(5.0/6.0/7.0kg counterweight)
