Midea l712wmb16 - 2. Tub_assembly

2.Overview of products
P.35
2.Overview of products

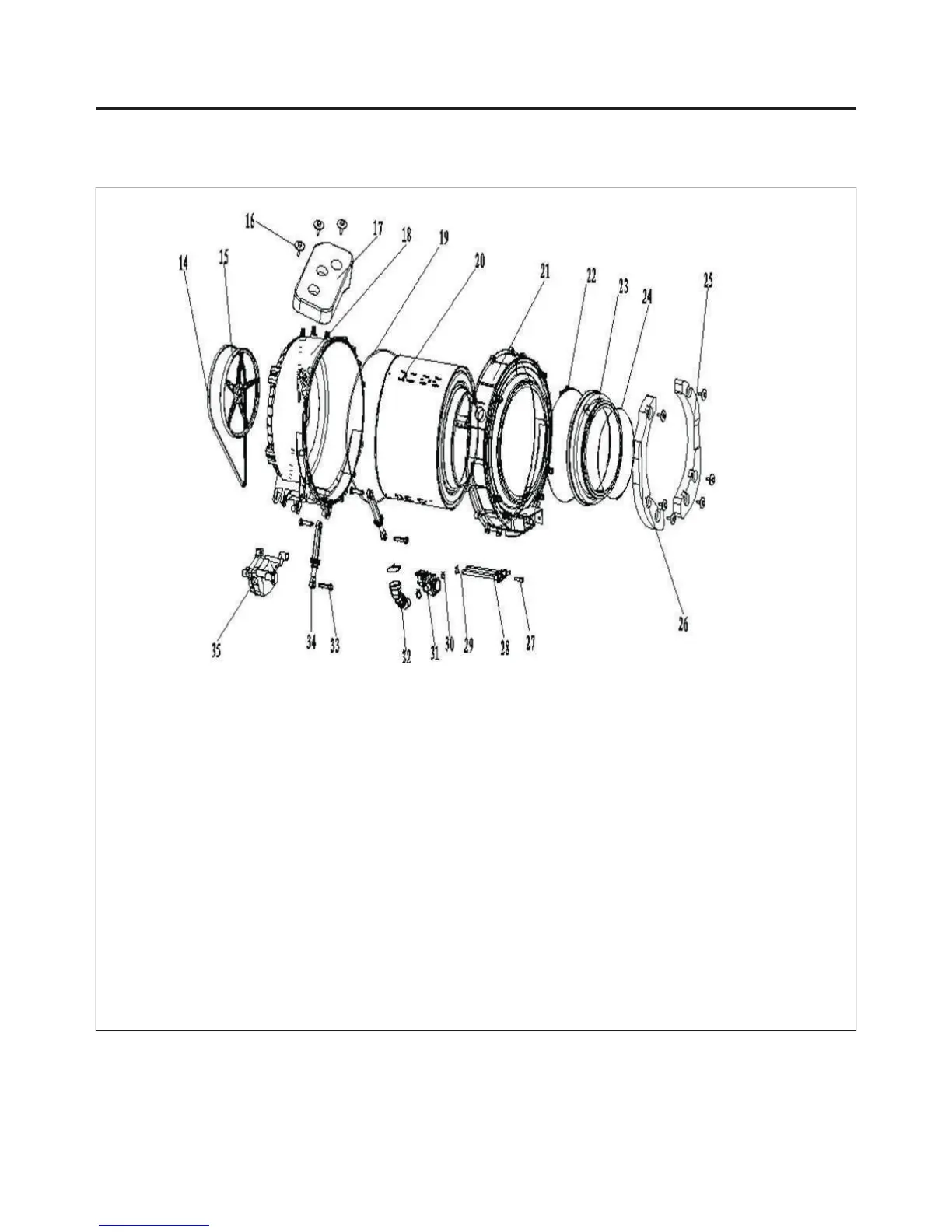

6.EXPLORED VIEW & LIST OF PARTS
2. Tub_assembly
14 Belt
15 Driving_Pulley
16 Screw
17 Upper counterweight
18 Rear Tub
19 Tub_Seal
20 Drum Kit
21 Front_Tub
22 Inner Clamp
23 Gasket
24 Outer Gasket Clamp
25 Front_Right_Counterweight
26 Front_Left_Counterweight
27 NTC
28 Heater
29 Heating Brasket
30 Hose Clamp
31 Pump
32 Tub_Drain_Hose Kit
33 Damper_Pin
34 Damper
35 Motor
